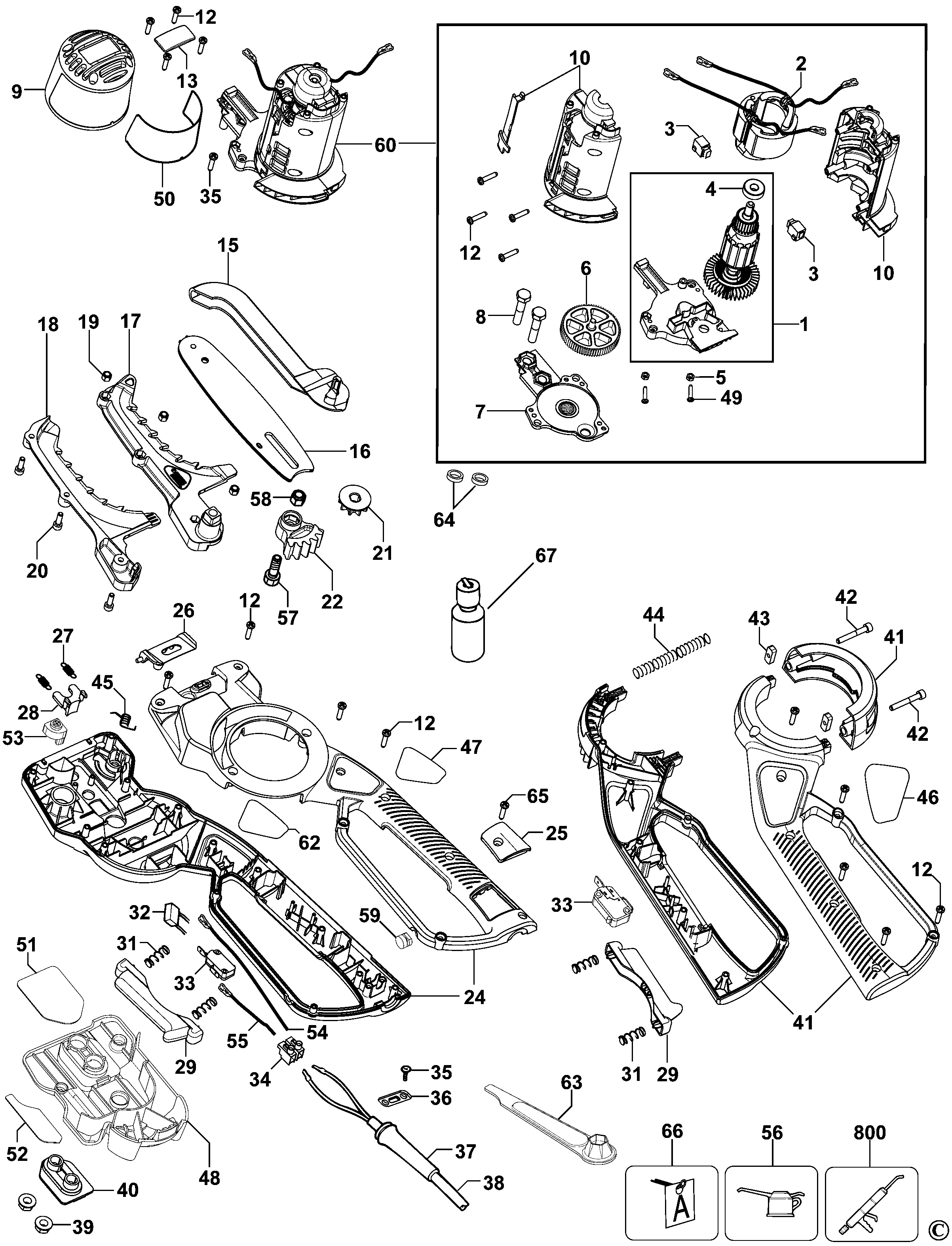

GK1050 POWERED LOPPER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 477791-03 | 1 | ARMATURE SA | GB |  |
||
| 2 | 588660-03 | 1 | FIELD SA | GB | |
||
| 3 | 496839-01 | 2 | BRUSH & HOLDER SA | GB | |
||
| 4 | 605040-06 | 1 | BEARING,BALL | GB |  |
||
| 5 | 330015-01 | 3 | NUT | GB | |
||
| 6 | 477790-00 | 1 | GEAR SA | GB | |
||
| 7 | 477789-00 | 1 | COVER GEARCASE | GB | |
||
| 8 | 588853-00 | 2 | BOLT | M8 x 40mm | GB | |
|
| 9 | 589043-00 | 1 | END CAP | GB | |
||
| 10 | 478846-00 | 1 | MOTOR HOUSING SA | GB | |
||
| 12 | 809961 | 25 | SCREW | GB | |
||
| 13 | 492209-00 | 1 | BRAND LABEL | GB | |
||
| 15 | 587577-00 | 1 | COVER-TOP | GB | |
||
| 16 | N594965 | 1 | BAR CHAIN | 8 INCH | GB | |
|
| 17 | 587587-00 | 1 | JAW | GB | |
||
| 18 | 590089-00 | 1 | JAW | GB | |
||
| 19 | 477344-00 | 3 | NUT M5 | GB | |
||
| 20 | 098120-16 | 3 | SCREW | GB | |
||
| 21 | 587580-00 | 1 | SPROCKET | GB | |
||
| 22 | 588088-00 | 1 | PINION | GB | |
||
| 24 | 590443-01 | 1 | CLAMSHELL SET | Green - Fixed | Inc items 25 - 26 | GB | |
| 25 | 590340-01 | 1 | COVER | Green | GB | |
|
| 26 | 477134-00 | 1 | FILLER CAP | GB | |
||
| 27 | 588830-00 | 2 | SPRING | GB | |
||
| 28 | 588405-00 | 1 | CLAMP | GB | |
||
| 29 | 588034-01 | 2 | ACTUATOR | Orange | GB | |
|
| 31 | 806128 | 4 | SPRING | GB | |
||
| 32 | 479454-00 | 1 | CAPACITOR | GB | |
||
| 33 | 588037-00 | 2 | MICRO SWITCH | GB | |
||
| 34 | 373883 | 1 | TERMINAL BLOCK | GB | |
||
| 35 | 821057 | 4 | SCREW | No 6 x 12.7mm | GB | |
|
| 36 | 821070 | 1 | CORD CLAMP | GB | |
||
| 37 | 770235 | 1 | PROTECTOR | GB | |
||
| 38 | 808240-25 | 1 | CORDSET | 4M | GB | |
|
| 39 | 389118-01 | 2 | NUT | M8 | GB | |
|
| 40 | 588213-00 | 1 | CLAMP | GB | |
||
| 41 | 590444-01 | 1 | CLAMSHELL SET | Green - Moving | GB | |
|
| 42 | 098120-35 | 2 | SCREW | M5 x 35mm | GB | |
|
| 43 | 588711-00 | 2 | PLATE | M5 | GB | |
|
| 44 | 589042-00 | 1 | SPRING | GB | |
||
| 45 | 588367-00 | 1 | SPRING | GB | |
||
| 46 | 479786-02 | 1 | BRAND LABEL | GB | |
||
| 47 | 479787-00 | 1 | BRAND LABEL | GB | |
||
| 48 | 588087-00 | 1 | COVER | GB | |
||
| 49 | 098119-16 | 3 | SCREW | GB | |
||
| 50 | 478364-02 | 1 | RATING PLATE | GB | |
||
| 51 | 479788-00 | 1 | IDENTITY LABEL | GB | |
||
| 52 | 478363-00 | 1 | LABEL | GB | |
||
| 53 | 588739-00 | 1 | SEAL | GB | |
||
| 54 | 588740-00 | 1 | LEADWIRE | GB | |
||
| 55 | 588740-01 | 1 | LEADWIRE | GB | |
||
| 56 | A6023 | 1 | OIL | 1Litre | GB | ||
| 57 | 098123-25 | 1 | SCREW | GB | |
||
| 58 | 370023 | 1 | NUT | M8 | GB | |
|
| 59 | 477925-00 | 1 | BUMPER | GB | |
||
| 60 | 588883-02 | 1 | MOTOR & GEARCASE | GB | |
||
| 62 | 489327-01 | 1 | BRAND LABEL | GB | |
||
| 63 | 590439-00 | 1 | WRENCH SPECIAL | GB | |
||
| 66 | A6150 | 1 | CHAIN | GB | |||
| 67 | 90524942 | 1 | CONTAINER | GB | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | Use 3 grams | GB | |
