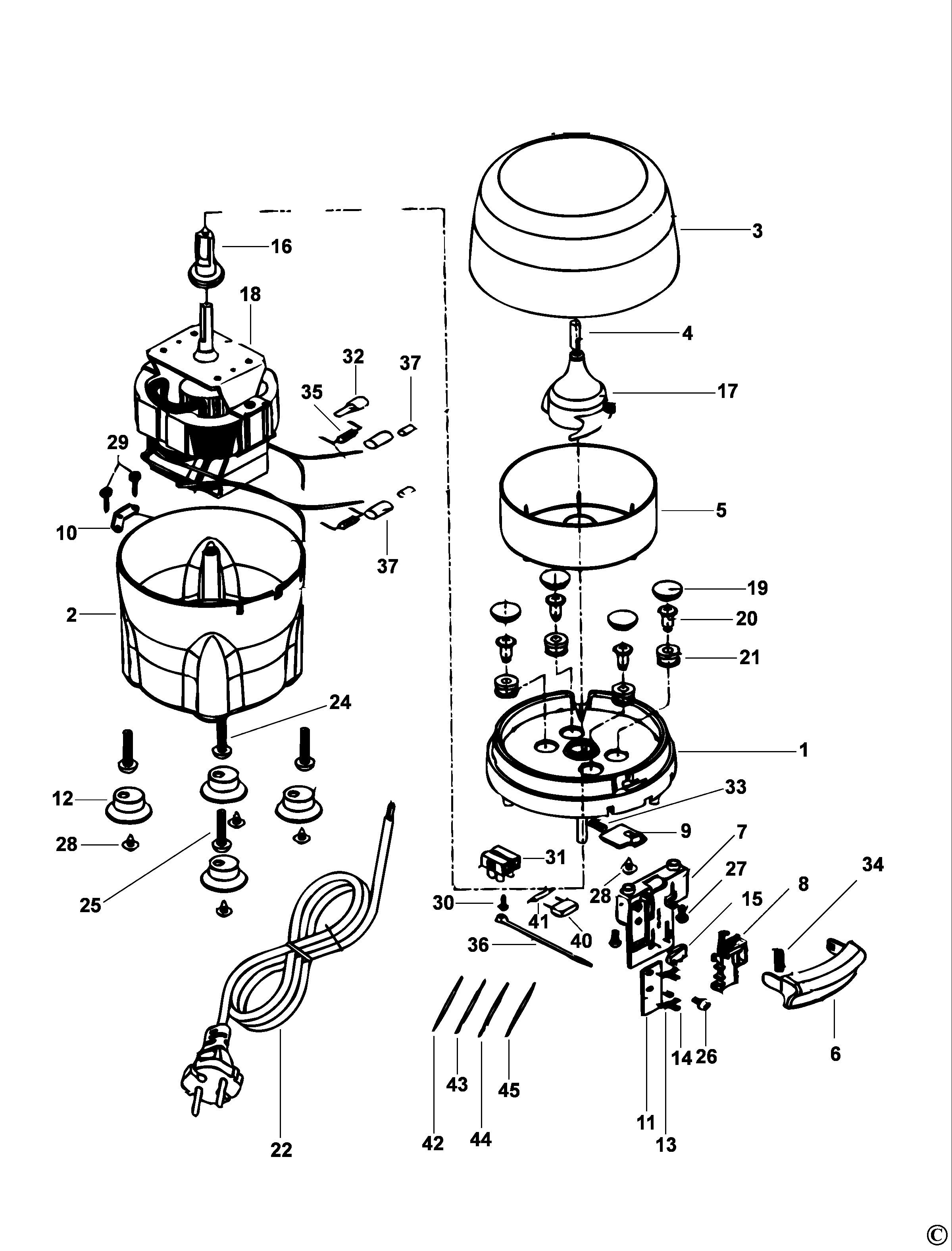

FX300 CHOPPER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010026-01 | 1 | BODY | UPPER | AP-118601 | XJ |  |
| 2 | 6010026-02 | 1 | BASE | AP-118602 | XJ | |
|
| 3 | 6010026-03 | 1 | COVER | AP-118603 | XJ | ||
| 4 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 5 | 6010026-05 | 1 | CONTAINER | AP-118605 | XJ | ||
| 6 | 6010026-06 | 1 | BUTTON | AP-118606 | XJ | |
|
| 7 | 6010026-07 | 1 | BRACKET | SAFETY LOCKING | AP-118607 | XJ | |
| 8 | 6010026-08 | 1 | SHAFT | SAFETY LOCKING SHAFT | AP-118608 | XJ | |
| 9 | 6010026-09 | 1 | PLATE | SAFETY LOCKING PLATE | AP-118609 | XJ | |
| 10 | 6010026-10 | 1 | CORD CLAMP | CORD CLAMP PLATE | AP-118610 | XJ | |
| 11 | 6010026-11 | 1 | PCB | AN-118611 | XJ | |
|
| 12 | 6010026-12 | 1 | FOOT | RUBBER | AP-118612 | XJ | |
| 13 | 6010026-13 | 1 | PLATE | CONTACT PLATE A | AM-118613 | XJ | |
| 14 | 6010026-14 | 1 | PLATE | CONTACT PLATE B | AM-118614 | XJ | |
| 15 | 6010026-15 | 1 | MICRO SWITCH | EE-M12120V | XJ | |
|
| 16 | 6010026-16 | 1 | ADAPTOR | STEM | AP-112801 | XJ | |
| 17 | 6010026-17 | 1 | BLADE | AM-112819 | XJ | |
|
| 18 | 6010026-18 | 1 | MOTOR | ER-1128V1 | XJ | |
|
| 19 | 6010002-03 | 1 | COVER | SCREW COVER | AP-089803 | XJ | |
| 20 | 6010006-03 | 1 | SCREW | CD-M50L12 | XJ | ||
| 21 | 6010002-04 | 1 | SHOCK ABSORBER | AN-039815 | XJ | |
|
| 22 | 6010006-16 | 1 | CORDSET | EG-J65CE1 | XJ | |
|
| 24 | 6010002-22 | 1 | SCREW | CD-S35B12 | XJ | ||
| 25 | 6010002-23 | 1 | SCREW | CD-P35B12 | XJ | ||
| 26 | 6010026-26 | 1 | SCREW | CD-S30A08 | XJ | ||
| 27 | 6010026-27 | 1 | SCREW | CD-S30A06 | XJ | ||
| 28 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 29 | 6010002-20 | 1 | SCREW | CD-S30J14 | XJ | ||
| 30 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 31 | 6010002-35 | 1 | TERMINAL BLOCK | EM-F02202 | XJ | ||
| 32 | 6010026-32 | 1 | CONNECTOR | WIRE CONNECTOR | EM-D02201 | XJ | |
| 33 | 6010002-19 | 1 | SPRING | SAFETY SWITCH SPRING | AM-112823 | XJ | |
| 34 | 6010026-34 | 1 | SPRING | SLIDING PLATE SPRING | AM-180021 | XJ | |
| 35 | 6010026-35 | 1 | CHOKE | CHOKE COIL | EI-190051 | XJ | |
| 36 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 37 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 40 | 6010006-26 | 1 | CAPACITOR | EC-M68225 | XJ | ||
| 41 | 6010002-30 | 1 | RESISTOR | EB-475G02 | XJ | ||
| 42 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 43 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 44 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 45 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ |
