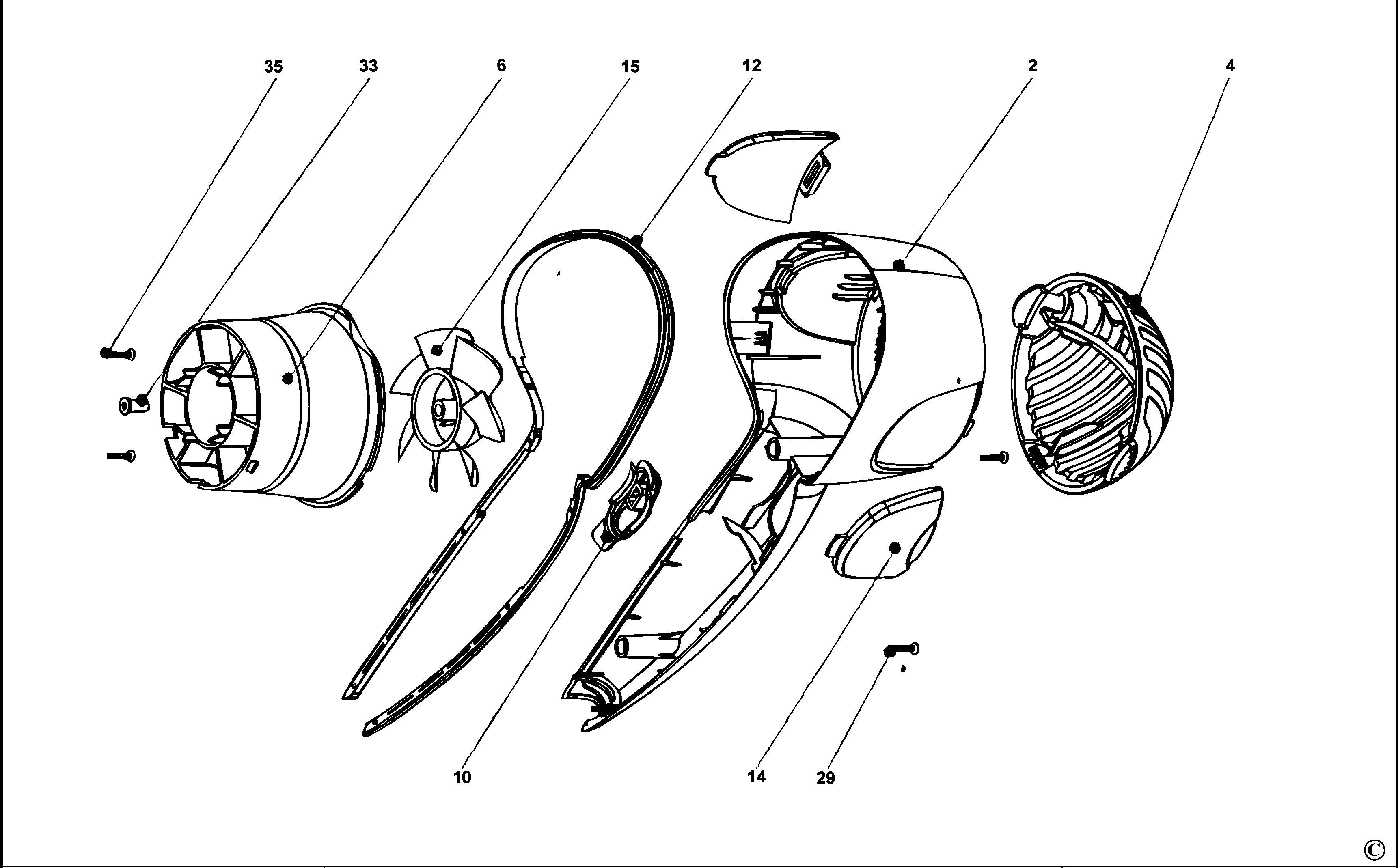

PX5 HAIRDRYER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010048-01 | 1 | HOUSING FRONT | PX5-1 | XJ |  |
|
| 2 | 6010048-02 | 1 | HOUSING REAR | PX5-2 | XJ | |
|
| 3 | 6010048-03 | 1 | HANDLE COVER | PX5-3 | XJ | ||
| 4 | 6010048-04 | 1 | INLET | PX5-4 | XJ | ||
| 5 | 6010048-05 | 1 | HOUSING | HEATER CABINET | PX5-5 | XJ | |
| 6 | 6010048-06 | 1 | HOUSING MOTOR | PX5-6 | XJ | ||
| 7 | 6010048-07 | 1 | NOZZLE | CONECTRATOR | PX5-7 | XJ | |
| 8 | 6010048-08 | 1 | BUTTON | COOL SHOT | PX5-8 | XJ | |
| 9 | 6010048-09 | 1 | SPACER | PX5-9 | XJ | ||
| 10 | 6010048-10 | 1 | COVER | PX5-10 | XJ | ||
| 11 | 6010048-11 | 1 | COVER | SWITCH COVER 2 | PX5-11 | XJ | |
| 12 | 6010048-12 | 1 | SEAL | PVC BAND | PX5-12 | XJ | |
| 13 | 6010048-13 | 1 | BUSHING | CORD | PX5-13 | XJ | |
| 14 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 15 | 6010048-15 | 1 | FAN | PX5-15 | XJ | |
|
| 16 | 6010048-16 | 1 | FRAME | PX5-16 | XJ | ||
| 17 | 6010048-17 | 1 | COVER | OUTLER GRILL | PX5-17 | XJ | |
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 21 | 6010048-21 | 1 | MOTOR | PX5-21 | XJ | ||
| 22 | 6010048-22 | 1 | THERMOSTAT | PX5-22 | XJ | ||
| 23 | 6010048-23 | 1 | DIODE | PX5-23 | XJ | ||
| 28 | 6010048-28 | 1 | CORDSET | 230V | PX5-28 | XJ | |
| 28 | 6010048-27 | 1 | CORDSET | 115V | PX5-28A | XJ | |
| 29 | 6010048-29 | 1 | SCREW | PX5-29 | XJ | ||
| 30 | 6010048-30 | 1 | SCREW | PX5-30 | XJ | ||
| 31 | 6010048-31 | 1 | SWITCH | PX5-31 | XJ | |
|
| 32 | 6010048-32 | 1 | SHIELD | METAL CROSS | PX5-32 | XJ | |
| 33 | 6010048-33 | 1 | BUSHING | METAL | PX5-33 | XJ | |
| 34 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 35 | 6010048-35 | 1 | CORD | GLASS FIBRE CORD | PX5-35 | XJ | |
| 36 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 39 | 6010048-39 | 1 | DIFFUSER | PX5-37/38/39 | XJ | ||
| 40 | 6010048-40 | 1 | SWITCH | PX5-40 | XJ | ||
| 41 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 42 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 43 | 6010048-43 | 1 | HEATER SA | HEATER + MOTOR ASSY | PX5-43 | XJ | |
| 43 | 6010048-44 | 1 | MOTOR SA | HEATER + MOTOR ASSY | PX5-43A | XJ |
