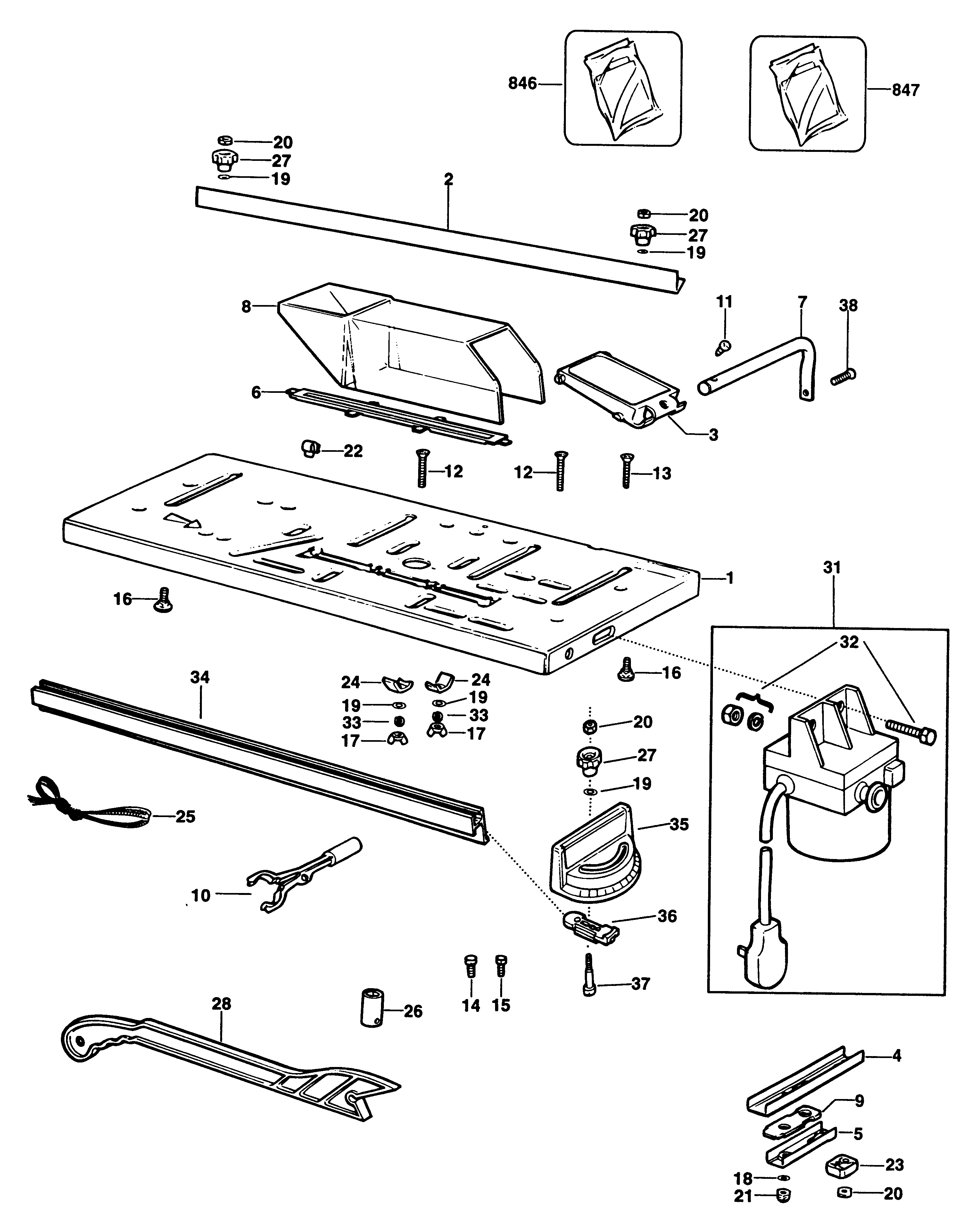

X40350 POWER TOOL TABLE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 298689 | 1 | BASEPLATE | XJ |  |
||
| 2 | 298069 | 1 | RIP FENCE | XJ | |
||
| 3 | 298690 | 1 | ARM | XJ | |
||
| 4 | 298066 | 2 | BRACKET | XJ | |
||
| 5 | 299327 | 2 | BRACKET | XJ | |
||
| 6 | 298068 | 1 | INSERT | XJ | |
||
| 7 | 298067 | 1 | TUBE | XJ | |
||
| 8 | 298070 | 1 | GUARD | XJ | |
||
| 9 | 288664 | 2 | SPACER | XJ | |
||
| 10 | 911775 | 1 | LOCKING DEVICE | XJ | |
||
| 11 | 297990 | 1 | SCREW | XJ | |
||
| 12 | 289260 | 6 | SCREW | XJ | |
||
| 13 | 298713 | 4 | SCREW | XJ | |
||
| 14 | 299334 | 2 | SCREW | XJ | |
||
| 16 | 288989 | 2 | SCREW | XJ | |
||
| 17 | 896288 | 4 | NUT WING | XJ | |
||
| 18 | 829744 | 2 | WASHER M8 | XJ | |
||
| 19 | 894569 | 7 | WASHER M6 | XJ | |
||
| 20 | 893261 | 5 | NUT M6 | XJ | |
||
| 21 | 817137 | 4 | NUT | XJ | |
||
| 22 | 298072 | 1 | CLIP CABLE | XJ | |
||
| 23 | 298064 | 2 | FOOT | XJ | |
||
| 24 | 298071 | 4 | CLAMP | XJ | |
||
| 25 | 817238 | 1 | CORD | XJ | |
||
| 26 | 723742 | 1 | SOCKET | XJ |  |
||
| 27 | 817186 | 3 | KNOB | XJ | |
||
| 28 | 298489 | 1 | PUSHROD | XJ | |
||
| 31 | 352310 | 1 | SWITCH SA | XJ | |
||
| 32 | 298714 | 1 | PARTS PACK | XJ | |
||
| 34 | 352312 | 1 | GUIDE FENCE | XJ | |
||
| 35 | 352370 | 1 | MITRE FENCE | XJ | |
||
| 36 | 352313 | 1 | GUIDE BLOCK | XJ | |
||
| 37 | 807458 | 1 | BOLT | XJ | |
||
| 38 | 817213 | 1 | SCREW | XJ | |
||
| 846 | 352372 | 1 | PARTS PACK | XJ | |
||
| 847 | 352371 | 1 | PARTS PACK | XJ | |
