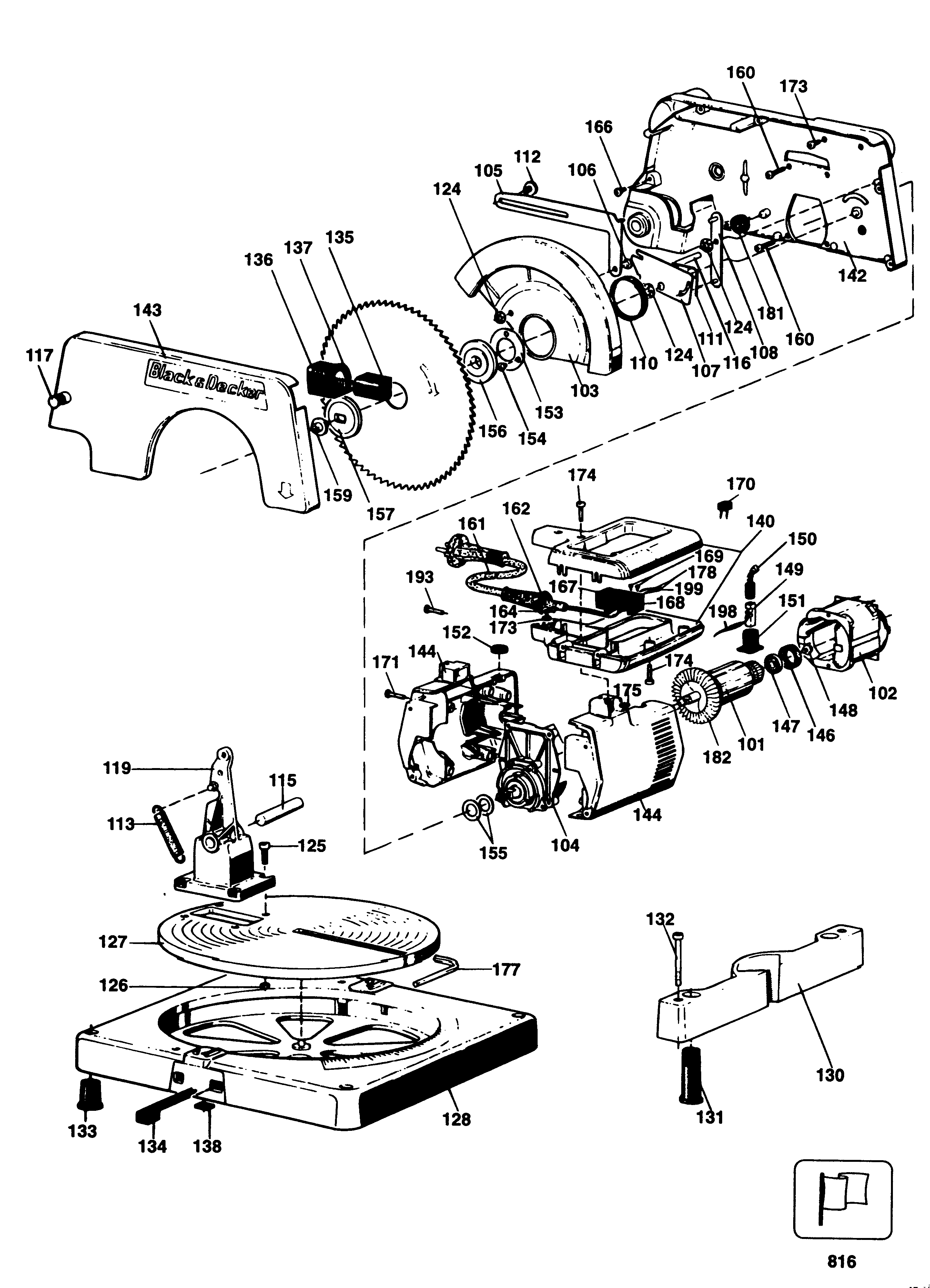

KS800 MITRE SAW Type 1-2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 368877-01 | 1 | ARMATURE SA | GB |  |
||
| 102 | 373008-03 | 1 | FIELD 230V | GB | |
||
| 103 | 879741-01 | 1 | GUARD | GB | |
||
| 104 | 376826 | 1 | GEARCASE SA | GB | |
||
| 105 | 911784 | 1 | LEVER | GB | |
||
| 106 | 870091 | 1 | RIVET | GB | |
||
| 107 | 911794 | 1 | BAR | GB | |
||
| 108 | 911984 | 1 | BAR | GB | |
||
| 110 | 911891 | 1 | RING | GB | |
||
| 111 | 911946 | 1 | SPRING | GB | |
||
| 112 | 324776-00 | 1 | SCREW | GB | |
||
| 113 | 870049 | 2 | SPRING | GB | |
||
| 115 | 376649 | 2 | ROD | GB | |
||
| 116 | 911825 | 1 | ROD | GB | |
||
| 117 | 879742-49 | 1 | LOCKING DEVICE | GB | |
||
| 119 | 368640 | 1 | BLOCK | GB | |
||
| 124 | 916105 | 3 | RING | GB | |
||
| 125 | 911281 | 4 | SCREW | GB | |||
| 126 | 911018 | 4 | NUT | GB | |
||
| 127 | 320568-01 | 1 | TABLE TURN | GB | |
||
| 128 | 873296-49 | 1 | BASEPLATE | GB | |
||
| 130 | 322557 | 1 | FENCE | GB | |
||
| 131 | 322444 | 2 | ADJUSTER | GB | |
||
| 132 | 911880 | 2 | SCREW | GB | |
||
| 133 | 911972 | 4 | FOOT | GB | |
||
| 134 | 911936 | 1 | TRIGGER | GB | |
||
| 135 | 322446 | 1 | KNOB | GB | |
||
| 136 | 870008 | 1 | SLIDER | GB | |
||
| 137 | 871676 | 1 | SPRING | GB | |
||
| 138 | 918405 | 2 | PLATE | GB |  |
||
| 140 | 573270-00 | 1 | CLAMSHELL PAIR | GB | |
||
| 142 | 325832-00 | 1 | GUARD | TYPE 1 | GB | |
|
| 143 | 325833-00 | 1 | GUARD | GB | |
||
| 144 | 376540 | 1 | HOUSING SA | GB | |
||
| 146 | 870052 | 1 | SLEEVE | GB | |
||
| 147 | 330003-31 | 1 | BEARING | GB | |
||
| 148 | 911276 | 1 | SCREW | GB | |
||
| 149 | 321337 | 2 | BRUSH HOLDER | GB | |
||
| 150 | 321338 | 2 | BRUSH SA 230V | GB | |
||
| 151 | 321328 | 2 | INSERT | GB | |
||
| 152 | 321345 | 2 | BRUSH CAP | GB | |
||
| 153 | 914632 | 1 | COVERPLATE | GB | |||
| 154 | 911246 | 3 | SCREW | GB | |
||
| 155 | 910623 | 1 | WASHER | GB | |
||
| 156 | 376716 | 1 | INNER FLANGE | GB | |
||
| 157 | 911795 | 1 | FLANGE | GB | |
||
| 159 | 874177 | 1 | SCREW | GB | |
||
| 160 | 324006-02 | 4 | SCREW | TYPE 1 | GB | |
|
| 160 | 372748-02 | 4 | SCREW | TYPE 2 | GB | |
|
| 161 | 799334-12 | 1 | CORDSET | GB | |
||
| 162 | 916968 | 1 | CORD PROTECTOR | GB | |
||
| 164 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 166 | 372748-00 | 6 | SCREW | M4 x 12 | TYPE 2 | GB | |
| 166 | 324006-00 | 6 | SCREW | TYPE 1 | GB | |
|
| 167 | 873285 | 1 | CAP | GB | |
||
| 168 | 911726-S | 1 | SWITCH | GB | |
||
| 169 | 911026 | 4 | SCREW | GB | |
||
| 170 | 807285-01 | 1 | CAPACITOR | GB | |
||
| 171 | 832530 | 3 | SCREW | TYPE 2 | GB | |
|
| 171 | 911325 | 3 | SCREW | TYPE 1 | GB | |
|
| 173 | 894748 | 4 | O RING | GB | |
||
| 174 | 911878 | 2 | SCREW | GB | |
||
| 175 | 911521 | 2 | NUT | GB | |
||
| 177 | 098000-11 | 1 | HEX KEY | GB | |
||
| 178 | 879775 | 1 | WIRE | GB | |
||
| 181 | 873112 | 1 | RUBBER | TYPE 1 | GB | |
|
| 181 | 873112-01 | 1 | RUBBER | TYPE 2 | GB | |
|
| 182 | 918865-00 | 1 | FAN | GB | |
||
| 193 | 330065-08 | 6 | SCREW | M4x18 T20 | GB | |
|
| 198 | 321354 | 2 | LEAD 70MM | GB | |
||
| 199 | 878846 | 1 | LEAD 360MM | GB | |
||
| 816 | 326880-01 | 1 | BRAND LABEL | GB | |
