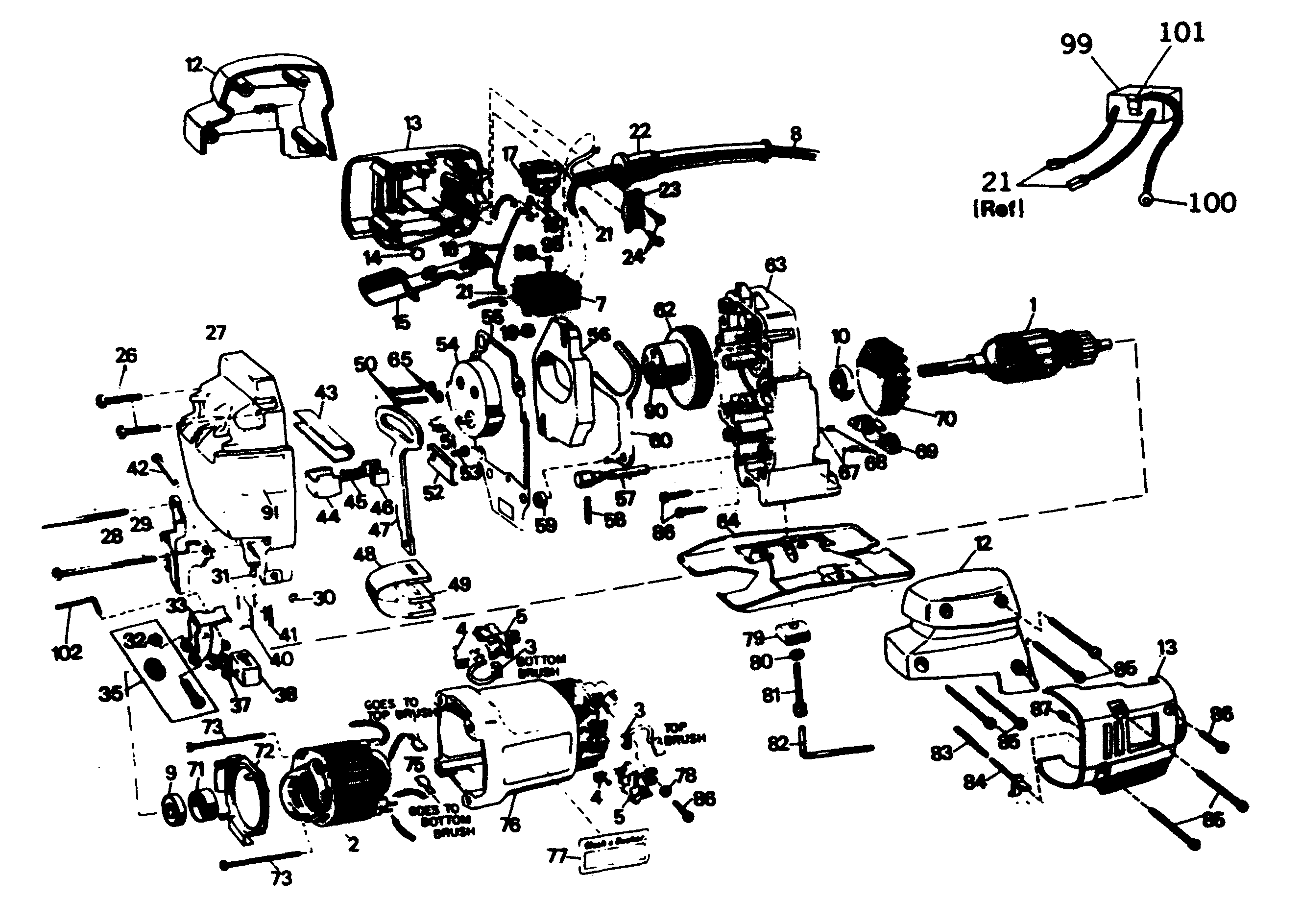

HD3159 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 447745-75 | 1 | FIELD | FR Only | XJ |  |
|
| 2 | 447745-71 | 1 | FIELD 115V | 115 VOLT | XJ | ||
| 3 | 133797-00 | 2 | BRUSH | XJ | |
||
| 4 | 133783-00 | 2 | SPRING | XJ | |
||
| 8 | 93548-21 | 1 | CORDSET (EURO) | FR Only | XJ | |
|
| 9 | N110358 | 1 | BEARING | All Mkts Except FR | XJ |  |
|
| 9 | 605040-06 | 1 | BEARING,BALL | FR Only | XJ | |
|
| 10 | 605040-06 | 1 | BEARING,BALL | XJ | |
||
| 12 | 448806-00 | 1 | GRIP | FR Only | XJ | |
|
| 12 | 448806-00 | 1 | GRIP | All Mkts Except FR | XJ | |
|
| 13 | 444726-04 | 1 | END CAP | FR Only | XJ | |
|
| 14 | 050050-00 | 1 | RING | FR Only | XJ | |
|
| 16 | 21286-00 | 1 | SPRING | XJ | |
||
| 18 | 400166-02 | 1 | TERMINAL | TYPE 1 | XJ | |
|
| 21 | 64787-00 | 4 | TERMINAL | XJ | |
||
| 22 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 22 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 24 | 330013-03 | 2 | SCREW | XJ | |
||
| 26 | 330045-08 | 2 | SCREW | XJ | |
||
| 27 | 133775-03 | 1 | GEARCASE COVER | XJ | |
||
| 30 | 133825-00 | 1 | CLIP | XJ | |
||
| 32 | 98155-03 | 1 | NUT | XJ | |
||
| 33 | 608389-00 | 1 | BRACKET | XJ | |
||
| 35 | 608389-00 | 1 | BRACKET | XJ | |
||
| 36 | 33984-00 | 1 | SCREW | FR Only | XJ | |
|
| 36 | 445405-00 | 1 | SCREW | All Mkts Except FR | XJ | |
|
| 37 | 330022-16 | 1 | SCREW | XJ | |
||
| 38 | 444520-00 | 1 | BLADE CLAMP | XJ | |
||
| 40 | 133751-00 | 1 | SHIELD | XJ | |
||
| 41 | 133755-00 | 1 | SEAL | XJ | |
||
| 42 | 133820-00 | 1 | PIN | XJ | |
||
| 45 | 49161-00 | 1 | SPRING | XJ | |
||
| 46 | 133756-00 | 1 | BEARING | XJ | |
||
| 47 | 445387-00 | 1 | BAR | XJ | |
||
| 48 | 450285-00 | 1 | PLATE | XJ | |
||
| 49 | 133807-00 | 1 | SEAL | XJ | |
||
| 50 | 98022-26 | 2 | SCREW | TYPE 2 | XJ | |
|
| 51 | 620203-00 | 1 | ROLLER | XJ | |
||
| 52 | 133844-00 | 1 | BEARING | XJ | |
||
| 53 | 330045-05 | 1 | SCREW | XJ | |
||
| 54 | 133828-01SV | 1 | PLATE | TYPE 1 | XJ | |
|
| 54 | 133828-01SV | 1 | PLATE | TYPE 2 | XJ | |
|
| 55 | 133765-00 | 1 | GASKET | XJ | |
||
| 56 | 133761-00 | 1 | WEIGHT | XJ | |
||
| 58 | 98185-20 | 1 | PIN | XJ | |
||
| 59 | 330015-07 | 1 | WASHER | M5x0.8 | XJ | |
|
| 60 | 133799-00 | 1 | FORK | XJ | |
||
| 62 | 133827-02SV | 1 | GEAR SA | TYPE 1 | XJ | |
|
| 62 | 133827-02SV | 1 | GEAR SA | TYPE 2 | XJ | |
|
| 63 | 133771-06 | 1 | GEARCASE | FR Only | XJ | ||
| 64 | 133770-00 | 1 | SHOE | XJ | |
||
| 65 | 445687-00 | 1 | WASHER | TYPE 1 | XJ | |
|
| 65 | 445687-00 | 2 | WASHER | TYPE 2 | XJ | |
|
| 67 | 000475-00 | 2 | BALL STEEL | XJ | |
||
| 68 | 51658-00 | 2 | SPRING | XJ | |
||
| 75 | 133835-01 | 2 | TERMINAL | XJ | |
||
| 78 | 99361-10 | 1 | WASHER | FR Only | XJ | |
|
| 79 | 133750-00 | 1 | CLAMP | XJ | |
||
| 80 | 098198-05 | 1 | WASHER | LOCK, M6 | XJ | |
|
| 81 | 932318 | 1 | SCREW | XJ | |||
| 82 | 098000-11 | 1 | HEX KEY | XJ | |
||
| 85 | 95048-00 | 6 | SCREW | XJ | |
||
| 87 | 95114-00 | 1 | PLUG | XJ | |||
| 90 | 330004-06 | 2 | BEARING NEEDLE | XJ | |
||
| 99 | 134230-01 | 1 | CAPACITOR | XJ | |||
| 101 | 680131-01 | 1 | TERMINAL | XJ | |
||
| 102 | 99056-04 | 1 | SPANNER BLADE | 1/8 INCH | XJ | |
