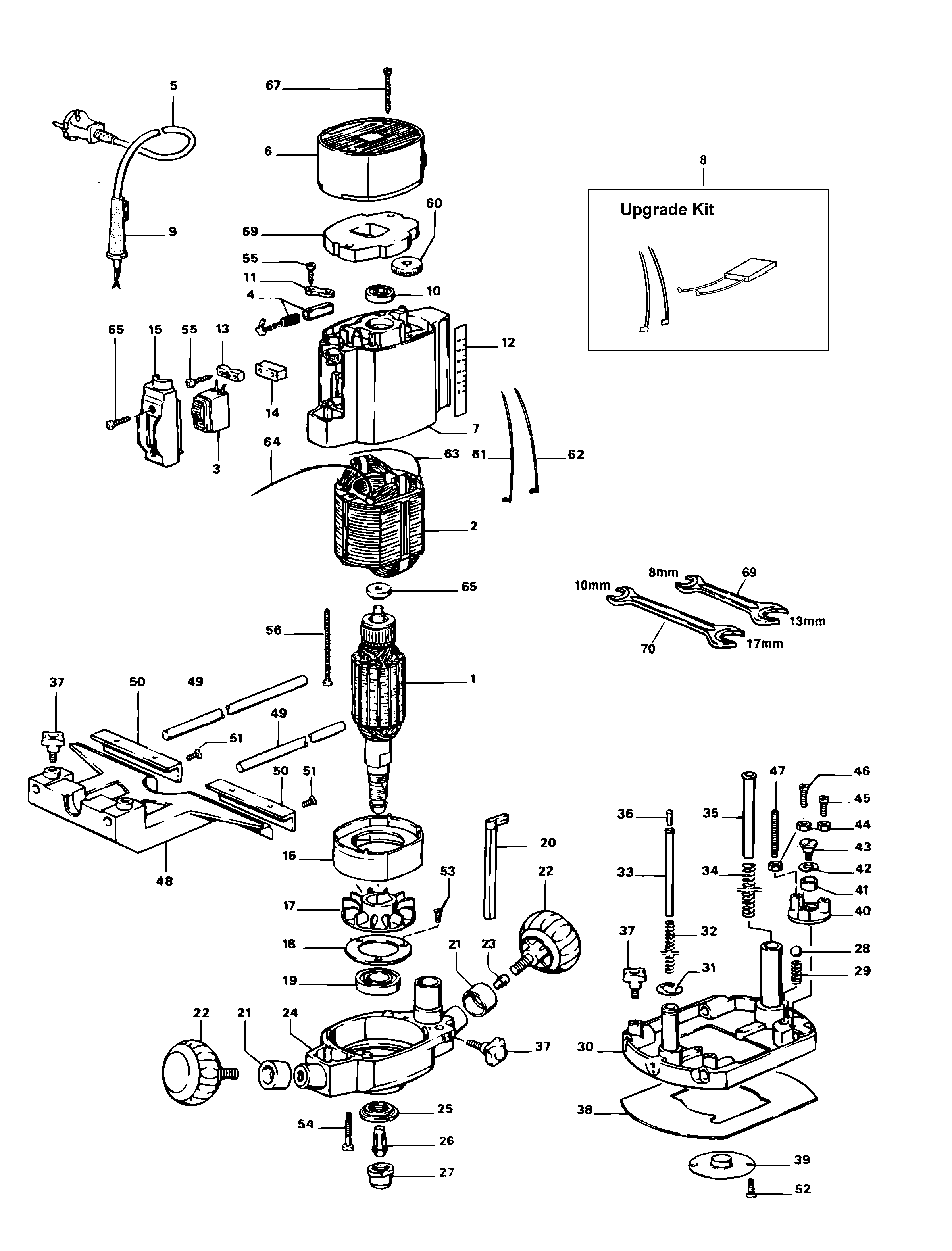

MOF96E ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868627-02 | 1 | ARMATURE | 115 VOLT | GB |  |
|
| 1 | 868627-00 | 1 | ARMATURE 230V | 220 VOLT | GB | |
|
| 2 | 096102105 | 1 | FIELD 220V | 220 VOLT | GB | |
|
| 3 | N566709 | 1 | SWITCH | GB |  |
||
| 4 | 248447-11 | 2 | BRUSH & HOLDER SA | 115 VOLT | GB | |
|
| 4 | 247533-11 | 2 | BRUSH & HOLDER 230V | 220 VOLT | GB | |
|
| 5 | 096101907 | 1 | CABLE | M | GB | |
|
| 5 | 868097-00 | 1 | CABLE | M | GB | |
|
| 5 | 868068-00 | 1 | CABLE | M | GB | |
|
| 6 | 249026-00 | 1 | COVER BRUSH | GB | |
||
| 7 | 943047-01 | 1 | FIELDCASE | GB | |
||
| 8 | 581285-00 | 1 | SUPPRESSOR | GB | |
||
| 9 | 868520-00 | 1 | CORD PROTECTOR | GB | |
||
| 10 | N110358 | 1 | BEARING | GB | |
||
| 11 | 868069-00 | 2 | CLAMP | GB | |
||
| 12 | 249278-00 | 1 | SCALE | GB | |
||
| 13 | 576118-00 | 1 | CORD CLAMP | GB | |
||
| 14 | 096120703 | 1 | GUIDE | GB | |
||
| 15 | 247700-01 | 1 | COVER | GB | |
||
| 16 | 868522-00 | 1 | BAFFLE FAN | GB | |
||
| 17 | 943054-00 | 1 | FAN | GB | |
||
| 18 | 868047-00 | 1 | PLATE | GB | |
||
| 19 | 868768-16 | 1 | BEARING | GB | |
||
| 20 | 868523-01 | 1 | DEPTH STOP | GB | |
||
| 21 | 249108-00 | 2 | BUSH | GB | |
||
| 22 | 869284-05 | 2 | HANDLE SA | GB | |
||
| 23 | 869284-23 | 1 | KNOB SA | GB | |
||
| 24 | 248954-00 | 1 | HOUSING LOWER | GB | |
||
| 25 | 868052-00 | 1 | NUT | GB | |
||
| 27 | 326286-00 | 1 | COLLET & NUT SA | 8mm | GB | |
|
| 27 | 326286-01 | 1 | COLLET & NUT SA | 6.35mm 1/4 inch | GB | |
|
| 28 | 720664-00 | 1 | BALL | GB | |
||
| 29 | 868082-00 | 1 | SPRING | GB | |
||
| 30 | 868613-00 | 1 | BASEPLATE SA | GB | |
||
| 31 | 943032-00 | 1 | CIRCLIP | GB | |
||
| 32 | 096934010 | 1 | SPRING | GB | |
||
| 33 | 096815201 | 1 | ROD | GB | |
||
| 34 | 096934007 | 1 | SPRING | GB | |
||
| 35 | 868566-00 | 1 | ROD | GB | |
||
| 36 | 096815000 | 1 | RIVET | GB | |
||
| 37 | 025922908 | 5 | KNOB | GB | |
||
| 38 | 096120702 | 1 | BASE | GB | |
||
| 40 | 720674-01 | 1 | TURRET | GB | |
||
| 41 | 868092-00 | 1 | WASHER | GB | |
||
| 42 | 860658-01 | 1 | WASHER | GB | |
||
| 43 | 249432-00 | 1 | SCREW | GB | |
||
| 44 | 860083-02 | 3 | NUT | GB | |
||
| 45 | 942931-02 | 1 | SCREW.TEMP | GB | |
||
| 46 | 942931-01 | 1 | SCREW | GB | |
||
| 47 | 868109-00 | 1 | SCREW | GB | |
||
| 48 | 948651-00 | 1 | FENCE SA | GB | |
||
| 49 | 868080-00 | 2 | ROD | GB | |
||
| 50 | 249090-00 | 2 | GUIDE | GB | |
||
| 51 | 720685-00 | 2 | SCREW.TEMP | GB | |
||
| 52 | 249412-20 | 2 | SCREW | GB | |
||
| 53 | 860205-04 | 3 | SCREW | GB | |
||
| 54 | 249416-10 | 4 | SCREW | GB | |
||
| 55 | 949896-12 | 8 | SCREW | GB | |
||
| 56 | 868528-00 | 2 | SCREW | GB | |
||
| 59 | 868529-04 | 1 | SPEED REGULATOR | GB | |
||
| 60 | 249067-01 | 1 | WHEEL | GB | |
||
| 61 | 868530-00 | 1 | LEAD BROWN | 115mm | GB | |
|
| 62 | 868530-01 | 1 | LEAD RED | 120MM | GB | |
|
| 63 | 868530-06 | 1 | LEAD BROWN | 130mm | GB | |
|
| 64 | 868530-03 | 1 | LEAD BLUE | 65MM | GB | |
|
| 65 | 868141-00 | 1 | POLE PIECE | GB | |
||
| 67 | 949896-12 | 2 | SCREW | GB | |
||
| 69 | 868078-00 | 1 | SPANNER | GB | |
||
| 69 | 868078-00 | 1 | SPANNER | GB | |
||
| 70 | 941580-00 | 1 | SPANNER 13-17MM | GB | |
