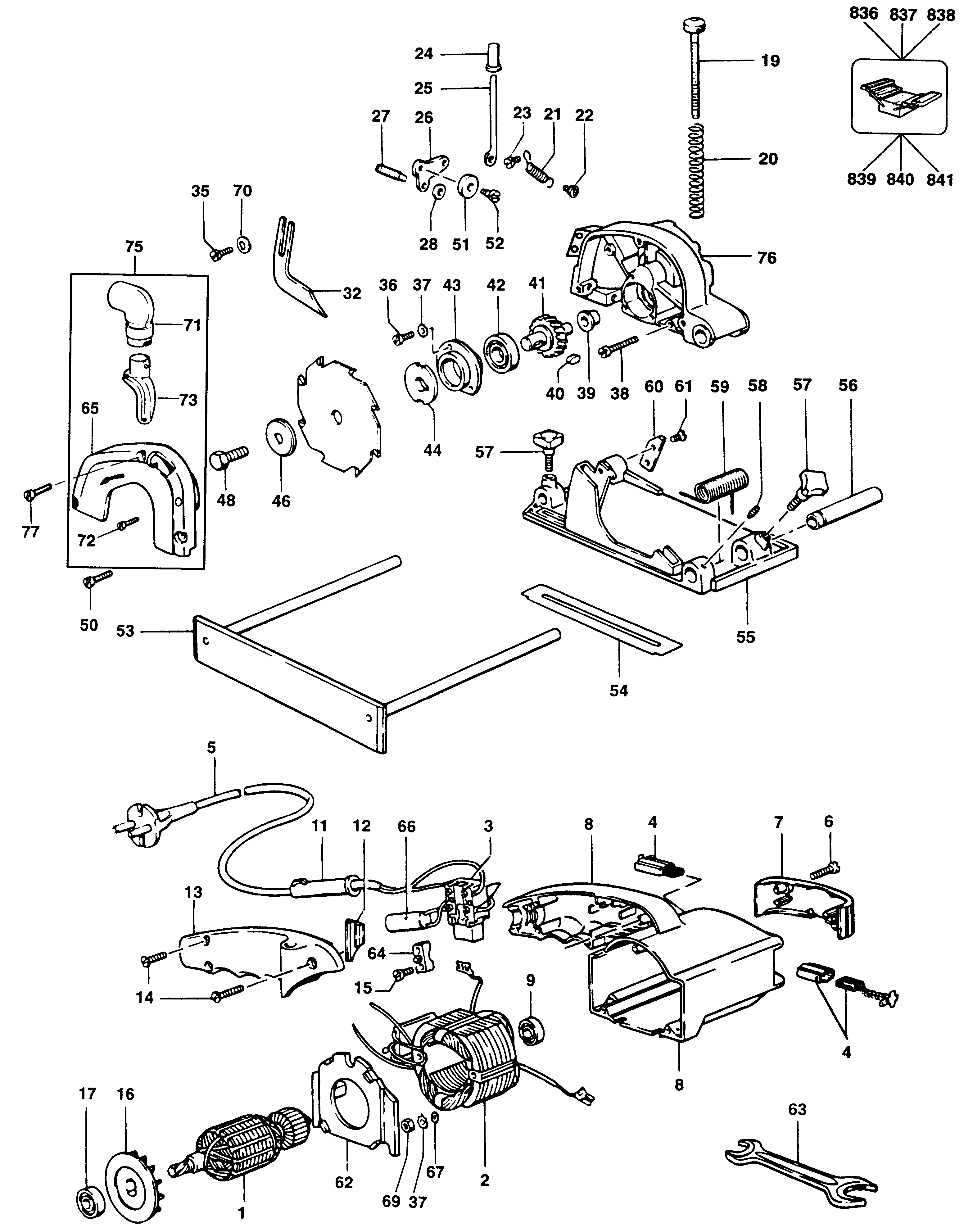

MH25 MINI RIP SAW Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 025102104 | 1 | STATOR 220V | GB |  |
||
| 3 | 864720-05 | 1 | SWITCH | GB | |||
| 4 | 247533-11 | 2 | BRUSH & HOLDER 230V | GB |  |
||
| 5 | 379092 | 1 | CORDSET | GB | |
||
| 6 | 760978-01 | 2 | SCREW | GB | |
||
| 7 | 249001-00 | 1 | COVER | GB | |
||
| 8 | 249000-00 | 1 | HOUSING | GB | |
||
| 9 | N110358 | 1 | BEARING | GB | |
||
| 11 | 868520-00 | 1 | CORD PROTECTOR | GB | |
||
| 12 | 025161101 | 1 | CAP | GB | |
||
| 13 | 249002-00 | 1 | COVER | GB | |
||
| 14 | 949896-12 | 3 | SCREW | GB | |
||
| 15 | 249416-06 | 2 | SCREW | GB | |
||
| 16 | 025130503 | 1 | FAN | GB | |
||
| 17 | 157830001 | 1 | BEARING | GB | |
||
| 19 | 013911011 | 1 | SCREW | GB | |
||
| 20 | 025931096 | 1 | SPRING | GB | |
||
| 21 | 025931309 | 1 | SPRING | GB | |
||
| 22 | 025912703 | 1 | SCREW | GB | |
||
| 23 | 025912700 | 1 | SCREW | GB | |
||
| 24 | 249064-00 | 1 | BUTTON | GB | |
||
| 25 | 025112600 | 1 | PIN | GB | |
||
| 26 | 025110801 | 1 | LEVER | GB | |
||
| 27 | 025154800 | 1 | STUD | GB | |
||
| 28 | 025114701 | 1 | WASHER SPACER | GB | |
||
| 35 | 249413-01 | 2 | SCREW | GB | |
||
| 36 | 249424-02 | 3 | SCREW | GB | |
||
| 37 | 725163 | 5 | WASHER | GB | |
||
| 38 | 249416-10 | 3 | SCREW | GB | |
||
| 39 | 025980125 | 1 | BEARING SINTER | GB | |
||
| 40 | 025827000 | 1 | KEY | GB | |
||
| 41 | 025150203 | 1 | FSO GEAR | GB | |
||
| 42 | 760232-00 | 1 | BEARING | GB | |
||
| 43 | 025150301 | 1 | COVER BEARING | GB | |
||
| 44 | 025125402 | 1 | BOSS | GB | |
||
| 46 | 324746-00 | 1 | CLAMP OUTER | GB | |
||
| 48 | 249409-10 | 1 | SCREW | GB | |
||
| 50 | 249424-05 | 2 | SCREW | GB | |
||
| 51 | 025116800 | 1 | ROLLER | GB | |
||
| 52 | 025912702 | 1 | SCREW | GB | |
||
| 53 | 025106900 | 1 | FENCE | GB | |
||
| 54 | 025116002 | 1 | PLATE | GB | |
||
| 55 | 025121604 | 1 | FSO TABLE | GB | |
||
| 56 | 025120903 | 1 | BUSH | GB | |
||
| 57 | 025922908 | 2 | KNOB | GB | |
||
| 58 | 011814600 | 1 | PIN | GB | |
||
| 59 | 025932200 | 1 | SPRING | GB | |
||
| 60 | 025122201 | 1 | STOP | GB | |
||
| 61 | 249412-10 | 2 | SCREW | GB | |
||
| 62 | 025120607 | 1 | BAFFLE FAN | GB | |
||
| 63 | 941580-00 | 1 | SPANNER 13-17MM | GB | |
||
| 64 | 379684 | 1 | CABLE CLAMP | GB | |
||
| 65 | 025120212 | 1 | COVER | GB | |
||
| 66 | 142121900 | 1 | CAPACITOR | GB | |
||
| 67 | 249233-00 | 2 | WASHER | GB | |
||
| 69 | 249232-00 | 2 | NUT M4 | GB | |
||
| 70 | 249129-00 | 2 | WASHER | GB | |
||
| 71 | 247751-00 | 1 | ADAPTOR | GB | |
||
| 72 | 249416-06 | 1 | SCREW | GB | |
||
| 73 | 324471-05 | 1 | BRACKET | GB | |
||
| 75 | 248020-00 | 1 | EXTRACTOR | GB | |
||
| 76 | 025150108 | 1 | HOUSING GEAR | GB | |
||
| 77 | 249424-07 | 1 | SCREW | GB | |
||
| 836 | 559563-99 | 1 | S.T.ASSEMBLY JIG | GB | |
||
| 837 | 559564-99 | 1 | SERVICE TOOL | GB | |
||
| 838 | 559565-99 | 1 | SERVICE TOOL | GB | |
||
| 839 | 559566-99 | 1 | SERVICE TOOL | GB | |
||
| 840 | 559567-99 | 1 | SERVICE TOOL | GB | |
