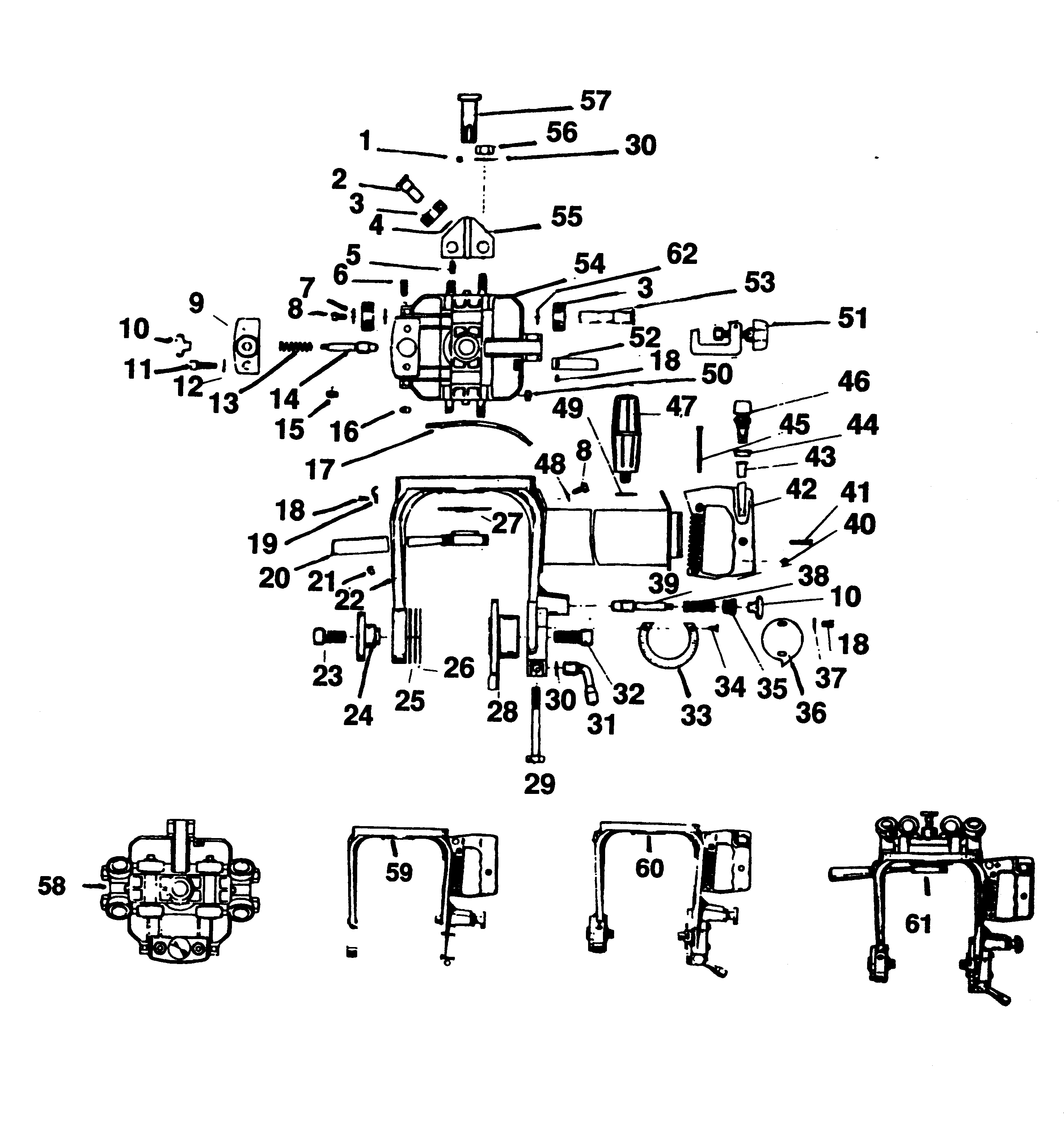

RAS1603---F RADIAL ARM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860088-27 | 1 | SCREW | XJ |  |
||
| 2 | 863969-00 | 1 | SHAFT | XJ | |
||
| 3 | 861721-07 | 1 | BEARING | XJ | |
||
| 4 | 863971-00 | 1 | WASHER | XJ | |
||
| 5 | 949853-03 | 1 | SCREW | XJ | |
||
| 6 | 860088-10 | 1 | PIN | XJ | |
||
| 7 | 860073-14 | 1 | WASHER | XJ | |
||
| 8 | 760219-00 | 1 | SCREW | XJ | |
||
| 9 | 860835-00 | 1 | SUPPORT | XJ | |
||
| 10 | 946469-01 | 1 | KNOB | XJ |  |
||
| 11 | 860093-02 | 1 | SCREW | XJ | |
||
| 12 | 860074-03 | 1 | WASHER | XJ | |
||
| 13 | 33200 | 1 | SPRING | XJ | |
||
| 14 | 133203 | 1 | PIN | XJ | |
||
| 15 | 860083-04 | 1 | NUT | XJ | |
||
| 16 | 860083-03 | 1 | NUT | XJ | |
||
| 17 | 144031 | 1 | CABLE | XJ | |
||
| 18 | 860238-04 | 1 | SCREW | XJ | |
||
| 20 | 862070-90 | 1 | HANDLE | XJ | |
||
| 21 | 860650-01 | 1 | NIPPLE | XJ | |
||
| 22 | 862194-03 | 1 | FORK | XJ | |
||
| 23 | 949886-06 | 1 | SCREW | XJ | |
||
| 24 | 862261-90 | 1 | TRUNNION | XJ | |
||
| 25 | 863989-00 | 1 | WASHER | XJ | |
||
| 26 | 863991-00 | 1 | WASHER | XJ | |
||
| 27 | 863953-00 | 1 | LOCKING RING | XJ | |
||
| 28 | 862260-90 | 1 | TRUNNION | XJ | |
||
| 29 | 949702-04 | 1 | SCREW | XJ | |
||
| 30 | 860074-04 | 1 | WASHER | XJ | |
||
| 31 | 863978-00 | 1 | HANDLE | XJ | |
||
| 32 | 949886-07 | 1 | SCREW | XJ | |
||
| 33 | 860829-00 | 1 | POINTER | XJ | |
||
| 34 | 860205-06 | 1 | SCREW | XJ | |
||
| 35 | 33240 | 1 | YOKE | XJ | |
||
| 36 | 860832-00 | 1 | POINTER | XJ | |
||
| 37 | 860073-00 | 1 | WASHER | XJ | |
||
| 38 | 860112-11 | 1 | SPRING | XJ | |
||
| 39 | 133236 | 1 | PIN | XJ | |
||
| 40 | 860083-02 | 1 | NUT | XJ | |
||
| 41 | 949701-12 | 1 | SCREW | XJ | |
||
| 42 | 866680-02 | 1 | HANDLE | XJ | |
||
| 45 | 860089-39 | 1 | SCREW | XJ | |
||
| 46 | 867077-00 | 1 | SWITCH | XJ | |
||
| 51 | 864575-01 | 1 | LOCK | XJ | |
||
| 52 | 863964-00 | 1 | POINTER | XJ | |
||
| 53 | 862380-00 | 1 | SHAFT | XJ | |
||
| 54 | 862194-03 | 1 | FORK | XJ | |
||
| 55 | 862259-90 | 1 | BRACKET | XJ | |
||
| 56 | 860083-05 | 1 | NUT RH | XJ | |
||
| 57 | 863951-00 | 1 | SCREW | XJ | |
||
| 59 | 199231 | 1 | YOKE | XJ | |
||
| 60 | 199234 | 1 | YOKE SA | XJ | |
||
| 61 | 199238 | 1 | YOKE SA | XJ | |
||
| 62 | 860226-02 | 1 | WASHER | XJ | |
