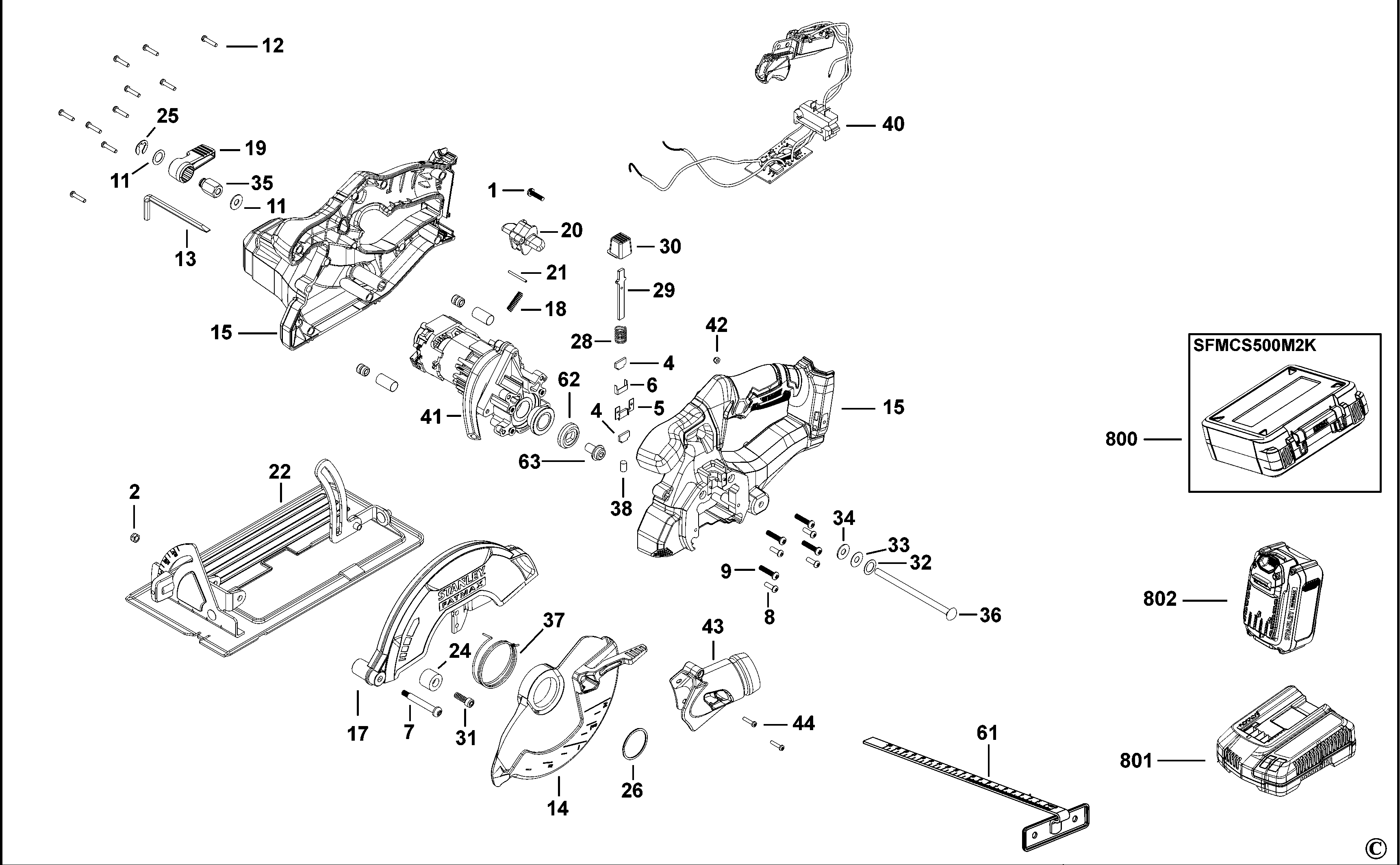

SFMCS500 CIRCULAR SAW Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N602673 | 1 | SCREW | M4.0X16 | GB |  |
|
| 2 | 497557-00 | 1 | NUT | GB |  |
||
| 4 | 5148016-00 | 2 | FELT SEAL | GB | |||
| 5 | 5148017-00 | 1 | COVER | GB | |||
| 6 | 5148018-00 | 1 | HOLDER | GB | |||
| 7 | 5148557-01 | 1 | SCREW | M5X46 | GB | |
|
| 8 | 5148739-00 | 4 | SCREW | GB | |||
| 9 | 5148755-00 | 4 | SCREW | GB | |||
| 11 | 932302-00 | 1 | WASHER | GB | |
||
| 12 | N602671 | 10 | SCREW | M3.5X16 | GB | |
|
| 13 | 90502723 | 1 | HEX KEY | GB | |
||
| 14 | N567730 | 1 | GUARD LOWER | GB | |
||
| 15 | N715179 | 1 | CLAMSHELL PAIR | GB | |
||
| 17 | N688173 | 1 | GUARD UPPER | GB | |
||
| 18 | 90591452 | 1 | SPRING | GB | |
||
| 19 | 90591864 | 1 | LEVER | GB | |
||
| 20 | N575803 | 1 | BUTTON LOCK-OFF | GB | |
||
| 21 | 90592043 | 1 | PIN | GB | |
||
| 22 | N575805 | 1 | SHOE SA | GB | |
||
| 24 | 90595755-02 | 1 | BUMPER | GB | |
||
| 25 | 90596628 | 1 | RING | GB | |
||
| 26 | 90596839 | 1 | RING | GB | |
||
| 28 | 90597576 | 1 | SPRING | GB | |
||
| 29 | 90597577 | 1 | ROD | GB | |
||
| 30 | 90597629-01 | 1 | LOCK BUTTON | GB | |
||
| 31 | 90609243 | 1 | SCREW | GB | |
||
| 32 | 90599319 | 1 | WASHER | GB | |
||
| 33 | 90601947 | 1 | WASHER | GB | |
||
| 34 | 90601948 | 2 | WASHER | GB | |
||
| 35 | 90602277-01 | 1 | NUT M6 | Tripple Thread | GB | |
|
| 36 | 90602278-01 | 1 | BOLT | Tripple Thread | GB | |
|
| 37 | 90602791 | 1 | SPRING | GB | |
||
| 39 | 5149025-00 | 1 | PLUG | GB | |
||
| 40 | N743008 | 1 | SWITCH & PCB SA | GB | |
||
| 41 | N588383 | 1 | GEARBOX SA | GB | |||
| 42 | 90556571 | 1 | NUT | M3 | GB | |
|
| 43 | N742612 | 1 | DUST PORT | GB | |
||
| 44 | 5101046-00 | 2 | SCREW | GB | |
||
| 61 | 90568785 | 1 | FENCE | GB | |
||
| 62 | 90598125 | 1 | OUTER FLANGE | GB | |
||
| 63 | 90591453 | 1 | BOLT | GB | |
||
| 800 | N739016 | 1 | KITBOX | GB | |
||
| 801 | N567651 | 1 | CHARGER SA | SFMCB12 - 2A | SFMCS500M2K + D1K | GB | |
| 802 | N855084 | 1 | BATTERY 18V - 4.0AH - 72WH | SFMCS500M2K | GB | ||
| 802 | N901002 | 1 | BATTERY 18V - 2.0AH - 36WH | SFMCB202-XJ | SFMCS500D1K | GB |
