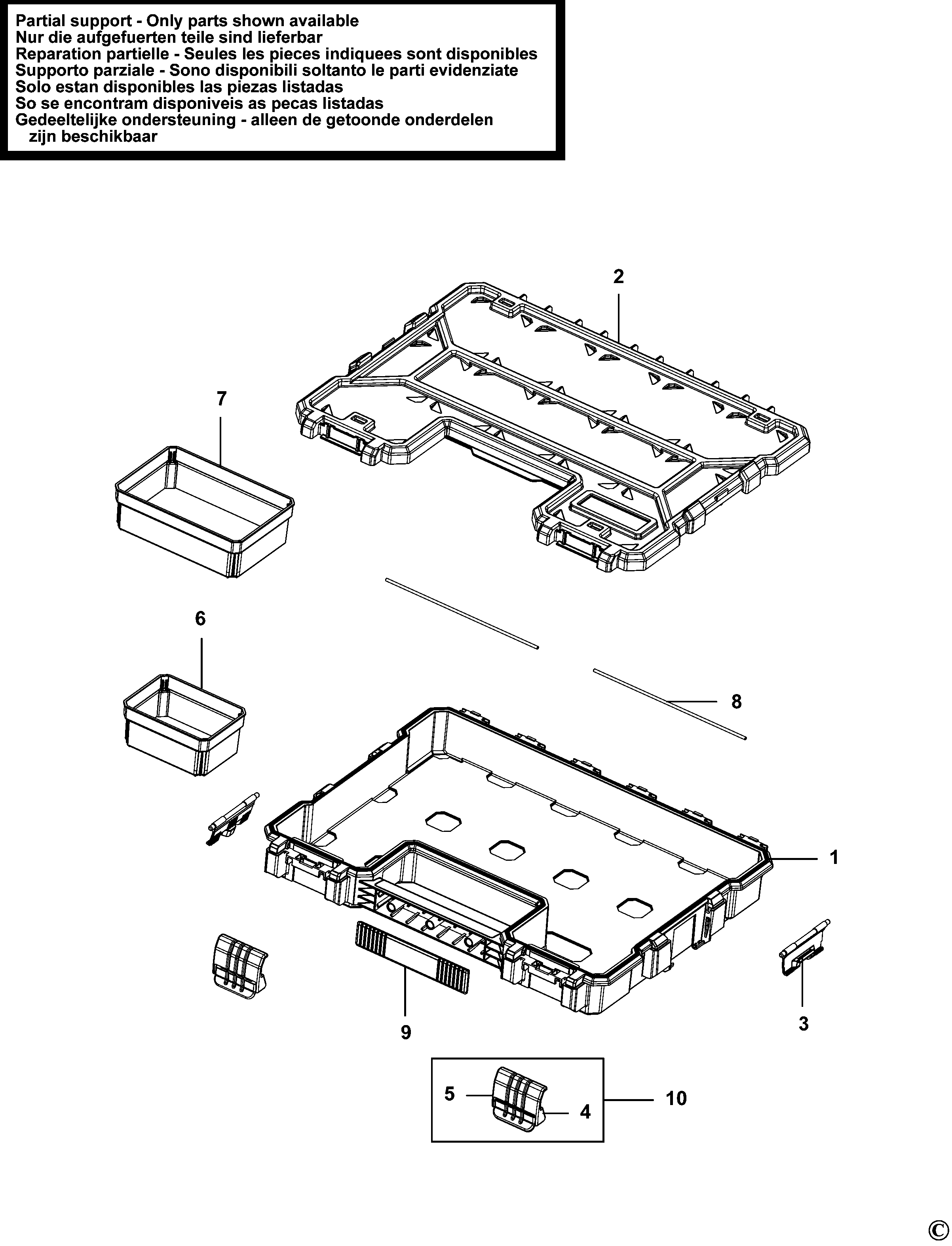

1-97-519 ORGANISER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	000000-05	1	PARTIAL SUPPORT - ONLY PARTS LISTED AVAI		XJ
1	869322-00	1	GUARD SA		XJ
2	H1200316611	1	LID		XJ
2	326960-00	1	SERVICE BRUSH	230V - LED	XJ
3	H1500076002	2	LATCH		XJ
3	327148-02	1	BRUSH PAIR 115V		XJ
4	H2600642002	2	LATCH		XJ
5	H2600642002	2	LATCH		XJ
5	N036977	2	GUARD		XJ
6	H1200321150	8	CUP		XJ
6	860077-00	2	RETAINER		XJ
7	H1200322150	2	CUP		XJ
7	1347401	2	SPRING	DELTA	XJ
8	P910782	2	HINGE		XJ
8	862047-00	3	NUT		XJ
9	H2500517002	1	COVER GREY		XJ
9	726222	1	ADAPTOR		XJ
10	H2600642002	1	LATCH		XJ
11	576485-02	1	CLAMSHELL SET		XJ
12	579758-02	2	FIELD 230V		XJ
14	374998-01	7	CARRIAGE		XJ
17	860084-11	4	SCREW		XJ
18	327148-03	4	BRUSH PAIR 120V		XJ
19	241706-00	4	WIRING DIAGRAM		XJ
20	869231-04	4	FENCE SA		XJ
25	869089-01	1	GUARD COVER		XJ
26	322129	1	FLANGE		XJ
29	869322-01	1	GUARD 12"		XJ
33	868632-00	1	CABLE & PLUG		XJ
34	817096	1	ADJUSTER BLOCK		XJ
35	352313	2	GUIDE BLOCK		XJ
36	1004266-00	1	REPAIR KIT,HOUSING	NANO-EURO	XJ
37	869064-01	1	CABLE CLAMP		XJ
39	742152	1	HOUSING LH		XJ
41	869117-01	1	HANDLE		XJ
43	329941-03	1	GEARCASE SA		XJ
44	N045265	2	GUARD		XJ
45	869181-01	1	WRENCH SPECIAL		XJ
53	584558-01	2	HOLDER TOOL		XJ
54	726242	1	TOOL REST		XJ
55	577708-01	2	COVER-TOP		XJ
