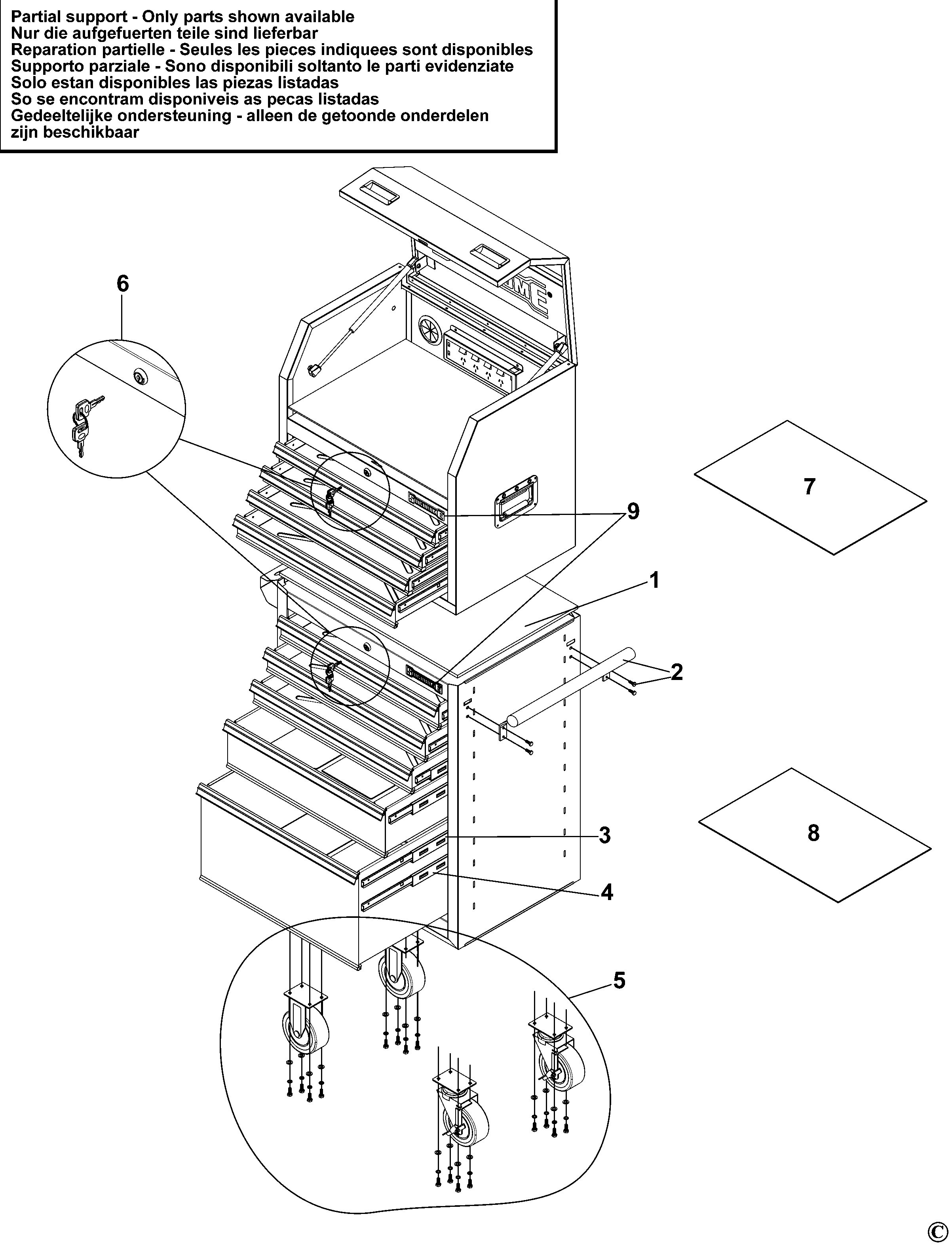

SCMT50219PB ROLLER CABINET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004737-05 | 1 | MAT | XJ | |||
| 2 | 1004757-29 | 1 | HANDLE SA | XJ | |||
| 2 | 329781-49 | 1 | BRUSH HOLDER PAIR | XJ |  |
||
| 2 | 329807-49 | 1 | ARMATURE 115V | BR 230V | XJ | |
|
| 3 | SCMT057215 | 9 | SLIDE | LEFT (Upto 2015) | XJ | ||
| 3 | SID-SP-21 | 1 | SLIDE | XJ | |||
| 4 | SID-SP-22 | 1 | SLIDE | XJ | |||
| 4 | SID-SP-22 | 9 | SLIDE | RIGHT | XJ | ||
| 4 | 487353-01 | 1 | KITBOX | Metabo | XJ | |
|
| 5 | 1004757-35 | 1 | WHEEL SA | XJ | |||
| 6 | 1004757-38 | 1 | LOCK SA | XJ | |||
| 7 | 1004757-44 | 1 | LINER | XJ | |||
| 7 | 90626849 | 1 | SPRING | XJ |  |
||
| 8 | SCMT058363 | 1 | LINER | Upto 2015 | XJ | ||
| 8 | SCMT057322 | 1 | LINER | From 2016 | XJ | ||
| 9 | SID-SP-13 | 1 | BRAND LABEL | XJ | |||
| 9 | 6010058-03 | 1 | TOP | UPPER PART | XJ | |
|
| 10 | 6010058-02 | 1 | COVER | BOTTOM COVER | XJ | |
|
| 12 | 6010119-16 | 8 | RING | XJ | |
||
| 14 | 6010167-14 | 1 | SEAL | XJ | |
||
| 15 | 330003-10 | 1 | BEARING | BD5100 | XJ | |
|
| 16 | 368694-02 | 1 | RATING PLATE | XJ | |
||
| 20 | 748158 | 1 | SPRING | XJ | |
||
| 21 | 6010167-17 | 1 | COVER | XJ | |||
| 22 | 6010167-12 | 1 | SEAL | XJ | |
||
| 25 | 6010167-09 | 1 | HANDLE COVER | XJ | |
||
| 26 | 6010167-09 | 1 | HANDLE COVER | XJ | |
||
| 27 | 6010167-09 | 1 | HANDLE COVER | XJ | |
||
| 28 | 752837 | 1 | DIAL STEAM | XJ | |
||
| 30 | 329870-01 | 1 | KITBOX | XJ | |||
| 39 | 6010167-08 | 1 | HANDLE | XJ | |
||
| 40 | 6010167-09 | 1 | HANDLE COVER | XJ | |
||
| 100 | 559879-00 | 2 | COVER SA | XJ | |
||
| 101 | 6010093-40 | 2 | LATCH | LATCH CHANNEL LH | XJ | ||
| 102 | 248866-00 | 1 | SCREW WING | XJ | |
||
| 846 | 6010058-06 | 1 | FRAME | MAIN FRAME PLASTIC | XJ | |
|
| 847 | 6010028-47 | 1 | FILTER | XJ | |
