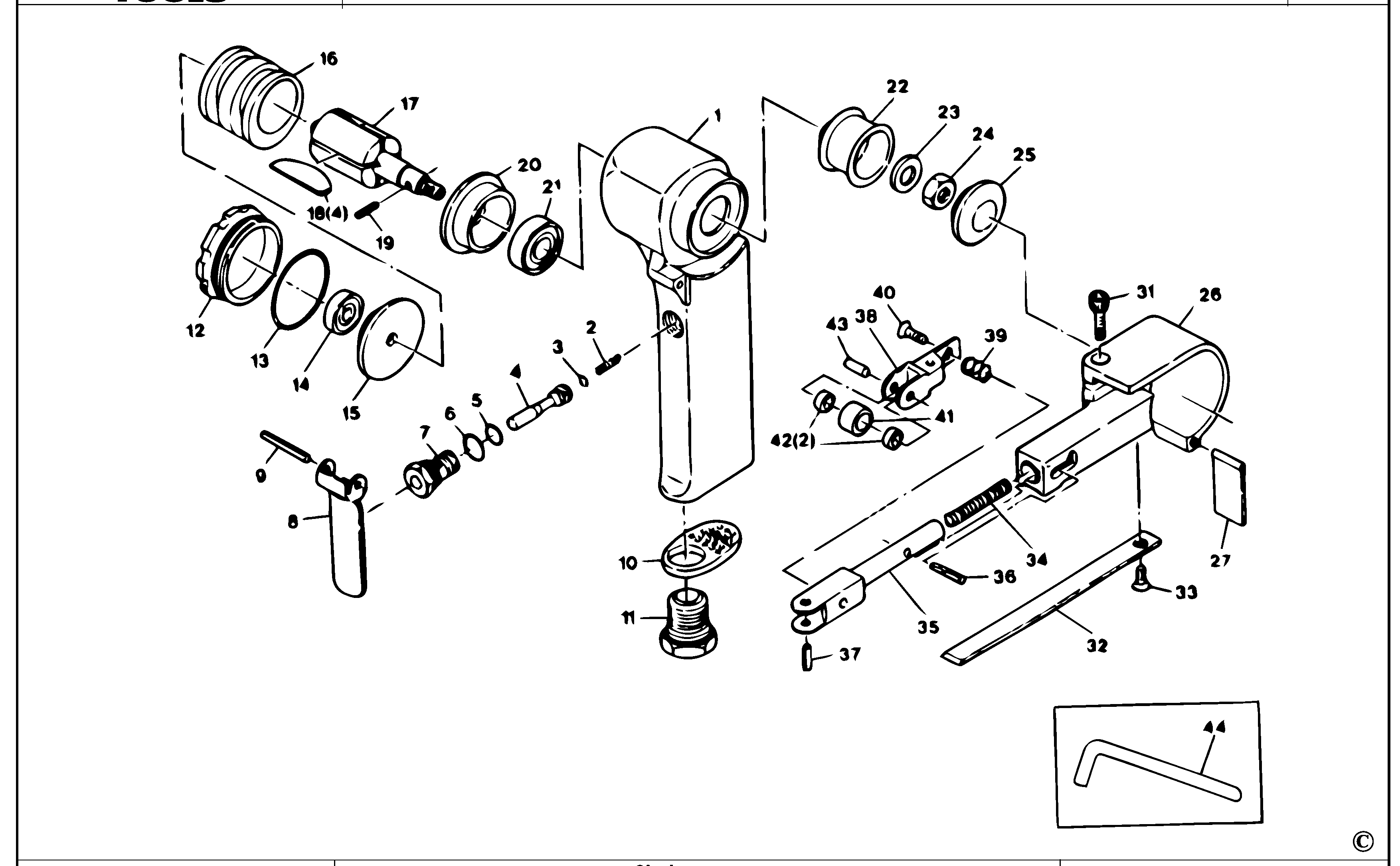

AS775 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AS775-01 | 1 | HOUSING | GB |  |
||
| 2 | AR134-09 | 1 | SPRING | GB | |||
| 3 | AR133-09 | 1 | O RING | GB |  |
||
| 4 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 5 | AR133-06 | 1 | O RING | GB | |
||
| 6 | AD527-30 | 1 | O RING | GB | |
||
| 7 | AS775-07 | 1 | BUSHING | GB | |
||
| 8 | AS775-08 | 1 | LEVER | GB | |
||
| 9 | ADG200-10 | 1 | PIN | GB | |||
| 10 | AS775-10 | 1 | DEFLECTOR | GB | |
||
| 11 | AS775-11 | 1 | BUSHING | GB | |
||
| 12 | AS775-12 | 1 | NUT | GB | |
||
| 13 | AS775-13 | 1 | O RING | GB | |
||
| 14 | AR133-11 | 1 | BEARING | GB | |
||
| 15 | AS775-15 | 1 | PLATE | GB | |
||
| 16 | AS775-16 | 1 | CYLINDER | GB | |
||
| 17 | AS775-17 | 1 | ROTOR | GB | |
||
| 18 | AS775-18 | 1 | BLADE | GB | |
||
| 19 | AS775-19 | 1 | ROLL PIN | GB | |
||
| 20 | AS775-20 | 1 | PLATE | GB | |
||
| 21 | AS775-21 | 1 | BEARING | GB | |
||
| 22 | AS775-22 | 1 | PULLEY | GB | |
||
| 23 | AS775-23 | 1 | WASHER | GB | |
||
| 24 | AS775-24 | 1 | NUT | GB | |
||
| 25 | AS775-25 | 1 | CAP | GB | |
||
| 26 | AS775-26 | 1 | COVER | GB | |
||
| 27 | AS775-27 | 1 | PLATE | GB | |
||
| 31 | AS775-31 | 1 | SCREW | GB | |
||
| 32 | AS775-32 | 1 | SHOE | GB | |
||
| 33 | AS775-33 | 1 | SCREW | GB | |
||
| 34 | AS775-34 | 1 | SPRING | GB | |
||
| 35 | AS775-35 | 1 | ARM | GB | |
||
| 36 | AS775-36 | 1 | ROLL PIN | GB | |
||
| 37 | AS775-37 | 1 | ROLL PIN | GB | |
||
| 38 | AS775-38 | 1 | ARM | GB | |
||
| 39 | AS775-39 | 1 | SPRING | GB | |
||
| 40 | AS775-40 | 1 | SCREW | GB | |
||
| 41 | AS775-41 | 1 | PULLEY | GB | |
||
| 42 | AS775-42 | 1 | BEARING | GB | |
||
| 43 | AS775-43 | 1 | PIN | GB | |
||
| 44 | AS775-44 | 1 | KEY | GB | |
