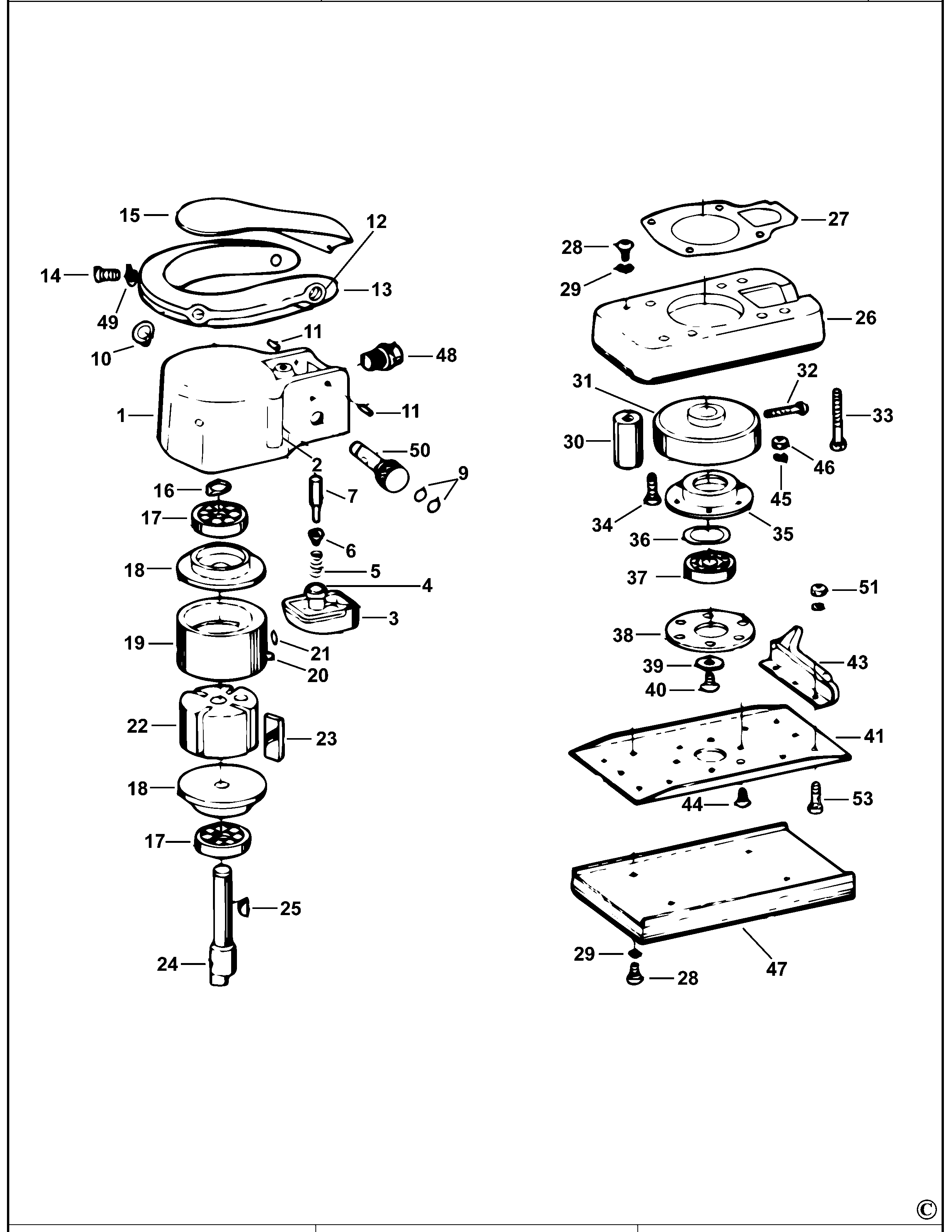

AS100B ORBITAL SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AS100-01 | 1 | HOUSING MOTOR | GB |  |
||
| 2 | AS517-32 | 1 | FOAM | GB | |||
| 3 | AS100-03 | 1 | Muffler | GB | |
||
| 4 | AS100-04 | 1 | FOAM | GB | |
||
| 5 | AS150-03 | 1 | SPRING | GB | |
||
| 6 | AS150-04 | 1 | VALVE | GB | |
||
| 7 | AS100-07 | 1 | PLUNGER | GB | |
||
| 9 | AW145-007 | 2 | O RING | GB | |||
| 10 | AS150-18 | 1 | RING | GB | |
||
| 11 | AS100-11 | 2 | PIN | GB | |
||
| 12 | AS100-12 | 1 | BAND | GB | |
||
| 13 | AS100-13 | 1 | GRIP | GB | |
||
| 14 | AS100-14 | 4 | SCREW | GB | |
||
| 15 | AS100-15 | 1 | LEVER | GB | |
||
| 16 | AS150-23 | 1 | RING | GB | |
||
| 17 | AS150-22 | 2 | BEARING,BALL | GB | |
||
| 18 | AS150-24 | 2 | PLATE | GB | |
||
| 19 | AS150-26 | 1 | CYLINDER | GB | |
||
| 20 | AS150-25 | 1 | PIN | GB | |
||
| 21 | AW145-127 | 1 | O RING | GB | |
||
| 22 | AS100-22 | 1 | ROTOR | GB | |
||
| 23 | AS150-28 | 1 | BLADE | GB | |
||
| 24 | AS100-24 | 1 | SHAFT | GB | |
||
| 25 | AS150-29 | 1 | KEY | GB | |
||
| 26 | AS100-26 | 1 | BASE | GB | |
||
| 27 | AS100-27 | 1 | GASKET | GB | |
||
| 28 | AS100-28 | 2 | SCREW | GB | |
||
| 29 | AS100-29 | 2 | WASHER | GB | |
||
| 30 | AS100-30 | 1 | MOUNT | GB | |
||
| 31 | AS100-31 | 1 | SUPPORT | GB | |
||
| 32 | AS100-32 | 1 | SCREW | GB | |
||
| 33 | AS150-33 | 2 | SCREW | GB | |
||
| 34 | AS150-34 | 2 | SCREW | GB | |
||
| 35 | AS100-35 | 1 | CASE | GB | |
||
| 36 | AS100-36 | 1 | WASHER | GB | |
||
| 37 | AS150-22 | 1 | BEARING,BALL | GB | |
||
| 38 | AS100-38 | 1 | PLATE | GB | |
||
| 39 | AS100-39 | 1 | WASHER | GB | |
||
| 40 | AS100-40 | 1 | WASHER | GB | |
||
| 41 | AS100-41 | 1 | PLATE | GB | |
||
| 43 | AS100-43 | 2 | CLAMP | GB | |
||
| 44 | AS100-44 | 6 | SCREW | GB | |
||
| 45 | AS100-45 | 12 | WASHER | GB | |
||
| 46 | AS100-46 | 6 | NUT | GB | |
||
| 47 | AS100-47 | 1 | SANDING PAD | GB | |
||
| 48 | AW145-001 | 1 | BUSHING | GB | |
||
| 49 | AS100-49 | 4 | WASHER | GB | |
||
| 50 | AS100-50 | 1 | REGULATOR | GB | |
||
| 51 | AS150-09 | 6 | NUT | GB | |
||
| 53 | 000000-00 | 6 | NO LONGER AVAILABLE | GB |
