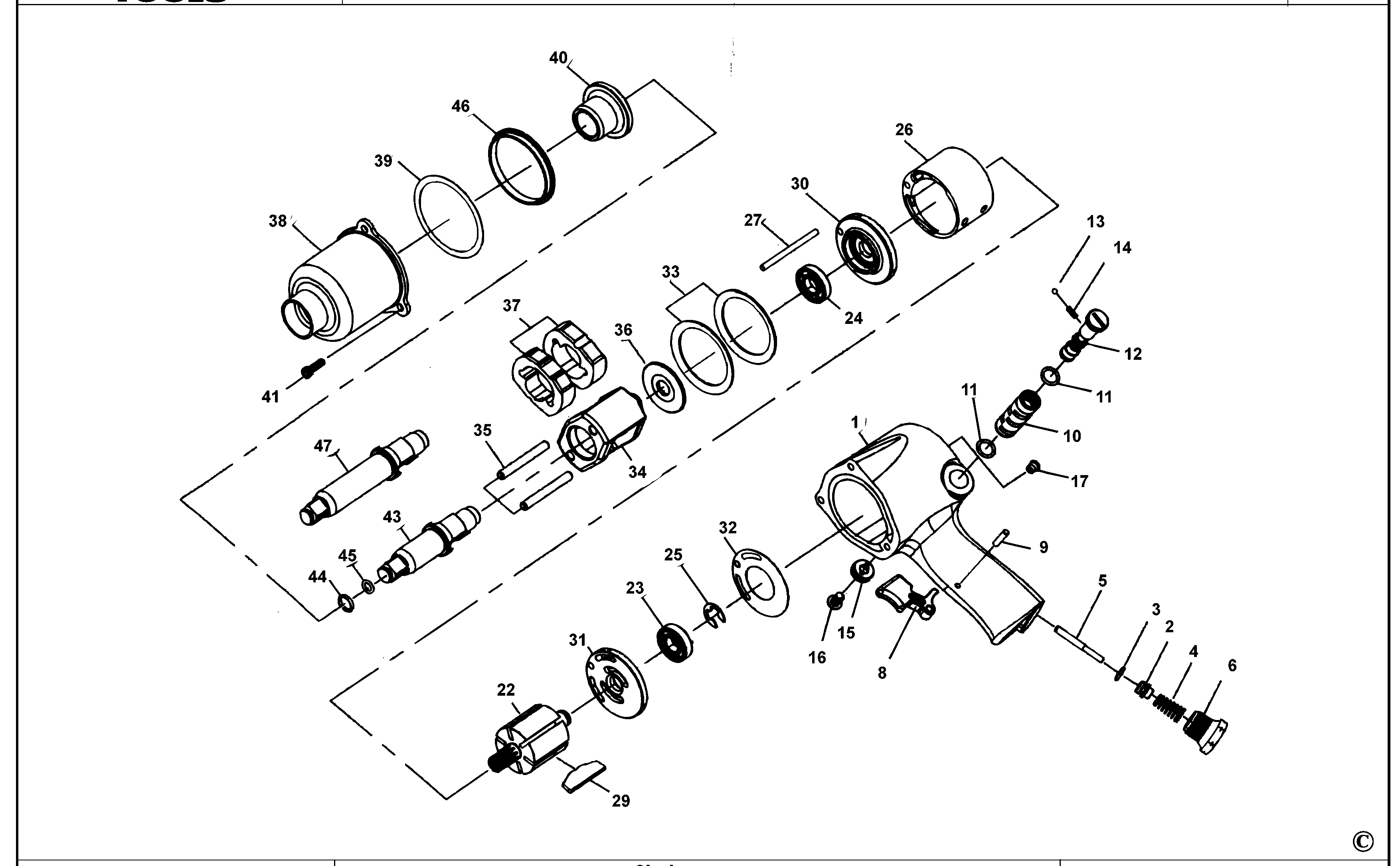

AW235 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 2 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 3 | AW235-03 | 1 | VALVE | XJ |  |
||
| 4 | AW235-04 | 1 | SPRING | XJ | |
||
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 6 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 9 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 10 | AW235-10 | 1 | BUSHING | XJ | |
||
| 11 | AW235-11 | 1 | SEAL | XJ | |
||
| 12 | AW235-12 | 1 | VALVE | XJ | |
||
| 13 | AW235-13 | 1 | BALL | XJ | |
||
| 14 | AW235-14 | 1 | SPRING | XJ | |
||
| 15 | AW235-15 | 1 | KNOB | XJ | |
||
| 16 | AW235-16 | 1 | SCREW | XJ | |
||
| 17 | AW235-17 | 1 | PLUG | XJ | |
||
| 22 | AW235-22 | 1 | ROTOR | XJ | |
||
| 23 | AW235-23 | 1 | BEARING | XJ | |
||
| 24 | AW235-24 | 1 | BEARING | XJ | |
||
| 25 | AW235-25 | 1 | RETAINER | XJ | |
||
| 26 | AW235-26 | 1 | CYLINDER | XJ | |
||
| 27 | AW235-27 | 1 | DOWEL | XJ | |
||
| 29 | AW235-29 | 1 | BLADE | XJ | |
||
| 30 | AW235-30 | 1 | PLATE | XJ | |
||
| 31 | AW235-31 | 1 | PLATE | XJ | |
||
| 32 | AW235-32 | 1 | GASKET | XJ | |
||
| 33 | AW235-33 | 1 | WASHER | XJ | |
||
| 34 | AW235-34 | 1 | FRAME | XJ | |
||
| 35 | AW235-35 | 1 | PIN | XJ | |
||
| 36 | AW235-36 | 1 | WASHER | XJ | |
||
| 37 | AW235-37 | 1 | HAMMER | XJ | |
||
| 38 | AW235-38 | 1 | CASE | XJ | |
||
| 39 | AW235-39 | 1 | GASKET | XJ | |
||
| 40 | AW235-40 | 1 | BUSHING | XJ | |
||
| 41 | AW235-41 | 1 | SCREW | XJ | |
||
| 43 | AW235-43A | 1 | ANVIL | XJ | |
||
| 44 | AW235-44 | 1 | RETAINER | XJ | |
||
| 45 | AW235-45 | 1 | RETAINER | XJ | |
||
| 46 | AW235-38A | 1 | PILOT | XJ | |
||
| 47 | AW235-43B | 1 | ANVIL | XJ | |
