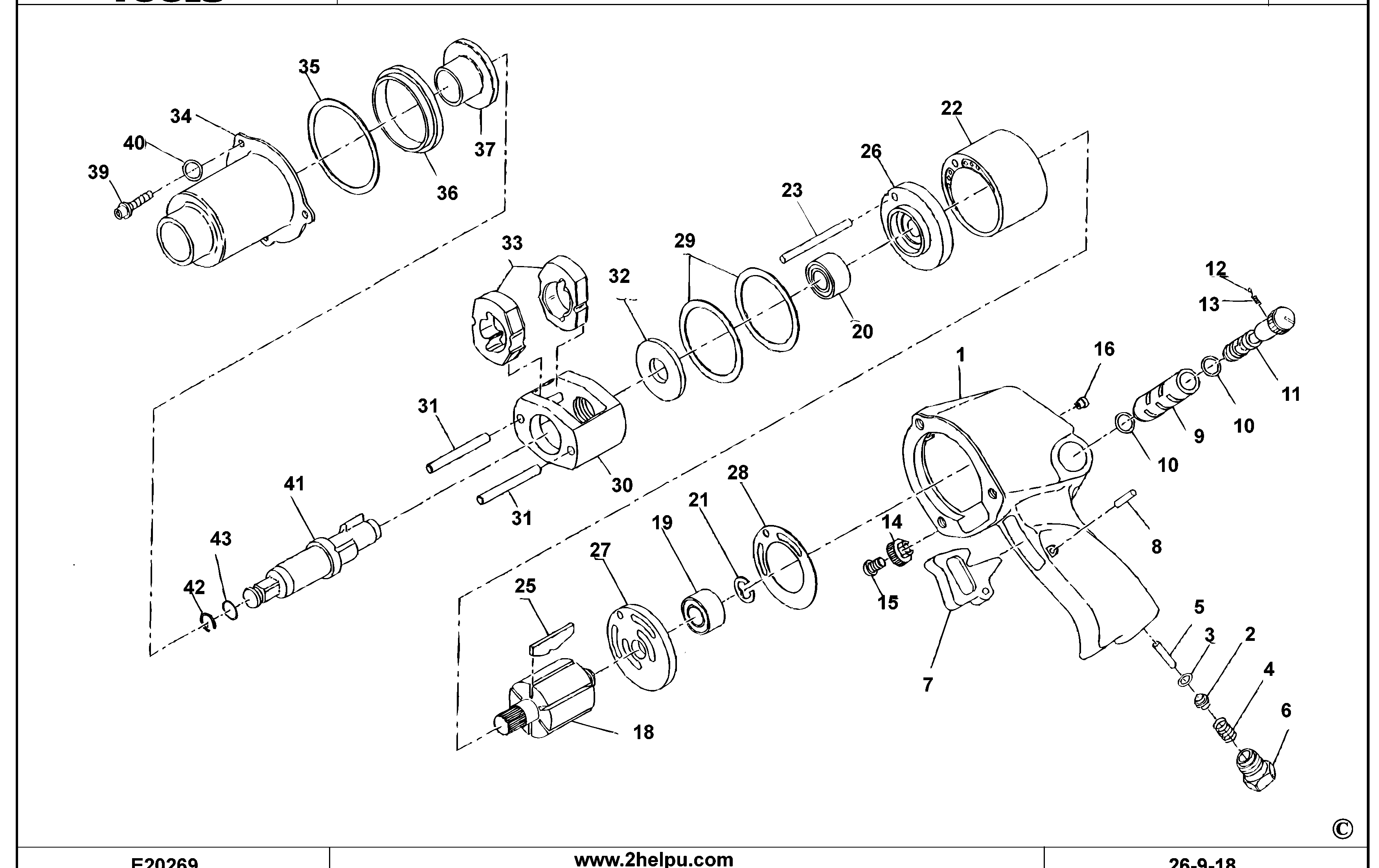

AW4400 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AW4400-A40 | 1 | HOUSING SA | GB |  |
||
| 2 | 404-50A | 1 | VALVE | GB | |
||
| 3 | 405-159 | 1 | VALVE | GB | |
||
| 4 | R1A-51 | 1 | SPRING | GB | |
||
| 5 | 402-302 | 1 | VALVE STEM | GB | |
||
| 6 | 402-565 | 1 | PLUG | GB | |
||
| 7 | 705-93 | 1 | TRIGGER | GB | |
||
| 8 | 533-656 | 1 | PIN | GB | |
||
| 9 | 231-A330 | 1 | BUSHING | GB |  |
||
| 10 | PS3-67 | 1 | SEAL | GB | |
||
| 11 | 231-329A | 1 | VALVE | GB | |
||
| 12 | AV1-255 | 1 | BALL | GB | |
||
| 13 | 231-664 | 1 | SPRING | GB | |
||
| 14 | 231-666 | 1 | BALL | GB | |
||
| 15 | 231-665 | 1 | SCREW | GB | |
||
| 16 | 130SR-188 | 1 | PLUG | GB | |
||
| 18 | 244-53 | 1 | ROTOR | GB | |
||
| 19 | 402-22 | 1 | BEARING | GB | |
||
| 20 | 4U-97 | 1 | BEARING | GB | |
||
| 21 | 402-118 | 1 | RETAINER | GB | |
||
| 22 | 244LG-3 | 1 | CYLINDER | GB | |
||
| 23 | 230-98 | 1 | DOWEL | GB | |||
| 25 | 2906P-42-6 | 1 | ROTOR BLADE | GB | |
||
| 26 | 231-A11 | 1 | END PANEL. FRONT | GB | |
||
| 27 | 231-12 | 1 | END PANEL. REAR | GB | |
||
| 28 | 231-283 | 1 | GASKET | GB | |
||
| 29 | 227-207 | 1 | WASHER | GB | |||
| 30 | 231XP-A703 | 1 | KIT SA | GB | |
||
| 31 | 231-704 | 1 | HAMMER MODULE | GB | |||
| 32 | 231-706 | 1 | WASHER | GB | |
||
| 33 | 2131A-724 | 1 | HAMMER | GB | |
||
| 34 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 35 | 230-36 | 1 | GASKET | GB | |
||
| 36 | 405-800 | 1 | PILOT | GB | |||
| 37 | 705-941 | 1 | BUSHING | GB | |||
| 39 | 131-638 | 1 | SCREW | GB | |
||
| 40 | 131-637 | 1 | WASHER | GB | |
||
| 41 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 44 | WARNING-2-99 | 1 | LABEL | GB | |||
| 45 | AW4400-301 | 1 | NAMEPLATE | GB | |
||
| 46 | 231C-A626 | 1 | ANVIL | GB | |
||
| 47 | 000000-00 | 1 | NO LONGER AVAILABLE | GB |
