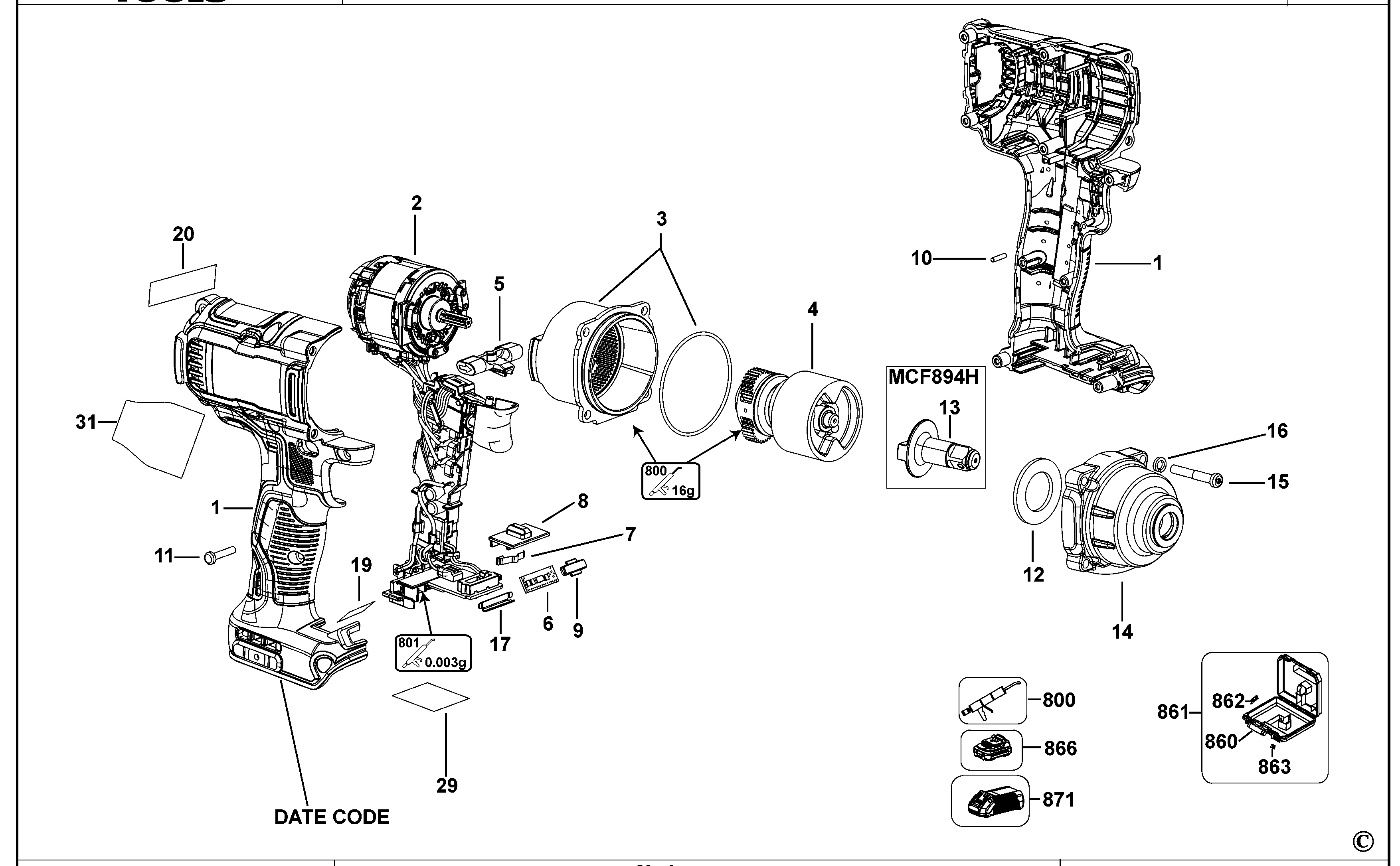

MCF894 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N620252 | 1 | CLAMSHELL SET | MAC | GB |  |
|
| 1 | 744225 | 1 | SPRING | GB |  |
||
| 2 | N574179 | 1 | MOTOR & SWITCH SA | EURO | GB | |
|
| 2 | 875848 | 1 | LEVER | GB | |
||
| 3 | N536347 | 1 | GEARCASE SA | GB | |
||
| 3 | 830542 | 1 | ELEMENT SA | GB | |
||
| 4 | N536354 | 1 | IMPACTOR | GB | |
||
| 4 | 325194-00 | 1 | SPANNER | GB | |
||
| 5 | N500020 | 1 | ACTUATOR FWD/REV | MAC | GB | |
|
| 5 | 1004514-12 | 1 | HEX KEY 2.5 MM | GB | |
||
| 6 | N231799 | 1 | LED LIGHT | GB | |
||
| 7 | N392855 | 1 | DETENT | GB | |
||
| 8 | N433560 | 1 | SELECTOR | GB | |
||
| 9 | N394333 | 1 | LENS | GB | |
||
| 9 | 1003167-00 | 1 | SCREW | GB | |
||
| 10 | N071836 | 1 | ROLL PIN | GB | |
||
| 10 | 568364-00 | 1 | WASHER | GB | |
||
| 11 | 90611830 | 9 | SCREW | GB | |
||
| 11 | 326589-06 | 2 | SCALE | GB | |
||
| 12 | N510740 | 1 | WASHER THRUST | GB | |
||
| 12 | 831798 | 1 | SWITCH | GB | |
||
| 13 | N571383 | 1 | ANVIL ASSEMBLY | HOG RING | GB | |
|
| 13 | 844982-00 | 2 | LATCH | GB | |
||
| 14 | N571381 | 1 | NOSE SA | MAC | GB | |
|
| 14 | 844983 | 1 | KNOB | GB | |
||
| 15 | N516846 | 4 | SCREW | M4 X 32 T20 | GB | |
|
| 15 | 809471 | 1 | AXLE | GB | |
||
| 16 | N529458 | 4 | WASHER LOCK | GB | |
||
| 17 | N525535 | 1 | PLATE | GB | |
||
| 18 | 279767-00 | 1 | STACKING RING | GB | |
||
| 19 | N561587 | 1 | LABEL | IMPACT ASSIST | GB | |
|
| 20 | N561583 | 1 | LABEL | BRUSHLESS MAC | GB | |
|
| 20 | 830813 | 1 | COVER | GB | |
||
| 24 | 844382 | 1 | HANDLE TUBE | GB | |
||
| 26 | 567842-00 | 1 | SANDING PAD | GB | |
||
| 27 | 739295 | 1 | BEARING | GB | |
||
| 28 | 823321 | 1 | TILT BRACKET R.H | GB | |||
| 29 | N563392 | 1 | LABEL | MAC | GB | |
|
| 29 | 324595-00 | 1 | FIELDCASE SA | GB | |
||
| 31 | N565137 | 1 | RATING PLATE | MAC | GB | ||
| 32 | 279666-00 | 1 | ELEMENT | GB | |
||
| 34 | 679643-00 | 1 | FAN | GB | |
||
| 35 | 831535 | 1 | CHARGER | GB | |
||
| 36 | 372147-49 | 2 | GEAR SA | GB | |
||
| 37 | 830790 | 1 | LABEL | GB | |
||
| 38 | 330003-56 | 1 | BEARING | GB | |
||
| 40 | 596568-00 | 1 | BEARING | 10 x 26 x 8 | GB | |
|
| 41 | 577537-00 | 1 | GRASSBOX RIGHT | GB | |
||
| 44 | 862398-00 | 1 | BASE | GB | |
||
| 45 | 845016 | 1 | FRAME | GB | |
||
| 46 | 323132-00 | 1 | SWITCH | GB | |
||
| 47 | 570593-00 | 1 | SUPPORT | GK310P | GB | |
|
| 47 | 326286-02 | 1 | COLLET & NUT SA | GK440-GK40-D40KS | GB | |
|
| 48 | 569270-11 | 1 | FILTER | GK425 | GB | |
|
| 48 | 373705-02 | 1 | END CAP SA | GK310P | GB | |
|
| 48 | 580200-04 | 1 | RATING PLATE | GK440-GK40-D40KS | GB | |
|
| 48 | 373704-02 | 1 | END CAP SA | GK435-GK35-GK1200 | GB | |
|
| 50 | 6010064-03 | 1 | HANDLE COVER | GB | |
||
| 51 | 327589-04 | 1 | CLAMSHELL | GB | |
||
| 52 | 85909-00 | 1 | SLEEVE | GB | |||
| 53 | 569125-00 | 1 | LEVER | GB | |
||
| 55 | 279672-00 | 1 | BODY | GB | |
||
| 57 | 568350-00 | 2 | GEARCASE SA | GB | |
||
| 58 | 568562-00 | 1 | SCREW | GB | |
||
| 59 | 372777-02 | 1 | ARMATURE | GB | |
||
| 65 | 568393-00 | 1 | RUBBER SEAL | GB | |
||
| 68 | 569098-00 | 1 | CORDSET | GB | |
||
| 70 | 6010064-02 | 1 | COVER | LOWER COVER | GB | ||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | GB | |
|
| 801 | N108694 | 1 | GREASE | NYE Nyogel 760G 30ml | GB | ||
| 826 | 809810-01 | 1 | RATING PLATE | GB | |
||
| 827 | 567818-00 | 1 | ARMATURE SA | GB | |
||
| 861 | 000000-99 | 1 | Part number or price not available | MP17687-QZ | GB | ||
| 866 | 000000-99 | 1 | Part number or price not available | MBR184-XJ | GB | ||
| 871 | N808680 | 1 | CHARGER GB | MCB115 | GB | |
