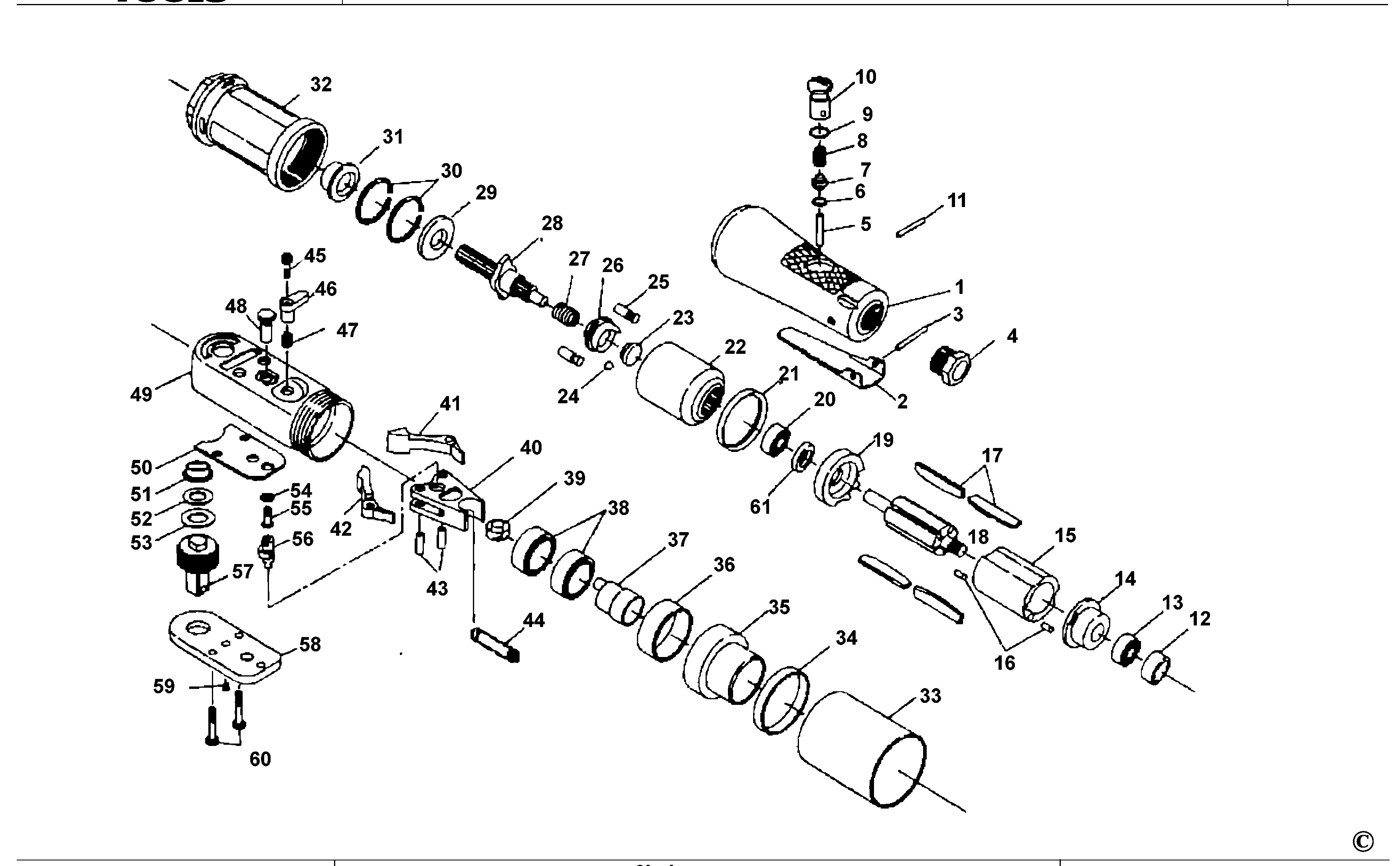

AR338RP RATCHET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AR175RP-01 | 1 | HOUSING | GB |  |
||
| 2 | AR133-04 | 1 | LEVER | GB | |
||
| 3 | AR133-02 | 1 | PIN | GB |  |
||
| 4 | AW170-45 | 1 | BUSHING | GB | |
||
| 5 | AR760-07 | 1 | PLUNGER | GB | |
||
| 6 | AR133-09 | 1 | O RING | GB | |
||
| 7 | AR133-08 | 1 | VALVE | GB | |
||
| 8 | AR133-07 | 1 | SPRING | GB | |
||
| 9 | AR133-06 | 1 | O RING | GB | |
||
| 10 | AR175-04 | 1 | REGULATOR | GB | |
||
| 11 | AW145-016 | 1 | LEVER | GB | |
||
| 12 | AR133-48 | 1 | CAP | GB | |
||
| 13 | AR133-11 | 1 | BEARING | GB | |
||
| 14 | AR175-14 | 1 | PLATE | GB | |
||
| 15 | AR175-17 | 1 | CYLINDER | GB | |
||
| 16 | AR760-14 | 1 | PIN | GB | |
||
| 17 | AD527-20 | 1 | ROTOR BLADE | GB | |
||
| 18 | AR175-15 | 1 | ROTOR | GB | |
||
| 19 | AR175-19 | 1 | PLATE | GB | |
||
| 20 | AR175-20 | 1 | BEARING | GB | |
||
| 21 | AR175-21 | 1 | SPACER | GB | |
||
| 22 | AR175-22 | 1 | CAGE | GB | |
||
| 23 | AW140-36 | 1 | PILOT | GB | |
||
| 24 | AW139A-18 | 1 | BALL | GB | |
||
| 25 | AW139A-20 | 1 | PIN | GB | |
||
| 26 | AR175-23 | 1 | HAMMER | GB | |
||
| 27 | AR175-26 | 1 | SPRING | GB | |
||
| 28 | AR338RP-28 | 1 | SPINDLE | GB | |
||
| 29 | AR175-29 | 1 | SPACER | GB | |
||
| 30 | AR175-62 | 1 | RING | GB | |
||
| 31 | AR175-30 | 1 | BUSHING | GB | |
||
| 32 | AR338RP-32 | 1 | HOUSING | GB | |
||
| 33 | AR175-61 | 1 | PIPE | GB | |
||
| 34 | AR338RP-34 | 1 | RING | GB | |
||
| 35 | AR338RP-35 | 1 | NIPPLE | GB | |
||
| 36 | AR338RP-36 | 1 | SPACER | GB | |
||
| 37 | AR338RP-37 | 1 | CRANKSHAFT | GB | |
||
| 38 | AR1776-54 | 1 | BEARING,BALL | GB | |
||
| 39 | AR1776-36 | 1 | BUSHING | GB | |
||
| 40 | AR1776-37 | 1 | LINK | GB | |
||
| 41 | AR1776-41 | 1 | PAWL | Single | GB | |
|
| 42 | AR1776-42 | 1 | PAWL | Double | GB | |
|
| 43 | AR1776-39 | 1 | DOWEL | GB | |
||
| 44 | AR1776-40 | 1 | SPRING TORSION | GB | |
||
| 45 | AR1776-29 | 1 | SCREW TORX | GB | |
||
| 46 | AR1776-28 | 1 | SWITCH REVERSE | GB | |
||
| 47 | AR1776-35 | 1 | SPRING | GB | |
||
| 48 | AR1776-30 | 1 | PIVOT | GB | |
||
| 49 | AR1776-32 | 1 | HOUSING | GB | |
||
| 50 | AR1776-34 | 1 | PLATE | GB | |
||
| 51 | AR1776-43 | 1 | BUSHING | GB | |
||
| 52 | AR1776-44 | 1 | WASHER | GB | |
||
| 53 | AR1776-45 | 1 | WASHER | GB | |
||
| 54 | AR1776-48 | 1 | WASHER | GB | |
||
| 55 | AR1776-50 | 1 | SCREW | GB | |
||
| 56 | AR1776-38 | 1 | CAM | GB | |
||
| 57 | AR1776-46 | 1 | DRIVE | GB | |
||
| 58 | AR1776-47 | 1 | PLATE | GB | |
||
| 59 | AR1776-49 | 1 | GREASE BIT | GB | |
||
| 60 | AR1776-31 | 1 | SCREW | GB | |
||
| 61 | AR175RP-63 | 1 | SEAL | GB | |
