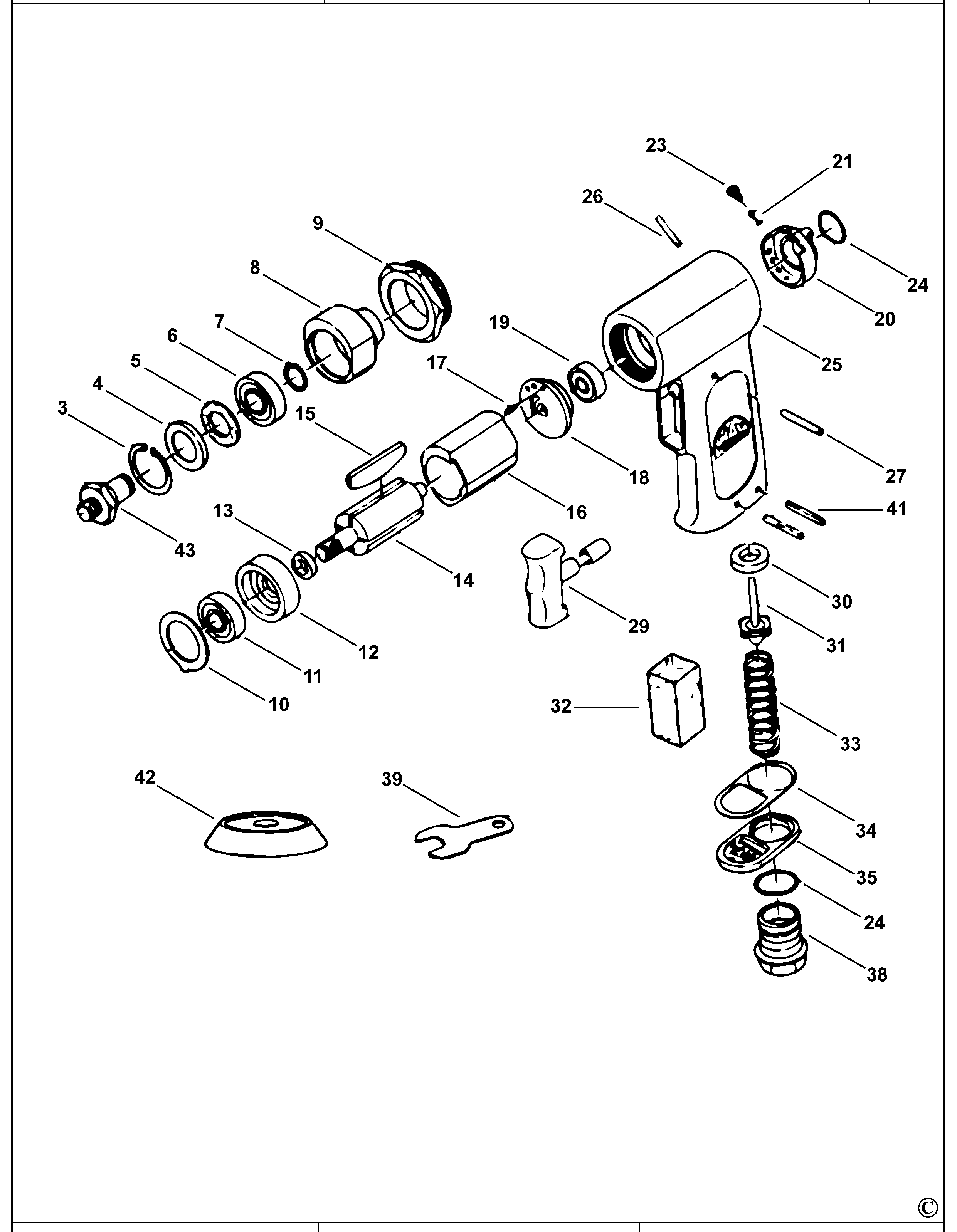

AS517 AIR SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | GB | |||
| 3 | AS517-03 | 1 | RING | GB |  |
||
| 4 | AS517-04 | 1 | SHIM | GB | |
||
| 5 | AS517-05 | 1 | SEAL | GB | |
||
| 6 | AS517-06 | 1 | BEARING | GB | |
||
| 7 | AS517-07 | 1 | RING | GB | |
||
| 8 | AS517-08 | 1 | HUB | GB | |
||
| 9 | AS517-09 | 1 | CLAMP NUT | GB | |
||
| 10 | AS517-10 | 1 | SPACER | GB | |
||
| 11 | ADG200-20 | 1 | BEARING PLATE | GB |  |
||
| 12 | AS517-12 | 1 | PLATE | GB | |
||
| 13 | AS517-13 | 1 | SPACER | GB | |
||
| 14 | AS517-14 | 1 | ROTOR | GB | |
||
| 15 | AR133-14 | 1 | BLADE | GB | |
||
| 16 | AR133-16 | 1 | CYLINDER | GB | |
||
| 17 | AR133-15 | 1 | PIN | GB | |
||
| 18 | AS517-18 | 1 | PLATE | GB | |
||
| 19 | AS517-18 | 1 | PLATE | GB | |
||
| 20 | AS517-20 | 1 | REGULATOR | GB | |
||
| 21 | AW136-18 | 1 | BALL | GB | |
||
| 23 | AW135-07 | 1 | SCREW | GB | |
||
| 24 | AW375-17 | 2 | O RING | GB | |
||
| 25 | AS517-25 | 1 | HOUSING MOTOR | GB | |
||
| 26 | AS517-26 | 1 | PIN | GB | |
||
| 27 | AS517-27 | 1 | PIN | GB | |
||
| 29 | AS517-29 | 1 | TRIGGER | GB | |
||
| 30 | AS517-30 | 1 | VALVE SEAT | GB | |
||
| 31 | AS517-31 | 1 | VALVE | GB | |
||
| 32 | AS517-32 | 3 | FOAM | GB | |||
| 33 | AS517-33 | 1 | SPRING | GB | |
||
| 34 | AW375-19 | 1 | GASKET | GB | |
||
| 35 | AW375-21 | 1 | DEFLECTOR | GB | |
||
| 38 | AS517-38 | 1 | BUSHING | GB | |
||
| 39 | AS517-39 | 1 | SPANNER | GB | |
||
| 41 | AW145-016 | 1 | LEVER | GB | |
||
| 42 | AS517-42 | 1 | SANDING PAD | GB | |
||
| 43 | 000000-00 | 1 | NO LONGER AVAILABLE | GB |
