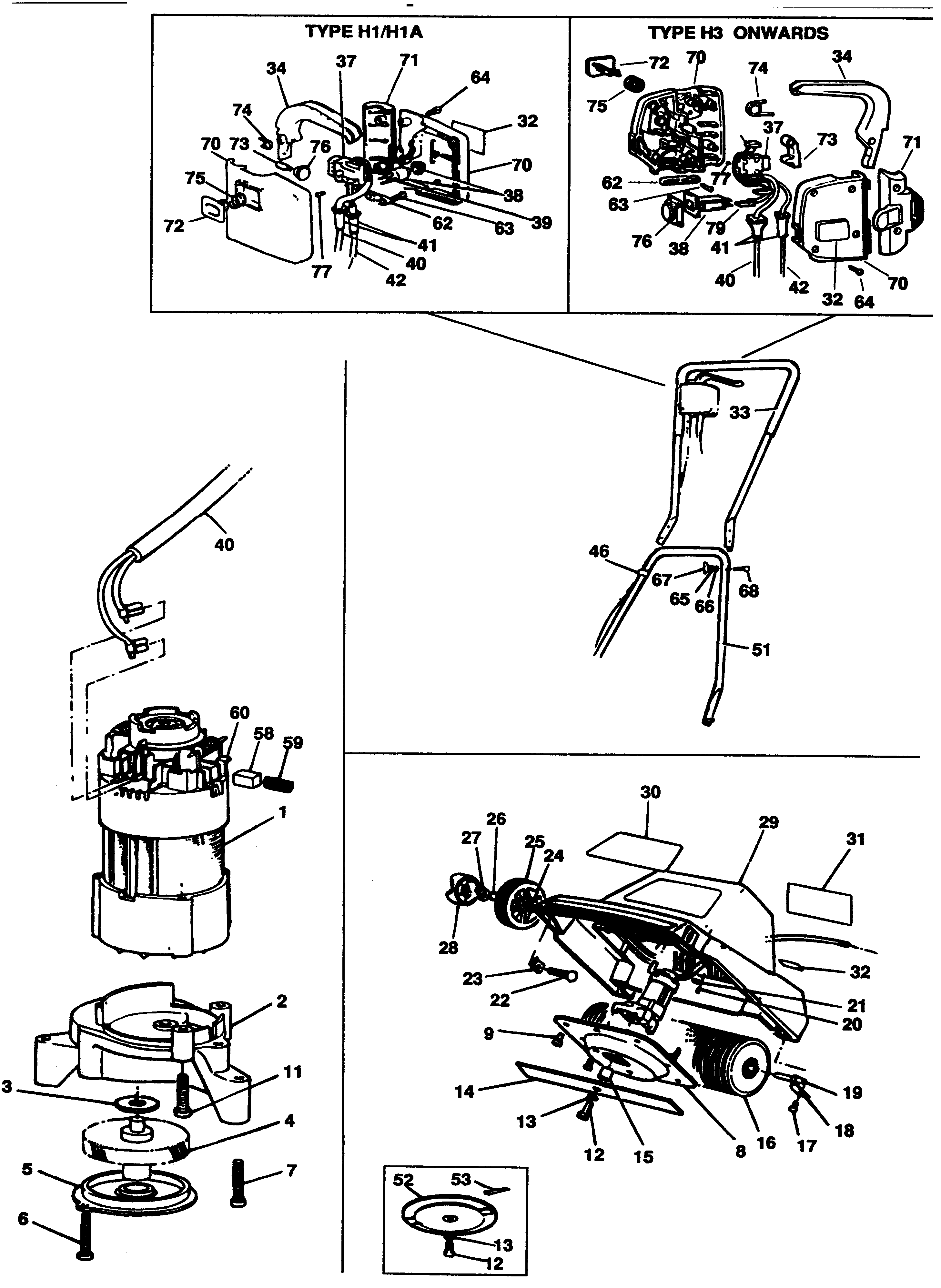

GR104 ROTARY MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 376913-07 | 1 | MOTOR SA | H4 | XJ |  |
|
| 1 | 376913-07 | 1 | MOTOR SA | H1A | XJ | |
|
| 2 | 749827 | 1 | GEARCASE SA | H4 | XJ | |
|
| 2 | 749827 | 1 | GEARCASE SA | H1A | XJ | |
|
| 3 | 892529 | 1 | WASHER THRUST | XJ | |
||
| 5 | 830043 | 1 | GEARCASE COVER SA | H1 | XJ | |
|
| 5 | 749828 | 1 | GEARCASE COVER | H4 | XJ | |
|
| 5 | 749828 | 1 | GEARCASE COVER | H1A | XJ | |
|
| 6 | 812171 | 2 | SCREW | XJ | |
||
| 7 | 745659 | 3 | SCREW.TEMP | XJ | |
||
| 8 | 826549 | 1 | PLATE SA | XJ | |
||
| 9 | 823143 | 7 | SCREW | XJ | |
||
| 11 | 897748 | 3 | SCREW | XJ | |
||
| 12 | 845432 | 1 | SCREW | XJ | |
||
| 13 | 891070 | 1 | WASHER | XJ | |
||
| 14 | 846838 | 1 | BLADE | XJ | |
||
| 15 | 848861 | 1 | SPACER | XJ | |
||
| 16 | 827892 | 1 | ROLLER | XJ | |
||
| 17 | 810269 | 2 | SCREW | XJ | |
||
| 18 | 827884 | 2 | PLATE | XJ | |
||
| 19 | 827883 | 2 | AXLE STUB | XJ | |
||
| 20 | 810269 | 2 | SCREW | XJ | |
||
| 21 | 821070 | 1 | CORD CLAMP | XJ |  |
||
| 22 | 798388 | 2 | SCREW.TEMP | XJ | |
||
| 23 | 884005 | 2 | INDICATOR | XJ | |
||
| 24 | 891070 | 2 | WASHER | XJ | |
||
| 25 | 890717 | 2 | WHEEL | XJ | |
||
| 26 | 830618 | 2 | SPACER | XJ | |
||
| 27 | 891070 | 2 | WASHER | XJ | |
||
| 28 | 798389 | 2 | WHEELHUB SA | XJ | |
||
| 29 | 369745 | 1 | CUTTER COVER | XJ | |
||
| 30 | 746555 | 1 | BRAND LABEL | XJ | |||
| 31 | 839995 | 1 | WARNING LABEL | XJ | |||
| 33 | 799361-01 | 1 | SWITCHBOX | H4 | XJ | |
|
| 33 | 827130 | 1 | SWITCHBOX | H1A | XJ | ||
| 33 | 827130 | 1 | SWITCHBOX | H1 | XJ | ||
| 34 | 827131 | 1 | PLATE | H1A | XJ | |
|
| 34 | 827131 | 1 | PLATE | H1 | XJ | |
|
| 34 | 799364 | 1 | PLATE | H4 | XJ | |
|
| 35 | 795780 | 1 | SWITCH | H4 | XJ | |
|
| 35 | 794164 | 1 | SWITCH | H1A | XJ | |
|
| 35 | 794164 | 1 | SWITCH | H1 | XJ | |
|
| 36 | 373094 | 1 | LEVER | H4 | XJ | |
|
| 36 | 746030 | 1 | LEVER | H1A | XJ | |
|
| 36 | 746030 | 1 | LEVER | H1 | XJ | |
|
| 37 | 846459 | 1 | CUT OUT | H1A | XJ | |
|
| 37 | 846459 | 1 | CUT OUT | H1 | XJ | |
|
| 37 | 805262-01 | 1 | CUT OUT SA | H4 | XJ | |
|
| 38 | 894789 | 1 | CONNECTING WIRE | H1A | XJ | |
|
| 38 | 894789 | 1 | CONNECTING WIRE | H1 | XJ | |
|
| 39 | 746761 | 1 | CABLE SA | H1A | XJ | |
|
| 39 | 746761 | 1 | CABLE SA | H1 | XJ | |
|
| 39 | 805642 | 1 | CABLE SA | H4 | XJ | ||
| 40 | 770235 | 2 | PROTECTOR | XJ | |
||
| 41 | 330048-01 | 1 | CORDSET (EURO) | XJ | |
||
| 42 | 827140 | 2 | CABLE CLAMP | XJ | |
||
| 43 | 810269 | 2 | SCREW | XJ | |
||
| 46 | 795624 | 1 | HANDLE UPPER | XJ | |
||
| 47 | 846588 | 2 | LOWER HANDLE | XJ | |
||
| 53 | 915859 | 2 | CLIP CABLE | XJ | |||
| 55 | 376143 | 2 | BRUSH | XJ | |
||
| 56 | 847709 | 2 | SPRING | XJ | |
||
| 57 | 812738 | 2 | BRUSH HOLDER | XJ | |
||
| 61 | 849256 | 6 | SCREW | XJ | |
||
| 62 | 893809 | 2 | WASHER | XJ | |
||
| 63 | 895141 | 2 | WASHER | XJ | |
||
| 64 | 896288 | 2 | NUT WING | XJ | |
||
| 65 | 899161 | 2 | SCREW | XJ | |
||
| 66 | 746031 | 1 | BUTTON LOCK-OFF | H1A | XJ | |
|
| 66 | 746031 | 1 | BUTTON LOCK-OFF | H1 | XJ | |
|
| 66 | 373092 | 1 | BUTTON LOCK-OFF | H4 | XJ | |
|
| 67 | 827132 | 1 | ACTUATOR | H1A | XJ | |
|
| 67 | 827132 | 1 | ACTUATOR | H1 | XJ | |
|
| 67 | 797929 | 1 | ACTUATOR | H4 | XJ | |
|
| 68 | 827135 | 1 | SPRING | XJ | |
||
| 69 | 827137 | 1 | SPRING | XJ | |
||
| 70 | 851901 | 1 | SEAL | H1A | XJ | |
|
| 70 | 851901 | 1 | SEAL | H1 | XJ | |
|
| 70 | 799174 | 1 | SEAL | H4 | XJ | |
|
| 71 | 990735 | 2 | SCREW | XJ | |
||
| 79 | 799289 | 1 | LEAD | H4 | XJ | |
