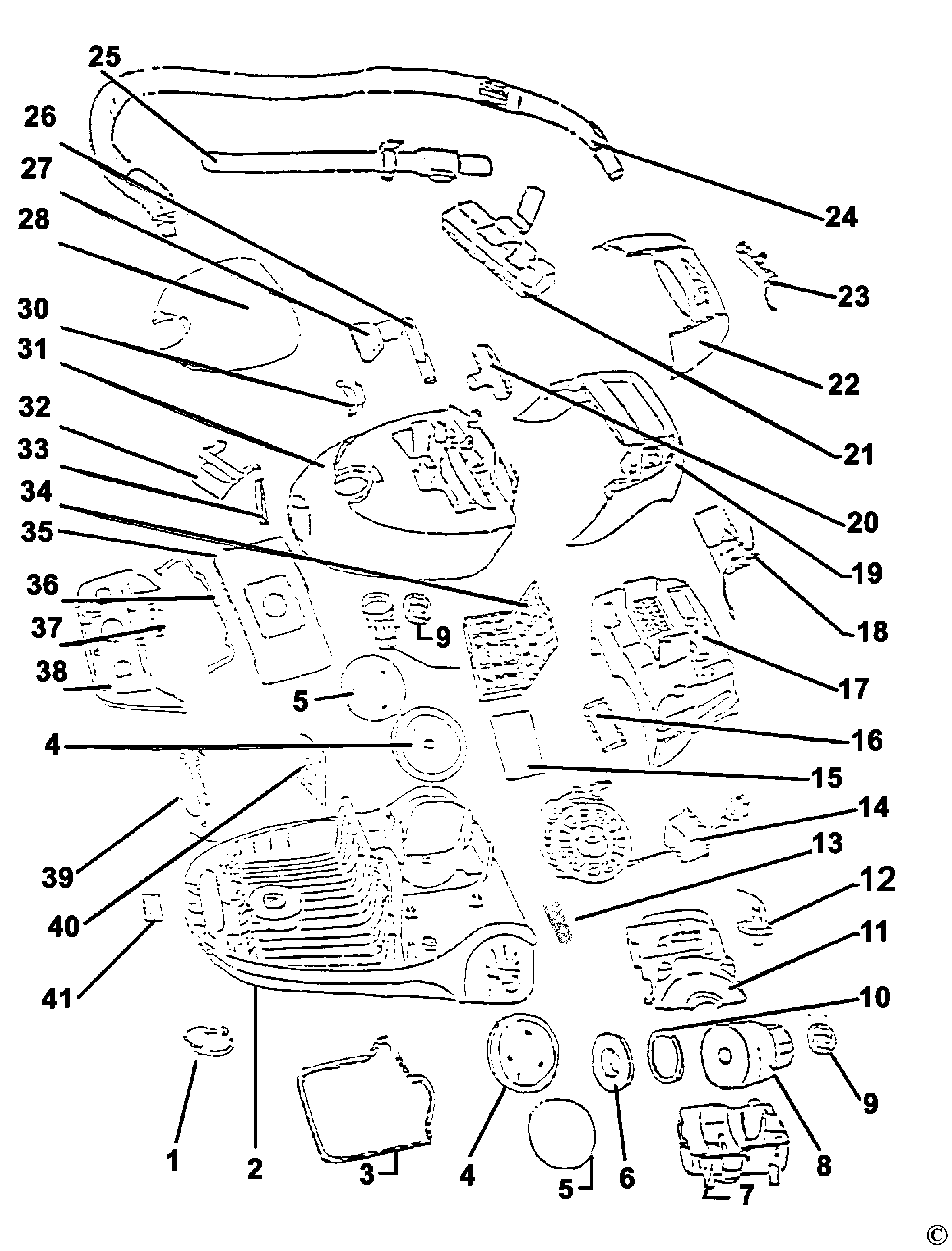

VM400 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010095-01 | 1 | WHEEL | TURNING WHEEL | VM400/1 | XJ | |
| 2 | 6010095-02 | 1 | BASE | VM400/2 | XJ | ||
| 3 | 6010095-03 | 1 | BAR | BOTTOM STEEL BAR | VM400/3 | XJ | |
| 4 | 6010095-04 | 1 | WHEEL | BIG WHEEL | VM400/4 | XJ | |
| 5 | 6010095-05 | 1 | PLATE | WHEEL PLATE | VM400/5 | XJ | |
| 6 | 6010095-06 | 1 | SEAL | MOTOR SEAL RING | VM400/6 | XJ | |
| 7 | 6010095-07 | 1 | HOUSING | MOTOR MASK (LOW) | VM400/7 | XJ | |
| 8 | 6010095-42 | 1 | MOTOR 230V | VM400/8 | XJ | ||
| 8 | 6010095-08 | 1 | PCB 115V | VM400/8A | XJ | ||
| 9 | 6010095-09 | 1 | RING | MOTOR RING | VM400/9 | XJ | |
| 10 | 6010095-10 | 1 | RING | ANTI-SHANK RING | VM400/10 | XJ | |
| 11 | 6010095-11 | 1 | HOUSING | MOTOR MASK (UP) | VM400/11 | XJ | |
| 12 | 6010095-12 | 1 | SENSOR | VM400/12 | XJ | ||
| 13 | 6010095-13 | 1 | WINDOW | CORD OUT WINDOW | VM400/13 | XJ | |
| 14 | 6010095-14 | 1 | RETURN DEVICE ASSEMBLY | 230V | VM400/14 | XJ | |
| 15 | 6010095-15 | 1 | FILTER | AIR OUTLET FILTER | VM400/15 | XJ | |
| 16 | 6010095-16 | 1 | SEAL | FILTER FRAME SEAL RI | VM400/16 | XJ | |
| 17 | 6010095-17 | 1 | COVER | REAR PART | VM400/17 | XJ | |
| 18 | 6010095-08 | 1 | PCB 115V | VM400/8A | XJ | ||
| 18 | 6010095-18 | 1 | PCB 230V | VM400/18 | XJ | ||
| 19 | 6010095-19 | 1 | COVER REAR | VM400/19 | XJ | ||
| 20 | 6010095-20 | 1 | BRUSH | SMALL | VM400/20 | XJ | |
| 21 | 6010094-84 | 1 | BRUSH SA | FLOOR | VM400/21 | XJ |  |
| 22 | 6010095-22 | 1 | SWITCH COVER | VM400/22 | XJ | ||
| 23 | 6010095-23 | 1 | POTENTIOMETER SA | POTENTIO METER | VM400/23 | XJ | |
| 24 | 6010095-24 | 1 | HOSE SA | VM400/24 | XJ | ||
| 25 | 6010095-25 | 1 | TUBE SA | VM400/25 | XJ | ||
| 26 | 6010000-33 | 1 | NOZZLE | CREVICE | VM2033 | XJ | |
| 27 | 6010094-13 | 1 | NOZZLE | VM700-13 | XJ | ||
| 28 | 6010095-28 | 1 | COVER | VM400/28 | XJ | ||
| 30 | 6010095-30 | 1 | LOCK | ACCESSORY LOCK PLATE | VM400/30 | XJ | |
| 31 | 6010095-31 | 1 | COVER | MIDDLE PART | VM400/31 | XJ | |
| 32 | 6010095-32 | 1 | PLATE | LOCK PLATE | VM400/32 | XJ | |
| 33 | 6010095-33 | 1 | SUPPORT | HANDLE SUPPORT | VM400/33 | XJ | |
| 34 | 6010095-34 | 1 | FRAME | FILTER FRAME | VM400/34 | XJ | |
| 35 | 6010095-35 | 1 | DUST BAG SA | VM800-26 | XJ | |
|
| 36 | 6010095-36 | 1 | HANDLE | DUST BAG HANDLE | VM400/36 | XJ | |
| 37 | 6010095-37 | 1 | PLATE | LOCK PLATE FOR DUST | VM400/37 | XJ | |
| 38 | 6010095-38 | 1 | STAND | DUST BAG STAND | VM400/38 | XJ | |
| 39 | 6010095-39 | 1 | PLATE | HANDLE STOPPER | VM400/39 | XJ | |
| 40 | 6010095-40 | 1 | FILTER | VM400/40 | XJ | ||
| 41 | 6010095-41 | 1 | DOOR | SMALL | VM400/41 | XJ |
