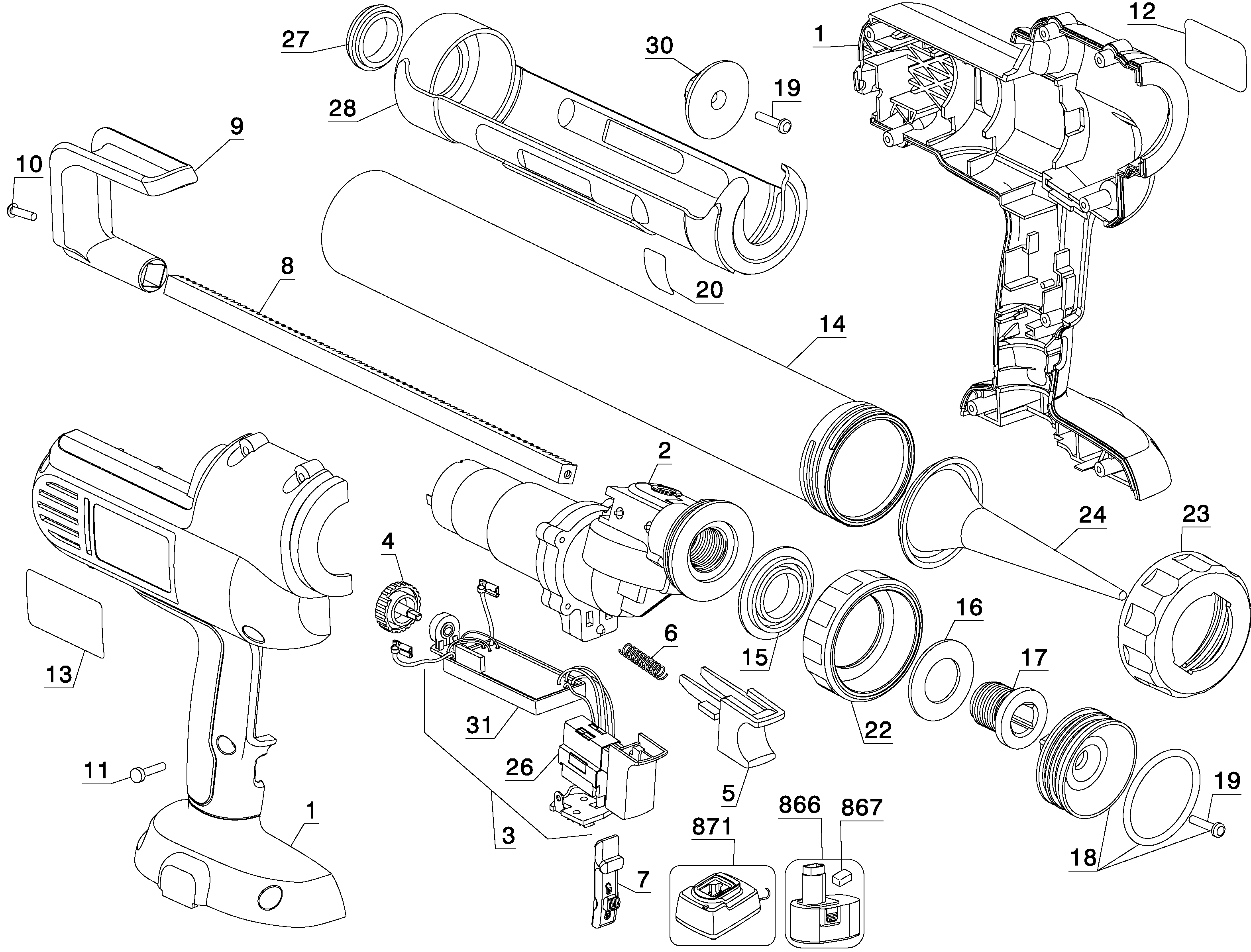

DC547 CAULK GUN Type 11 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N080442 | 1 | CLAMSHELL SET | 18V | XJ |  |
|
| 2 | 639717-00 | 1 | MOTOR & GEARCASE | XJ |  |
||
| 3 | N082217 | 1 | SWITCH SA | Incl. #26 | XJ | |
|
| 4 | 639011-00 | 1 | SPEED REGULATOR | XJ | |
||
| 5 | 636615-00 | 1 | TRIGGER | XJ | |
||
| 6 | 642413-00 | 1 | SPRING | XJ | |
||
| 7 | N044600 | 1 | BUTTON LOCK-OFF | XJ | |
||
| 8 | 642410-00 | 1 | PUSHROD | 310 ml | Short Plunger rod (310 ml) | XJ | |
| 8 | 642408-00 | 1 | PUSHROD | XJ | |
||
| 9 | 639061-00 | 1 | HANDLE | XJ | |
||
| 10 | 642474-00 | 1 | SCREW | XJ | |
||
| 11 | 330019-04 | 8 | SCREW | XJ | |
||
| 12 | 642732-00 | 1 | IDENTITY LABEL | XJ | |
||
| 13 | N082368 | 1 | RATING PLATE | XJ | |
||
| 14 | 642473-00 | 1 | TUBE SA | 600 ml | Incl. 8, 14 - 19, 22 - 24 | XJ | |
| 14 | 637898-00 | 1 | TUBE SA | Incl. 10,15, 16, 17, 22-24 | XJ | |
|
| 15 | 640340-00 | 1 | SPACER | XJ | |
||
| 16 | 640827-00 | 1 | WASHER | XJ | |
||
| 17 | 641739-00 | 1 | LOCK SCREW | XJ | |
||
| 18 | 659569-00 | 1 | SERVICE KIT | DCE5801 | XJ | |
|
| 19 | 642414-00 | 1 | SCREW | XJ | |
||
| 20 | 648980-00 | 1 | WARNING LABEL | 310 ml | XJ | |
|
| 22 | 637649-00 | 1 | END CAP | XJ | |
||
| 23 | 637651-00 | 1 | CAP | XJ | |||
| 24 | 1007832-00 | 1 | NOZZLE | XJ | |
||
| 26 | N044601 | 1 | SWITCH | XJ | |
||
| 27 | 640207-00 | 1 | SPACER | XJ | |
||
| 28 | 637823-00 | 1 | TUBE SUPPORT | XJ | |
||
| 28 | 642471-00 | 1 | TUBE SUPPORT | 10oz | Incl. 8, 19, 20, 27, 28, 30 | XJ | |
| 30 | 639729-00 | 1 | PLUNGER | XJ | |
||
| 31 | N082217 | 1 | SWITCH SA | XJ | |
||
| 866 | DE9503 | 1 | BATTERY 18V - 2.6AH | NiMH - RoHS | XJ | ||
| 867 | 645221-00 | 1 | CAP | XJ | |
||
| 871 | DE9116 | 1 | CHARGER 7.2V - 18V | Ni-Cad - NiMH - 1 hr | XJ |
