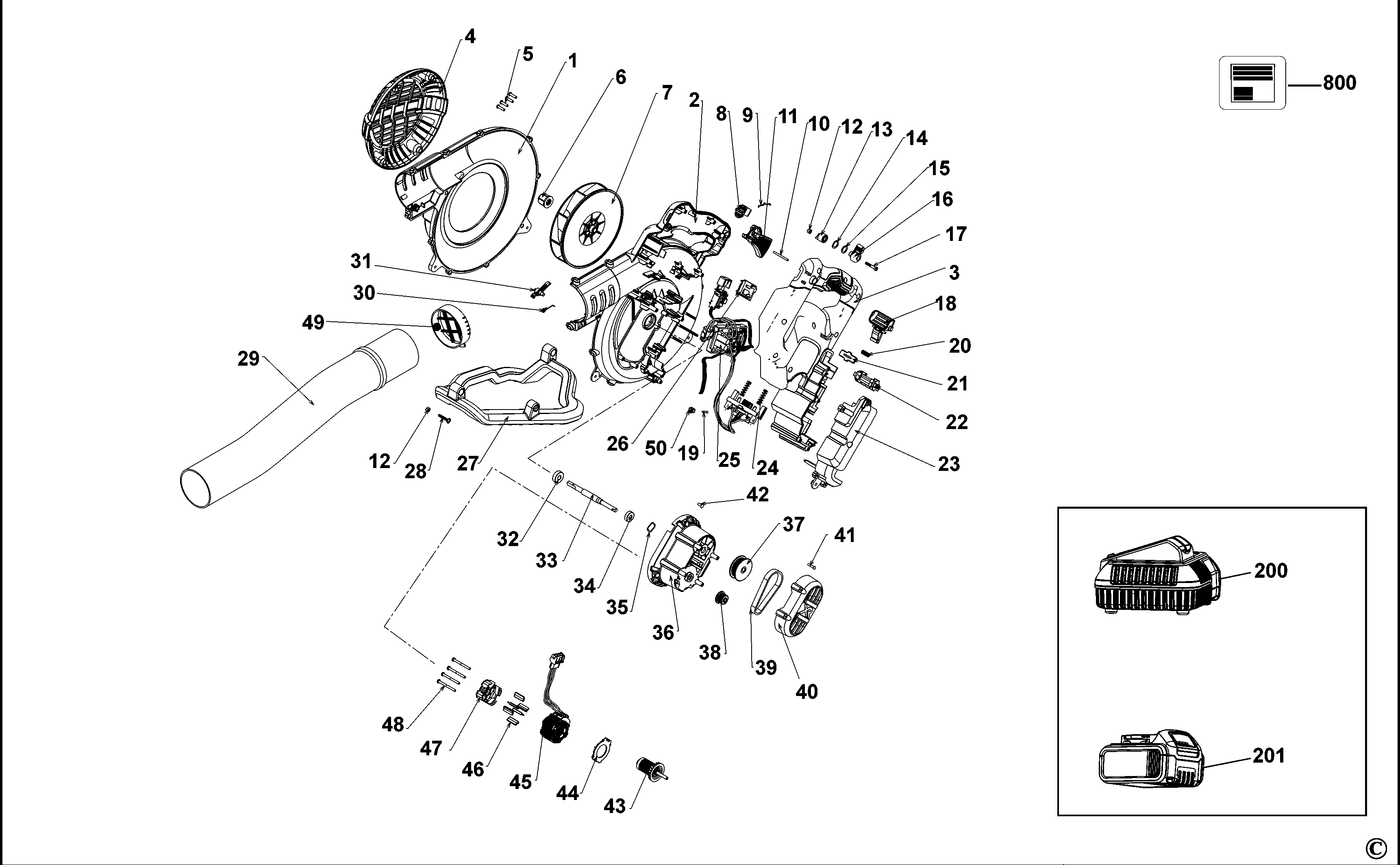

DCM582 BLOWER VAC Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90604697 | 1 | HOUSING | XJ |  |
||
| 2 | 90604696 | 1 | HOUSING | XJ | |
||
| 3 | 90605813 | 1 | COVER | XJ | |||
| 4 | 90639117 | 1 | COVER | XJ |  |
||
| 5 | 90611830 | 30 | SCREW | XJ | |
||
| 6 | 90556361 | 1 | LOCK-NUT | XJ | |
||
| 7 | 90614555 | 1 | FAN SA | XJ | |
||
| 8 | 90610298 | 1 | SWITCH | XJ | |
||
| 9 | N014681 | 1 | LEAF SPRING | XJ | |
||
| 10 | 90614091 | 1 | PIN | XJ | |
||
| 11 | 90605685 | 1 | TRIGGER | XJ | |
||
| 12 | 90610773 | 4 | NUT M4 | XJ | |
||
| 13 | 90605734 | 1 | CAM | XJ | |
||
| 14 | 90605688 | 1 | SPRING | XJ | |
||
| 15 | 90608646 | 1 | WASHER THRUST | XJ | |
||
| 16 | 90605686 | 1 | ACTUATOR | XJ | |
||
| 17 | 90611827 | 1 | SCREW | M4 X 25 | XJ | |
|
| 18 | 90606556 | 1 | BUTTON | XJ | |
||
| 19 | 330019-31 | 1 | SCREW | XJ | |
||
| 20 | 90606558 | 2 | SPRING | XJ | |
||
| 21 | 90607453 | 1 | SUPPORT | XJ | |
||
| 22 | 90606555 | 1 | LATCH | XJ | |
||
| 23 | 90605818 | 1 | BATTERY CASE SA | XJ | |
||
| 24 | 90629425 | 2 | SPRING | XJ | |
||
| 25 | 90606949-01 | 1 | MODULE | XJ | |
||
| 26 | 90605114 | 1 | SWITCH | XJ | |
||
| 27 | 90628769 | 1 | FOOT | XJ | |
||
| 28 | 90610772 | 3 | SCREW | XJ | |
||
| 29 | 90639346 | 1 | TUBE | XJ | |
||
| 30 | 90609997 | 1 | SPRING TORSION | XJ | |
||
| 31 | 90605748 | 1 | CLIP | XJ | |
||
| 32 | N110359 | 1 | BEARING | XJ | |
||
| 33 | 90604689 | 1 | DRIVE SHAFT | XJ | |
||
| 34 | 605040-03 | 1 | BEARING BALL | XJ | |
||
| 35 | 90609683 | 1 | WASHER | XJ | |
||
| 36 | 90606964 | 1 | HOUSING | XJ | |
||
| 37 | 90604687 | 1 | PULLEY | XJ | |
||
| 38 | 90623555 | 1 | PULLEY | XJ | |
||
| 39 | 90611527 | 1 | BELT | XJ | |
||
| 40 | N566863 | 1 | COVER | XJ | |
||
| 41 | 90611828 | 4 | SCREW | XJ | |
||
| 42 | 90611829 | 4 | SCREW | XJ | |
||
| 43 | N525881 | 1 | ROTOR SA | XJ | |
||
| 44 | N128894 | 1 | BAFFLE | XJ | |
||
| 45 | N525880 | 1 | STATOR | XJ | |
||
| 46 | N181083 | 6 | INSERT | XJ | |
||
| 47 | N191091 | 1 | MOUNT | PCA Mount | XJ | |
|
| 48 | N306085 | 4 | SCREW | XJ | |
||
| 49 | 90638746 | 1 | GRILL | XJ | |
||
| 50 | 90611771 | 1 | CLIP | XJ | |
||
| 201 | N517081 | 1 | BATTERY 36V - 6.0AH - 216KW | Li-Ion - DCB496 | XJ | |
|
| 800 | N502709 | 1 | RATING LABEL | DCM582N | XJ | |
