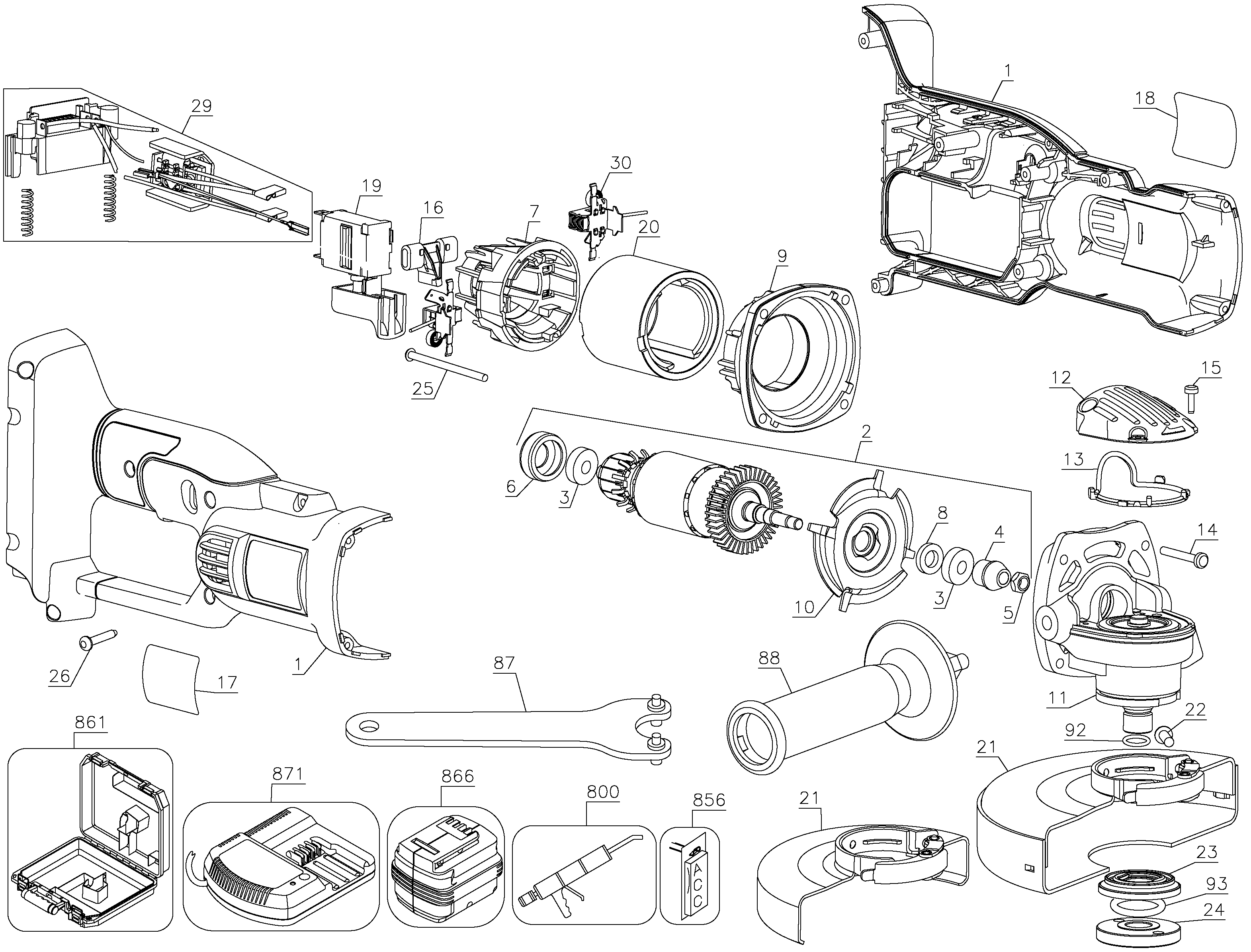

DC413KL 28V NANO SAG Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 640876-00 | 1 | CLAMSHELL SET | 28 volt | GB |  |
|
| 2 | 647256-00 | 1 | ARMATURE SA | Incl. 3,4,5,6,8,10 | GB | |
|
| 3 | N110359 | 2 | BEARING | GB |  |
||
| 4 | 623564-00 | 1 | PINION | 9 TOOTH | GB | |
|
| 5 | 604484-00 | 1 | NUT | M6 | GB | |
|
| 6 | 631563-00 | 1 | BOOT | GB | |
||
| 7 | N171820 | 1 | SUPPORT BEARING | GB | |
||
| 8 | 623617-00 | 1 | FELT SEAL | GB | |
||
| 9 | N027986 | 1 | BAFFLE FAN | GB | |
||
| 10 | N422242 | 1 | RETAINER | GB | |
||
| 11 | 623586-02SV | 1 | GEAR CASE ASSY. | GB | |||
| 12 | 623562-00 | 1 | GEARCASE COVER | GB | |
||
| 13 | 623618-00 | 1 | GASKET | GB | |
||
| 14 | 330065-13 | 4 | SCREW | GB | |
||
| 15 | 385676-01 | 4 | SCREW | GB | |
||
| 16 | 646976-00 | 1 | BUTTON LOCK-OFF | GB | |
||
| 17 | 653631-00 | 1 | RATING PLATE | DC413 Ty.1 Euro | GB | |
|
| 18 | 646006-00 | 1 | IDENTITY LABEL | GB | |
||
| 19 | 641216-00 | 1 | SWITCH SA | GB | |
||
| 20 | 611202-00SV | 1 | MAGNET | GB | |
||
| 21 | 661329-00 | 1 | GUARD SA | GB | |
||
| 21 | 643772-00 | 1 | GUARD SA | 4.5IN CUTOFF (TYPE1) | GB | |
|
| 22 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | GB | |
|
| 23 | 633257-00SV | 1 | INNER FLANGE SA | INCL. 93 | GB | |
|
| 24 | 622613-02 | 1 | OUTER FLANGE | M14 | GB | |
|
| 25 | 330019-25 | 2 | SCREW | GB | |
||
| 26 | 330019-04 | 6 | SCREW | GB | |
||
| 29 | 647040-00 | 1 | LEAD SA | GB | |
||
| 30 | 610126-00 | 2 | BRUSHBOX SA | GB | |
||
| 87 | 401680-00 | 1 | WRENCH | GB | |
||
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | GB | |
|
| 92 | 633044-00 | 1 | O RING | 10.82x1.78 | GB | |
|
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | GB | |
|
| 800 | 761995-01 | 1 | GREASE | 180 Grams | GB | ||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | GB | ||
| 856 | DW8062 Z | 1 | 4-1/2X.045X7/8 WHL | GB | |||
| 861 | 647578-00 | 1 | KITBOX | GB | |
||
| 866 | DE9280-EC | 1 | BATTERY PACK | 28V | GB | ||
| 871 | DE9000 | 1 | CHARGER 28V - 36V | Li-Ion | GB |
