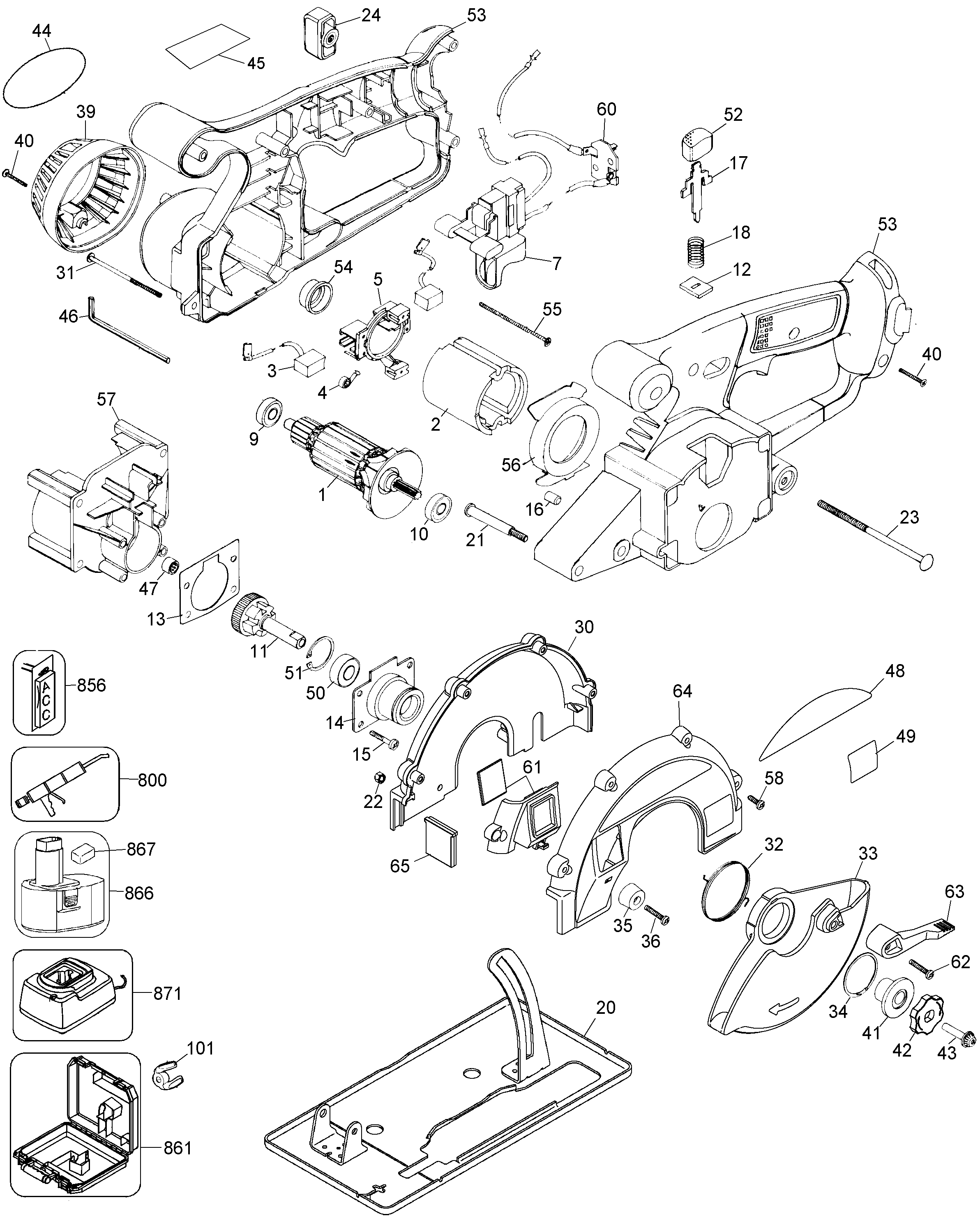

DW934 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 603229-00SV | 1 | ARMATURE & FAN | 8 TEETH | XJ |  |
|
| 2 | 388232-01SV | 1 | MAGNET | XJ | |
||
| 3 | 387558-01 | 2 | BRUSH & LEAD | XJ | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | XJ |  |
||
| 5 | 382178-01 | 1 | BRUSH FRAME | XJ | |
||
| 7 | 613049-00 | 1 | SWITCH SA | XJ | |
||
| 9 | 330003-04 | 1 | BEARING | XJ | |||
| 10 | 330003-04 | 1 | BEARING | XJ | |||
| 11 | 606741-00SV | 1 | SPINDLE ASSY. | 37 TEETH | XJ | ||
| 12 | 393004-00 | 1 | WIPER | XJ | |
||
| 13 | 393005-00 | 1 | GASKET | XJ | |
||
| 14 | 393007-00 | 1 | GEARCASE COVER | XJ | |
||
| 15 | 330045-06 | 4 | SCREW | XJ | |
||
| 16 | 032731-00 | 1 | PLUG | XJ | |||
| 17 | 150389-00 | 1 | SPINDLE LOCK | XJ | |
||
| 18 | 058698-00 | 1 | SPRING | XJ | |
||
| 20 | 603790-00 | 1 | SHOE SA | XJ | |
||
| 21 | 396631-00 | 1 | SCREW | XJ | |
||
| 22 | 148641-00 | 2 | LOCK-NUT | XJ | |
||
| 23 | 098128-97 | 1 | BOLT | XJ | |
||
| 24 | 395889-00 | 1 | KNOB | XJ | |
||
| 30 | 603781-00 | 1 | GUARD UPPER | XJ | |
||
| 31 | 398987-00 | 4 | SCREW | XJ | |
||
| 32 | 611473-00 | 1 | SPRING | XJ | |
||
| 33 | 604981-00 | 1 | GUARD LOWER | XJ | |
||
| 34 | 150383-00 | 1 | RETAINER | XJ | |
||
| 35 | N248899 | 1 | BUMPER | XJ | |
||
| 36 | 393473-00 | 1 | SCREW.SPECIAL | XJ | |
||
| 39 | 150386-00 | 1 | END CAP | XJ | |
||
| 40 | 330019-04 | 7 | SCREW | XJ | |
||
| 41 | 647631-00 | 1 | INNER FLANGE | XJ | |||
| 42 | 610669-00 | 1 | WASHER OUTER CLAMP | XJ | |
||
| 43 | 150384-00 | 1 | BLADE BOLT | L.H. | XJ | |
|
| 44 | 396062-00 | 1 | IDENTITY LABEL | XJ | |
||
| 46 | 497570-02 | 1 | KEY | 4mm | XJ | |
|
| 47 | 093128-00 | 1 | BEARING NEEDLE | XJ | |
||
| 48 | 612955-00 | 1 | IDENTITY LABEL | XJ | |
||
| 49 | 613001-00 | 1 | IDENT LABEL | XJ | |||
| 50 | 605040-15 | 1 | BEARING,BALL | NPP | XJ | |
|
| 51 | 037464-00 | 1 | RETAINING RING | XJ | |||
| 52 | 145350-00 | 1 | BUTTON | XJ | |
||
| 53 | 395987-00 | 1 | CLAMSHELL | XJ | |
||
| 54 | 445217-02 | 1 | SLEEVE | XJ | |
||
| 55 | 448269-00 | 2 | SCREW | XJ | |
||
| 56 | 150370-00 | 1 | FAN | XJ | |
||
| 57 | 392999-00 | 1 | GEARCASE | INC. 9, 47 | XJ | |
|
| 58 | 611622-00 | 4 | SCREW | PAN HD. MACHINE | XJ | |
|
| 60 | 285371-00 | 1 | TERMINAL BLOCK | XJ | |
||
| 61 | 603783-00 | 1 | WINDOW | XJ | |
||
| 62 | 330045-16 | 1 | SCREW | XJ | |
||
| 63 | 604925-00 | 1 | LEVER | XJ | |
||
| 64 | 603782-00 | 1 | GUARD | XJ | |
||
| 65 | 605568-00 | 1 | WINDOW | XJ | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | 1-LB | XJ | |
