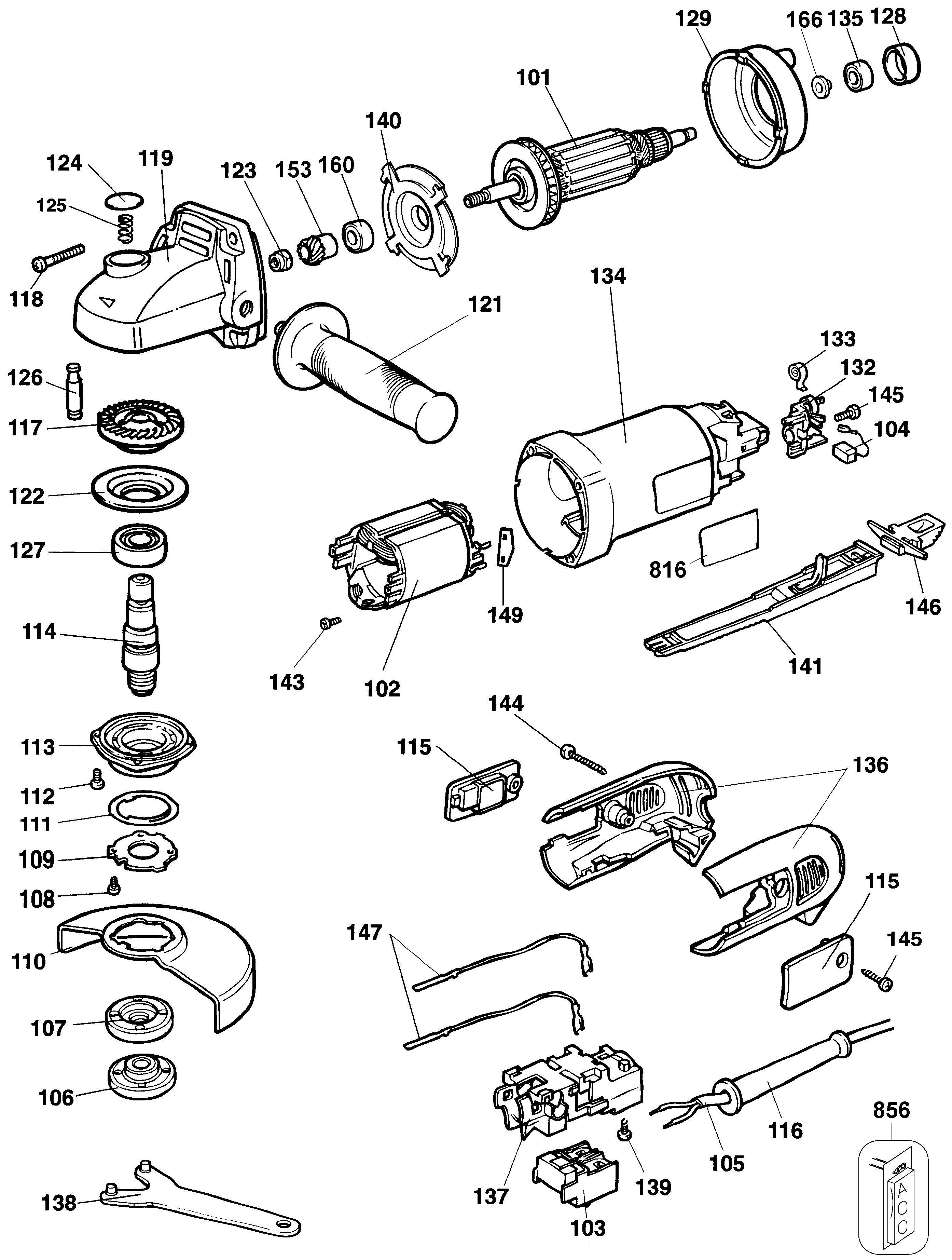

DW806 SMALL ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 401702-10 | 1 | ARMATURE 230V | GB |  |
||
| 102 | 395991-00 | 1 | FIELD 230V | GB | |
||
| 103 | 945614-00 | 1 | SWITCH | GB |  |
||
| 104 | 939539-01 | 2 | BRUSH CUT OFF | GB | |
||
| 105 | 949770-38 | 1 | CABLE | GB | |
||
| 106 | 947214-00 | 1 | OUTER FLANGE | GB | |
||
| 107 | 391968-00 | 1 | INNER FLANGE | GB | |
||
| 108 | 562160-06 | 3 | SCREW | GB | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | GB | |
||
| 110 | 944675-00 | 1 | GUARD | GB | |
||
| 111 | 393576-00 | 1 | RING | GB | |
||
| 112 | 562160-01 | 4 | SCREW | GB | |||
| 113 | 945298-00 | 1 | GEARCASE COVER | GB | |
||
| 114 | 622210-00 | 1 | SPINDLE | GB | |
||
| 115 | 401963-02 | 2 | COVER BRUSH | GB | |
||
| 116 | 330005-01 | 1 | CORD PROTECTOR | GB | |||
| 117 | 390701-00 | 1 | GEAR | 36T | GB | ||
| 118 | 562097-01 | 4 | SCREW | GB | |
||
| 119 | 562304-01SV | 1 | GEARCASE SA | GB | |
||
| 121 | 573115-00 | 1 | SIDE HANDLE | GB | |
||
| 122 | 945299-00 | 1 | FLANGE | GB | |
||
| 123 | 945292-00 | 1 | NUT | GB | |
||
| 124 | 944575-00 | 1 | BUTTON | GB | |
||
| 125 | 562210-00 | 1 | SPRING | GB | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | GB | |
||
| 127 | 605040-22 | 1 | BEARING | GB | |
||
| 128 | 930275-00 | 1 | SLEEVE | GB | |
||
| 129 | 401623-00 | 1 | BAFFLE | GB | |
||
| 132 | 949880-05 | 2 | BRUSH HOLDER SA | INCL. SPRING | GB | |
|
| 133 | 562204-00 | 2 | SPRING | GB | |
||
| 134 | 396373-00 | 1 | FIELDCASE | GB | |
||
| 135 | 605040-02 | 1 | BEARING | GB | |
||
| 136 | 401973-00 | 1 | HANDLE SA | GB | |
||
| 137 | 401595-00 | 1 | SWITCH SUPPORT | GB | |
||
| 138 | 401253-00 | 1 | WRENCH ROUND-PINS | GB | |
||
| 139 | 562097-04 | 1 | SCREW | GB | |
||
| 140 | 401622-01 | 1 | FLANGE | GB | |
||
| 141 | 401256-00 | 1 | SWITCH LEVER | GB | |||
| 143 | 562097-07 | 2 | SCREW | GB | |||
| 144 | 562097-06 | 2 | SCREW | GB | |
||
| 145 | 562097-00 | 4 | SCREW | GB | |
||
| 146 | 401259-01 | 1 | BUTTON LOCK-ON | GB | |
||
| 147 | 949801-99 | 2 | LEAD | GB | |
||
| 149 | 402489-00 | 2 | PAD | GB | |
||
| 153 | 562100-01 | 1 | PINION | 11T | GB | |
|
| 160 | N110359 | 1 | BEARING | GB | |
||
| 166 | 398906-00 | 1 | SPACER INSULATING | GB | |
||
| 816 | 946194-00 | 1 | BRAND LABEL | GB | |
||
| 856 | 562086-04 | 1 | GRINDING WHEEL | GB |
