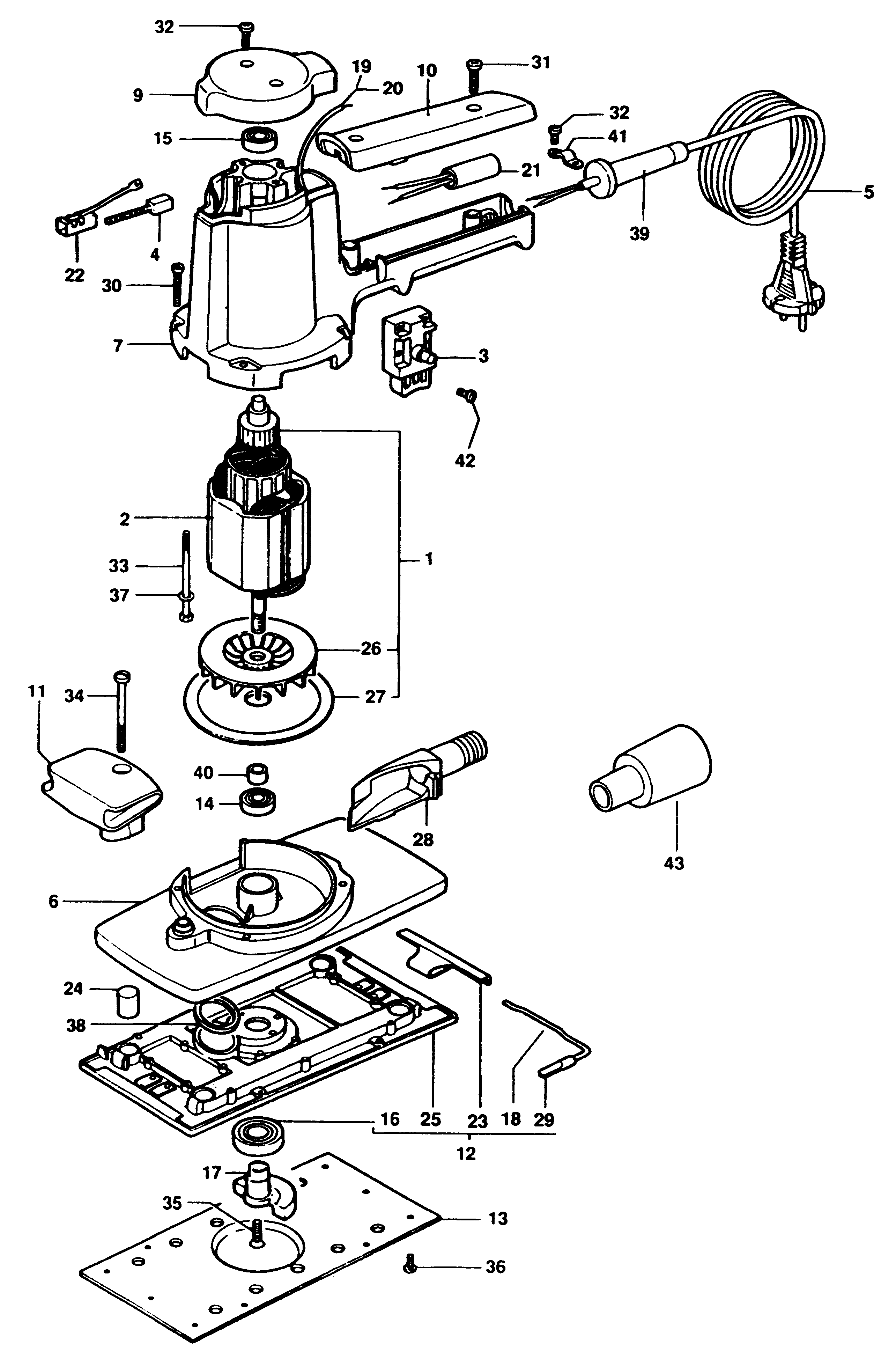

P6303 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 736356 | 1 | ARMATURE | GB |  |
||
| 2 | 733840 | 1 | FIELD | GB | |
||
| 3 | 953088 | 1 | SWITCH | GB | |
||
| 4 | 916424 | 2 | FSO BRUSH | GB | |
||
| 5 | 330060-45 | 1 | CORDSET (M/PLUG) | GB | |
||
| 6 | 732866 | 1 | GEARCASE | GB | |
||
| 7 | 733827 | 1 | FIELDCASE | GB | |
||
| 9 | 733828 | 1 | COVER | GB | |
||
| 10 | 730622 | 1 | COVER | GB | |
||
| 11 | 731526 | 1 | HANDLE | GB | |
||
| 12 | 736970 | 1 | BASEPLATE | GB | |
||
| 13 | 736972 | 1 | PAD | GB | |
||
| 14 | 605040-05 | 1 | BEARING | GB |  |
||
| 15 | 142830000 | 1 | BEARING | GB | |
||
| 16 | 915541 | 1 | BEARING | GB | |
||
| 17 | 736969 | 1 | ECCENTRIC | GB | |
||
| 18 | 732873 | 2 | LEVER | GB | |
||
| 19 | 322076 | 1 | LEAD 160MM BLACK | GB | |
||
| 20 | 322075 | 1 | LEAD 210MM BLACK | GB | |
||
| 21 | 321384 | 1 | CAPACITOR | GB | |
||
| 22 | 733829 | 2 | BRUSH HOLDER | GB | |
||
| 23 | 732872 | 2 | GRIP | GB | |
||
| 24 | 954752 | 4 | POST | GB | |
||
| 28 | 730645 | 1 | PIPE | GB | |
||
| 29 | 732874 | 1 | GRIP | GB | |
||
| 30 | 323924-17 | 4 | SCREW | GB | |
||
| 31 | 323924-17 | 2 | SCREW | GB | |
||
| 32 | 894748 | 4 | O RING | GB | |
||
| 33 | 736416 | 2 | SCREW | GB | |
||
| 34 | 911880 | 1 | SCREW | GB | |
||
| 35 | 733564 | 1 | SCREW | GB | |
||
| 36 | 735722 | 8 | SCREW | GB | |
||
| 37 | 322475 | 2 | WASHER | GB | |
||
| 38 | 732876 | 1 | FELT | GB | |
||
| 39 | 859013 | 1 | PROTECTOR | GB | |
||
| 40 | 732875 | 1 | SPACER | GB | |
||
| 41 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 42 | 911026 | 2 | SCREW | GB | |
||
| 43 | 324423-00 | 1 | ADAPTOR | GB | |
