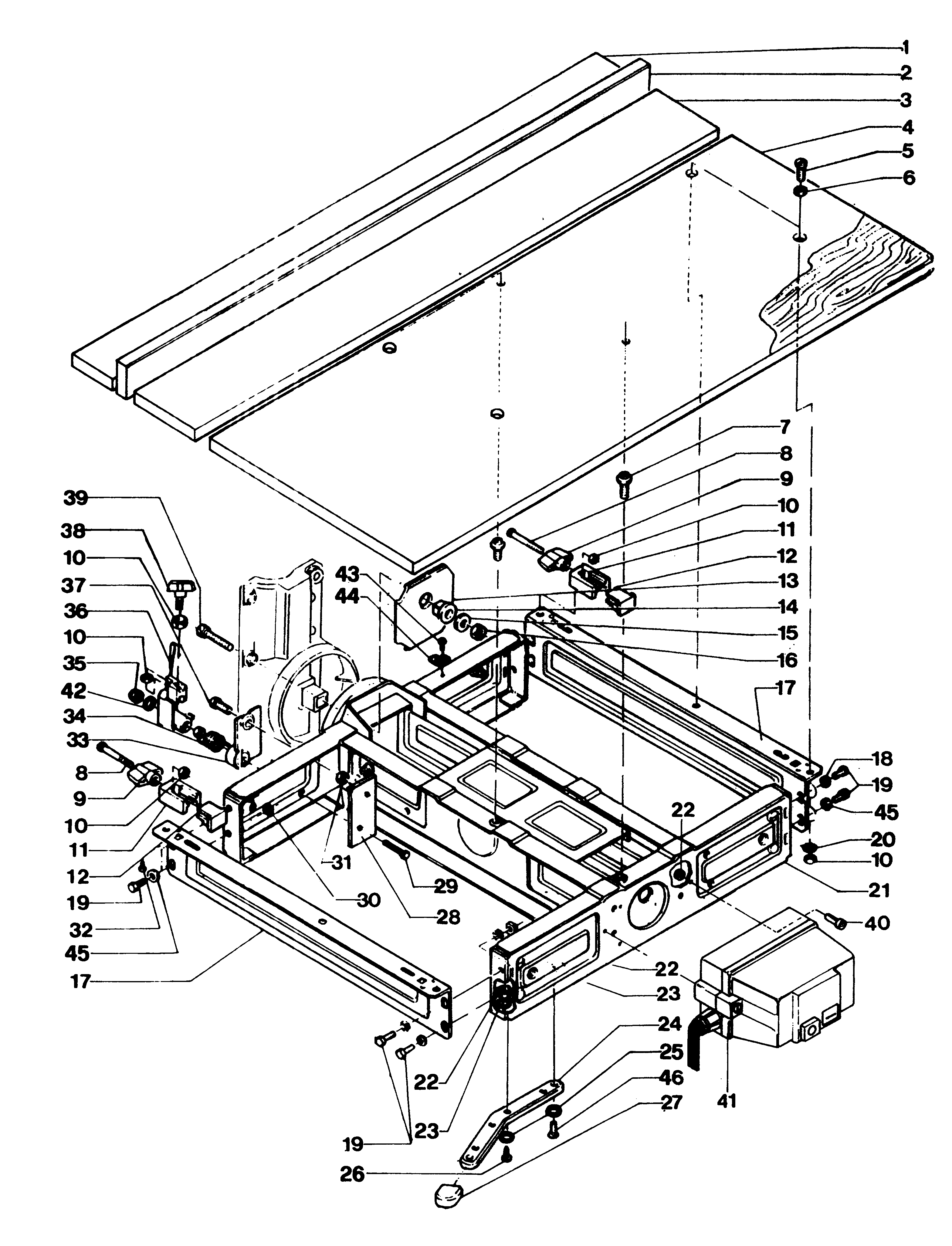

DW1201----D RADIAL ARM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 55227 | 1 | TABLE | TABLE AND FRAME | XJ |  |
|
| 2 | 55228 | 1 | FENCE | TABLE AND FRAME | XJ | |
|
| 3 | 55226 | 1 | TABLE | TABLE AND FRAME | XJ | |
|
| 4 | 55225 | 1 | TABLE | TABLE AND FRAME | XJ | |
|
| 5 | 941518-00 | 1 | SCREW | TABLE AND FRAME | XJ |  |
|
| 6 | 860075-00 | 4 | WASHER | TABLE AND FRAME | XJ | |
|
| 7 | 760565-01 | 1 | STUD | TABLE AND FRAME | XJ | |
|
| 9 | 863310-00 | 2 | KNOB | TABLE AND FRAME | XJ | |
|
| 10 | 860083-03 | 2 | NUT | TABLE AND FRAME | XJ | |
|
| 11 | 31069 | 2 | CLAMP | TABLE AND FRAME | XJ | |
|
| 12 | 31068 | 2 | BLOCKING DEVICE | TABLE AND FRAME | XJ | |
|
| 13 | 131072 | 1 | FLANGE | TABLE AND FRAME | XJ | |
|
| 14 | 31066 | 1 | BUSH | TABLE AND FRAME | XJ | |
|
| 15 | 860073-04 | 1 | WASHER | TABLE AND FRAME | XJ | |
|
| 16 | 860083-05 | 1 | NUT RH | TABLE AND FRAME | XJ | |
|
| 17 | 133277 | 1 | STRIP | TABLE AND FRAME | XJ | |
|
| 18 | 933055-00 | 4 | WASHER | TABLE AND FRAME | XJ | |
|
| 19 | 860085-07 | 8 | SCREW | TABLE AND FRAME | XJ | |
|
| 20 | 860074-02 | 1 | WASHER | TABLE AND FRAME | XJ | |
|
| 22 | 860083-02 | 4 | NUT | TABLE AND FRAME | XJ | |
|
| 23 | 860073-01 | 4 | WASHER | TABLE AND FRAME | XJ | |
|
| 24 | 863104-00 | 4 | BRACKET | TABLE AND FRAME | XJ | |
|
| 25 | 860075-01 | 4 | WASHER | TABLE AND FRAME | XJ | |
|
| 26 | 760998-00 | 4 | SCREW | TABLE AND FRAME | XJ | |
|
| 27 | 32044 | 4 | RUBBER | TABLE AND FRAME | XJ | |
|
| 28 | 31649 | 1 | PLATE | TABLE AND FRAME | XJ | |
|
| 29 | 860085-23 | 32 | SCREW | TABLE AND FRAME | XJ | |
|
| 30 | 11266 | 1 | NUT | TABLE AND FRAME | XJ | |
|
| 31 | 860083-04 | 1 | NUT | TABLE AND FRAME | XJ | |
|
| 32 | 860084-05 | 4 | SCREW | TABLE AND FRAME | XJ | |
|
| 33 | 76443 | 1 | SUPPORT | TABLE AND FRAME | XJ | |
|
| 35 | 860092-05 | 1 | NUT | TABLE AND FRAME | XJ | |
|
| 36 | 76442 | 1 | CLAMP | TABLE AND FRAME | XJ | |
|
| 37 | 860085-03 | 1 | BOLT | TABLE AND FRAME | XJ | |
|
| 38 | 863310-00 | 1 | KNOB | TABLE AND FRAME | XJ | |
|
| 39 | 860085-05 | 1 | SCREW | TABLE AND FRAME | XJ | |
|
| 40 | 860089-17 | 1 | SCREW.TEMP | TABLE AND FRAME | XJ | |
|
| 42 | 860073-03 | 1 | WASHER M8 | TABLE AND FRAME | XJ | |
|
| 43 | 860084-03 | 1 | SCREW | TABLE AND FRAME | XJ | |
|
| 44 | 860843-02 | 1 | BRACKET | TABLE AND FRAME | XJ | |
|
| 45 | 720959-00 | 1 | WASHER | TABLE AND FRAME | XJ | |
|
| 46 | 860084-10 | 4 | SCREW | TABLE AND FRAME | XJ | |
