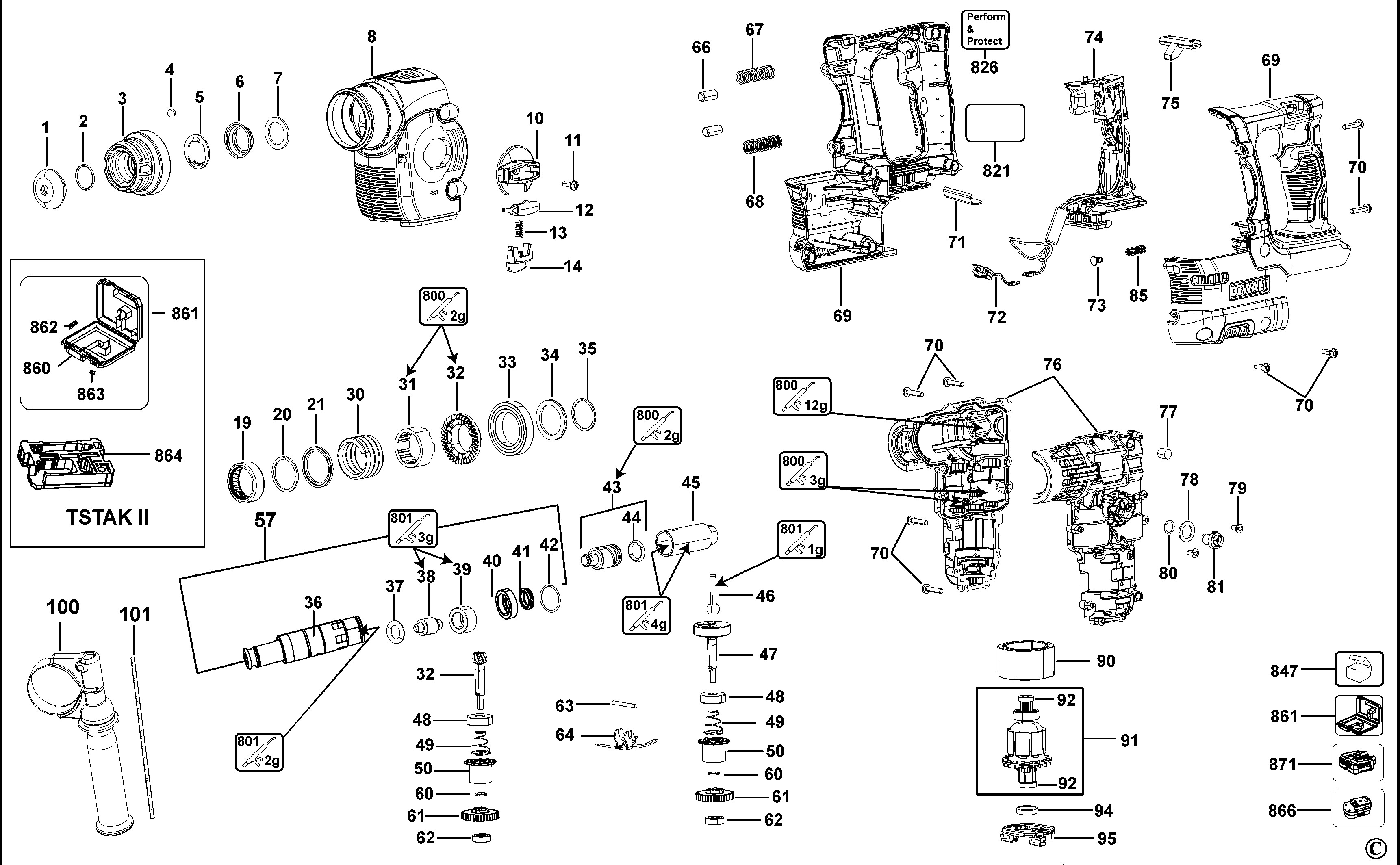

DCH253 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | XJ |  |
||
| 2 | 579212-00 | 1 | RING | XJ | |
||
| 3 | N504215 | 1 | TUBE | XJ | |
||
| 4 | 583890-00 | 1 | BALL | XJ | |
||
| 5 | 578387-00 | 1 | WASHER | XJ | |
||
| 6 | 871690 | 1 | SPRING | XJ | |
||
| 7 | 590306-00 | 1 | FELT SEAL | XJ | |
||
| 8 | N137915 | 1 | COVER GEARCASE | XJ |  |
||
| 10 | N190510 | 1 | SELECTOR | XJ | |
||
| 11 | 324006-16 | 1 | SCREW | XJ | |
||
| 12 | N034134 | 1 | COVER | XJ | |
||
| 13 | N074923 | 1 | SPRING | XJ | |
||
| 14 | N190511 | 1 | BUTTON RELEASE | XJ | |
||
| 19 | N149956 | 1 | BEARING NEEDLE | XJ | |
||
| 20 | 488105-00 | 1 | CLIP | XJ | |
||
| 21 | N043423 | 1 | WASHER | XJ | |
||
| 30 | N060009 | 1 | SPRING | XJ | |
||
| 31 | N072203 | 1 | RING | XJ | |
||
| 32 | N290001 | 1 | GEAR & PINION SA | XJ | |
||
| 33 | 479478-00 | 1 | BEARING,BALL | 6906 | XJ | |
|
| 34 | N043424 | 1 | WASHER | XJ | |
||
| 35 | 488390-00 | 1 | CLIP | SW26 1.5mm | XJ | |
|
| 36 | N918448 | 1 | SPINDLE SA | XJ | |
||
| 36 | N918449 | 1 | SPINDLE | XJ | |
||
| 37 | N394276 | 1 | O RING | XJ | |
||
| 38 | 492808-00 | 1 | BEAT PIECE | NQCC | XJ | |
|
| 39 | N470388 | 1 | TUBE GUIDE | XJ | |
||
| 39 | N531681 | 1 | WASHER | XJ | |
||
| 40 | N451068 | 1 | RETAINER | XJ | |
||
| 41 | 580990-00 | 1 | O RING | XJ | |
||
| 42 | N294259 | 1 | RING | XJ | |
||
| 43 | N178363 | 1 | RAM SA | 19mm; Inc 222+223 | XJ | |
|
| 44 | N114827 | 1 | O RING | Dynamic 13x3 | XJ | |
|
| 45 | 492822-00 | 1 | PISTON | XJ | |
||
| 46 | 492823-00 | 1 | BALL SPINDLE | XJ | |
||
| 47 | N288223 | 1 | CRANKSHAFT | XJ | |
||
| 48 | N168103 | 2 | BEARING | XJ | |
||
| 49 | N466046 | 2 | SPRING COMPRESSION | XJ | |
||
| 50 | N150085 | 1 | COLLAR | XJ | |
||
| 57 | N918448 | 1 | SPINDLE SA | XJ | |
||
| 60 | 323763-10 | 2 | LOCKING RING | 8; | XJ | |
|
| 61 | N450704 | 2 | GEAR SA | XJ | |
||
| 62 | N621023 | 2 | BEARING | XJ | |
||
| 63 | 590312-00 | 1 | PIN | XJ | |
||
| 64 | 575022-00 | 1 | PLATE | XJ | |
||
| 66 | 575032-00 | 2 | PIN | XJ | |
||
| 67 | 575030-00 | 1 | SPRING | XJ | |
||
| 68 | 479313-00 | 1 | SPRING | XJ | |
||
| 69 | N288221 | 1 | CLAMSHELL PAIR | 18v 2P | XJ | |
|
| 70 | 330019-80 | 16 | SCREW | XJ | |
||
| 71 | N094649 | 1 | PLATE | XJ | |
||
| 72 | N051450 | 1 | LED | XJ | |
||
| 73 | N122099 | 1 | BLOCK | XJ | |
||
| 75 | N072124 | 1 | LEVER | XJ | |
||
| 76 | N288219 | 1 | HOUSING SA | 3 MODE | XJ | |
|
| 77 | 582865-00 | 1 | FILTER | XJ | |
||
| 78 | 1006725-00 | 1 | WASHER SHIM | 12x18x1.2 | XJ | |
|
| 79 | 330065-04 | 2 | SCREW | XJ | |
||
| 80 | 323711-34 | 1 | O RING | XJ | |
||
| 81 | 575025-00 | 1 | LEVER | XJ | |
||
| 85 | N119679 | 1 | SPRING | XJ | |
||
| 90 | N230576 | 1 | MAGNET | 26mm | XJ | ||
| 92 | N217452 | 1 | BEARING,BALL | 695 | XJ | ||
| 94 | N076342 | 1 | COVER | XJ | |
||
| 100 | N112156 | 1 | HANDLE SIDE SA | XJ | |
||
| 101 | 580787-00 | 1 | DEPTH STOP | XJ | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | XJ | |
|
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | XJ | |
|
| 826 | N196274 | 1 | LABEL | PERFORM & PROTECT | XJ | |
|
| 860 | H1400196008 | 2 | HANDLE | DCH253NT-XJ | XJ | ||
| 861 | N279261 | 1 | KITBOX | DCH253NT-XJ | XJ | |
|
| 861 | 576657-05 | 1 | KITBOX | XJ | |
||
| 862 | H1500082520 | 2 | LATCH | DCH253NT-XJ | XJ | ||
| 863 | P910190 | 2 | LATCH | DCH253NT-XJ | XJ | |
|
| 864 | N565020 | 1 | INSERT | DCH253NT-XJ | XJ | |
