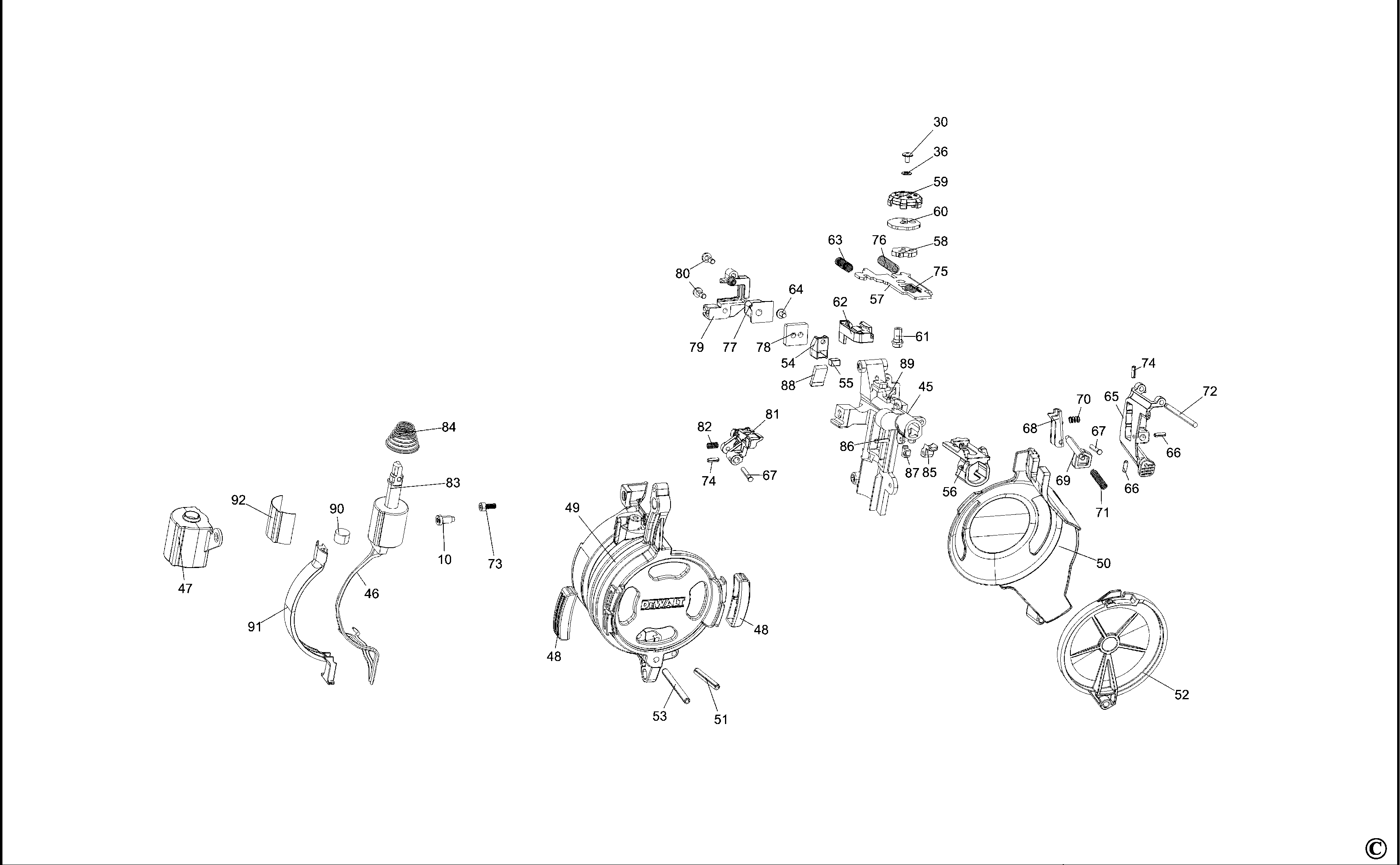

DCN45RN COIL NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N859048 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | N606768 | 1 | BUTTON LOCK-OFF | GB | |
||
| 3 | N859236 | 1 | END CAP | GB | |
||
| 4 | N607664 | 1 | LENS | GB | |
||
| 5 | 330019-13 | 5 | SCREW | M4X19 T20 | GB | |
|
| 6 | 330019-24 | 8 | SCREW | GB | |
||
| 10 | N113536 | 1 | SCREW | GB | |
||
| 11 | N465817 | 1 | LEVER | Stall Release | GB | |
|
| 12 | N666247 | 5 | SCREW | M5x0.8x8 PATCHLOCK | GB | |
|
| 13 | N772267 | 1 | SPRING | GB | |
||
| 14 | N562653 | 2 | LOCATOR | MOTOR | GB | |
|
| 15 | N477247 | 2 | SCREW | GB | |
||
| 16 | 650974-00 | 4 | CONNECTOR | GB | |
||
| 17 | N594120 | 1 | GUIDE | GB | |
||
| 18 | N719223 | 1 | PIN | RETURN CROSS | GB | |
|
| 19 | 330019-11 | 3 | SCREW | M4.55x13 T20 | GB | |
|
| 20 | N468984 | 3 | O RING | 4mm | GB | |
|
| 21 | N389357 | 1 | PIN | GB | |
||
| 22 | N552965 | 1 | HOLDER | UPPER BUMPER RET. | GB | |
|
| 23 | N554489 | 1 | RETAINER | UPPER BUMPER | GB | |
|
| 24 | N555289 | 1 | RAIL | BUMPER | GB | |
|
| 25 | N275023 | 1 | SPRING | GB | |
||
| 26 | N565763 | 1 | PROFILE | GB | |||
| 27 | N088833 | 2 | WASHER | GB | |
||
| 28 | N088831 | 1 | BUMPER | GB | |
||
| 29 | N192671 | 1 | CAP | GB | |
||
| 30 | N734819 | 1 | SCREW | M3.5 x 6mm T15 | GB | |
|
| 31 | N549961 | 1 | RAIL | GB | |
||
| 32 | N717849 | 1 | BUMPER | UPPER LEFT | GB | |
|
| 33 | N717850 | 1 | BUMPER | UPPER RIGHT | GB | |
|
| 34 | N624713 | 1 | LIFTER | RETAINER | GB | |
|
| 35 | N582925 | 1 | CARRIAGE | GB | |
||
| 36 | N760345 | 2 | WASHER | OD8.5 ID4.55 Thk 0.6 | GB | |
|
| 37 | N554740 | 1 | CARRIER | PINCH ROLLER | GB | ||
| 38 | N748090 | 1 | PIN | CARRIER LOCKOUT | GB | |
|
| 39 | 854004 | 2 | WASHER | GB | |
||
| 40 | N748088 | 1 | PIN | SOLENOID | GB | |
|
| 41 | 330019-10 | 2 | SCREW | GB | |
||
| 42 | N657871 | 1 | SOLENOID ASSEMBLY | PTO | GB | |
|
| 43 | N858334 | 1 | MOTOR SA | GB | |
||
| 44 | N552518 | 1 | FRAME | GB | |
||
| 45 | N596751 | 1 | NOSE | GB | |
||
| 46 | N552958 | 1 | SOLENOID ASSEMBLY | FEED | GB | |
|
| 47 | N553678 | 1 | CLAMP | SOLENOID | GB | |
|
| 48 | N854218 | 2 | BUMPER | CANISTER GUARD | GB | |
|
| 49 | N596222 | 1 | CANISTER | GB | |
||
| 50 | N596224 | 1 | COVER | GB | |
||
| 51 | N649096 | 1 | ROLL PIN | M5 x 30mm | GB |  |
|
| 52 | N629458 | 1 | TRAY | MAGAZINE | GB | |
|
| 53 | N649097 | 1 | ROLL PIN | M5 x 50mm | GB | |
|
| 54 | N551196 | 1 | HOLDER | GB | |
||
| 55 | N659195 | 1 | MAGNET | GB | |
||
| 56 | N556497 | 1 | TRIP SA | GB | |
||
| 57 | N719021 | 1 | TRIP SA | UPPER | GB | |
|
| 58 | N614516 | 1 | CAM | DEPTH ADJUST | GB | |
|
| 59 | N614530 | 1 | KNOB | DEPTH ADJUST | GB | |
|
| 60 | N614526 | 1 | WASHER | DEPTH ADJUST | GB | |
|
| 61 | N614533 | 1 | PIN | DEPTH ADJUST KNOB | GB | |
|
| 62 | N585739 | 1 | ACTUATOR | CONTACT TRIP | GB | |
|
| 63 | N392036 | 1 | SPRING | DRY FIRE LOCK OUT | GB | |
|
| 64 | 949894-06 | 1 | SCREW | GB | |
||
| 65 | N612701 | 1 | DOOR | GB | |
||
| 66 | N638486 | 2 | ROLL PIN | Dia 3mm x 10mm long | GB | |
|
| 67 | N618840 | 1 | AXLE | CHECK PAWL | GB | |
|
| 68 | N618755 | 1 | PAWL | GB | |
||
| 69 | N612412 | 1 | LATCH | GB | |
||
| 70 | N564896 | 1 | SPRING | CHECK PAWL | GB | |
|
| 73 | 608177-00 | 1 | SCREW | M4 x 10 | GB | |
|
| 74 | N638486 | 2 | ROLL PIN | Dia 3mm x 10mm long | GB | |
|
| 75 | N660409 | 1 | SPRING | DEPTH ADJUST | GB | ||
| 76 | N564889 | 1 | SPRING | CONTACT TRIP | GB | |
|
| 78 | N551500 | 1 | DAMPER | LOWER BUMPER | GB | |
|
| 79 | N556774 | 1 | RETAINER | LOWER BUMPER | GB | |
|
| 80 | N605427 | 2 | SCREW | M4 X 12 T20 | GB | |
|
| 81 | N611860 | 1 | PAWL | GB | |
||
| 82 | N638808 | 1 | SPRING | FEED PAWL | GB | |
|
| 83 | N552959 | 1 | PLUNGER | FEED | GB | |
|
| 84 | N558974 | 1 | SPRING | FEED | GB | |
|
| 85 | N586178 | 1 | LIFTER | GB | |
||
| 86 | N589968 | 1 | AXLE | TIP LIFTER | GB | |
|
| 87 | N594212 | 1 | LIFTER | GB | |
||
| 88 | N638168 | 1 | BRUSH | DEBRIS | GB | |
|
| 89 | N511697 | 1 | MAGNET | FILTER | GB | |
|
| 90 | N575468 | 1 | STOP | FEED SOLENOID BUMP | GB | |
|
| 91 | N596223 | 1 | COVER | GB | |
||
| 92 | N657541 | 1 | PAD | FEED SOLENOID GAP | GB | |
|
| 94 | N859234 | 1 | SWITCH SA | DCN45RN EU | GB | |
|
| 95 | N403241 | 1 | SCREW | M3x0.5x8 MACHINE | GB | |
|
| 98 | N042665 | 1 | SCREW | GB | |
||
| 99 | N268241 | 1 | HOOK SA | BELT HOOK, W/SCREW AND INSTRUCTIONS | GB | |
|
| 700 | N885472 | 1 | RATING PLATE | DCN45RN EU | GB | |
|
| 706 | N828722 | 1 | LABEL | End Cap | GB | |
|
| 707 | N760642 | 1 | LABEL | ICON | GB | |
|
| 708 | N760643 | 1 | WARNING LABEL | EU | GB | |
