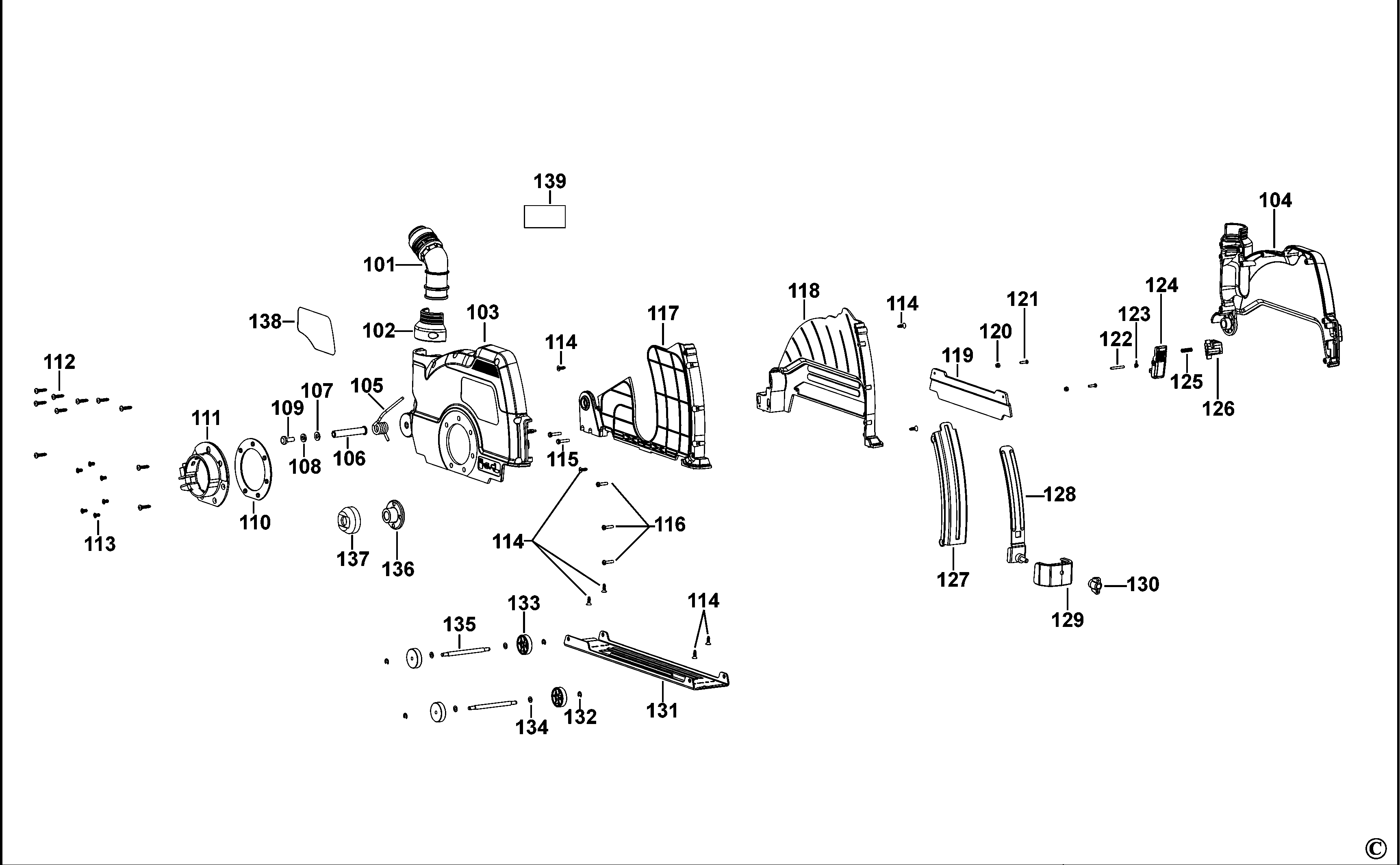

DWE46229 DUST COLLECTOR Type 1 | Drawings
Documents
- DWE46225_DWE46229_SK_A4_200420.pdf
- DWE46225_DWE46229_CZ_A4_200420.pdf
- BALKAN
- NA049515_DWE46225_DWE46229_T1_EANZ.pdf
- Hungary
- Romanian
- Russia Ukraine Россия Україна
- Bulgarian
- DWE46225_DWE46229_HU_A5_200420.pdf
- DWE46225_DWE46229_PL_A5_200420.pdf
- Czech
- Bulgarian
- Baltic
- DWE46225_DWE46229_PL_A4_200420.pdf
- Hungary
- Pоссия и Украина
- DWE46225_DWE46229_HU_A4_200420.pdf
- DWE46225_DWE46229_SK_A5_200420.pdf
- Baltic
- DWE46225_DWE46229_CZ_A5_200420.pdf
- Romanian
- BALKAN
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | N645894 | 1 | DUST PORT | XJ |  |
||
| 102 | N657928 | 1 | COVER | XJ | |
||
| 103 | N657926 | 1 | CLAMSHELL HALF | XJ | |
||
| 104 | N657927 | 1 | CLAMSHELL HALF | XJ | |
||
| 105 | N662825 | 1 | SPRING | XJ | |
||
| 106 | N661802 | 1 | PIN | XJ | |
||
| 107 | N743974 | 1 | WASHER | XJ | |
||
| 108 | 098197-10 | 1 | WASHER LOCK | XJ | |
||
| 109 | 153778-01 | 1 | SCREW | XJ | |
||
| 110 | N657950 | 1 | BACKPLATE | XJ | |
||
| 111 | N657991 | 1 | CLAMPING INSERT | XJ | |
||
| 112 | 330065-08 | 10 | SCREW | M4x18 T20 | XJ | |
|
| 113 | N530541 | 5 | SCREW | XJ | |
||
| 114 | N760652 | 8 | PLASTIC SCREW | XJ | |
||
| 115 | 90611830 | 2 | SCREW | XJ | |
||
| 116 | 330019-66 | 3 | SCREW | XJ | |
||
| 117 | N661758 | 1 | GUARD LOWER | XJ | |
||
| 118 | N657930 | 1 | GUARD LOWER | XJ | |
||
| 119 | N657935 | 1 | WINDOW | XJ | |
||
| 120 | N116219 | 2 | NUT | XJ | |
||
| 121 | 478455-00 | 2 | SCREW | XJ | |
||
| 122 | N646432 | 1 | PIN | XJ | |
||
| 123 | N770509 | 1 | SPRING | XJ | |
||
| 124 | N645897 | 1 | LOCK HOOK | XJ | |
||
| 125 | N646434 | 1 | SPRING | XJ | |
||
| 126 | N657920 | 1 | BUTTON | XJ | |
||
| 127 | N657945 | 1 | STRAP | XJ | |
||
| 128 | N661738 | 1 | SLIDER SA | XJ | |
||
| 129 | N657932 | 1 | BRACKET | XJ | |
||
| 130 | N646428 | 1 | KNOB | XJ | |
||
| 131 | N657943 | 1 | SHOE | XJ | |
||
| 132 | 386957-00 | 4 | CLIP | XJ |  |
||
| 133 | N703830 | 4 | WHEEL | XJ | |
||
| 134 | N774538 | 4 | WASHER | XJ | |
||
| 135 | N703811 | 2 | AXLE | XJ | |
||
| 136 | N670342 | 1 | OUTER FLANGE | XJ | |
||
| 137 | N670340 | 1 | INNER FLANGE | XJ | |
||
| 138 | NA050140 | 1 | RATING LABEL | XJ | |
||
| 139 | N776045 | 1 | LABEL | XJ | |
