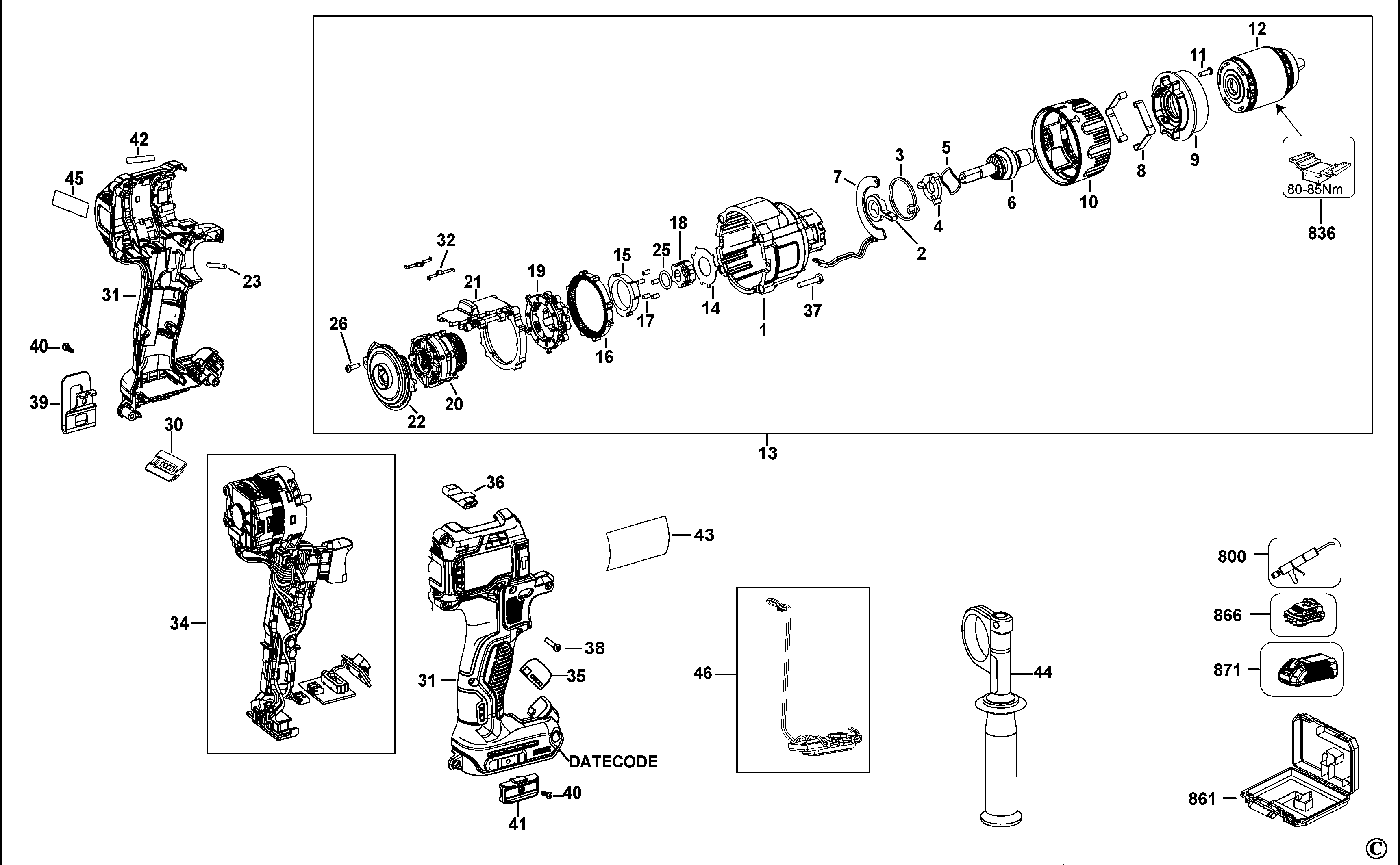

DCD997 CORDLESS DRILL 18V LI-ION Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N484226 | 1 | GEARCASE SA | GB |  |
||
| 2 | N146719 | 1 | LEVER | GB | |
||
| 3 | N316079 | 1 | SPRING | GB | |
||
| 4 | N149367 | 1 | GEAR | GB | |
||
| 5 | N269741 | 1 | WASHER SPRING | GB | |
||
| 6 | N481785 | 1 | SPINDLE SA | GB | |
||
| 7 | N481813 | 1 | SENSOR | GB | |
||
| 8 | N165352 | 2 | DETENT | GB | |
||
| 9 | N161216 | 1 | END CAP | GB | |||
| 10 | N443281 | 1 | COLLAR | GB | |
||
| 11 | N359062 | 3 | SCREW | M3 X 12 | GB | |
|
| 12 | N454251 | 1 | CHUCK KEYLESS | GB | |
||
| 13 | N470351 | 1 | GEARBOX SA | GB | |
||
| 14 | 652378-00 | 1 | PLATE | GB | |
||
| 15 | N375852 | 1 | LOCKING RING | GB | |
||
| 16 | N375864 | 1 | GEAR | GB | |
||
| 17 | 654110-00 | 5 | ROLLER | GB | |
||
| 18 | N481809 | 1 | ANVIL | GB | |
||
| 19 | N375865 | 1 | GEAR SA | GB | |
||
| 20 | N481798 | 1 | GEAR SA | GB | |
||
| 21 | N375867 | 1 | SLIDER SA | GB | |
||
| 22 | N375868 | 1 | BAFFLE SA | GB | |
||
| 23 | N071836 | 2 | ROLL PIN | GB | |
||
| 25 | N309119 | 1 | O RING | 10.82 ID - 1.78 DIA | GB | |
|
| 26 | N281559 | 2 | SCREW | T10 - M3 THD FORM | GB | |
|
| 30 | N470512 | 1 | SWITCH | TOOL CONNECT | GB | |
|
| 31 | N504297 | 1 | CLAMSHELL | GB | |
||
| 32 | N014681 | 2 | LEAF SPRING | GB | |
||
| 34 | N559205 | 1 | MOTOR & SWITCH SA | GB | |
||
| 35 | N485905 | 1 | LABEL | BLE selector label | GB | |
|
| 36 | N431555 | 1 | ACTUATOR FWD/REV | GB | |
||
| 37 | 330019-52 | 4 | SCREW | GB | |
||
| 38 | 682211-00 | 8 | SCREW | GB | |
||
| 39 | N086039 | 1 | HOOK | GB | |
||
| 40 | N042665 | 2 | SCREW | GB | |
||
| 41 | N475326 | 1 | HOLDER BIT | GB | |
||
| 42 | N237999 | 1 | LABEL | 18V | GB | |
|
| 43 | N516574 | 1 | RATING LABEL | DCD997 Type 1 | GB | |
|
| 44 | N433408 | 1 | SIDE HANDLE | Length 234 mm | GB | |
|
| 45 | N317859 | 1 | LABEL | BRUSHLESS | GB | |
|
| 46 | N559221 | 1 | MODULE | TOOL CONNECT | GB | |
|
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | GB | |
|
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | GB | |
||
| 836 | 596004-99 | 1 | S.T.INSERT | GB | |
||
| 861 | N506511 | 1 | KITBOX | T-STAK | GB | |
|
| 866 | N436213 | 1 | BATTERY 18V - 5.0AH - 90WH | DCB184B BLUETOOTH | DCD997P2B | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
