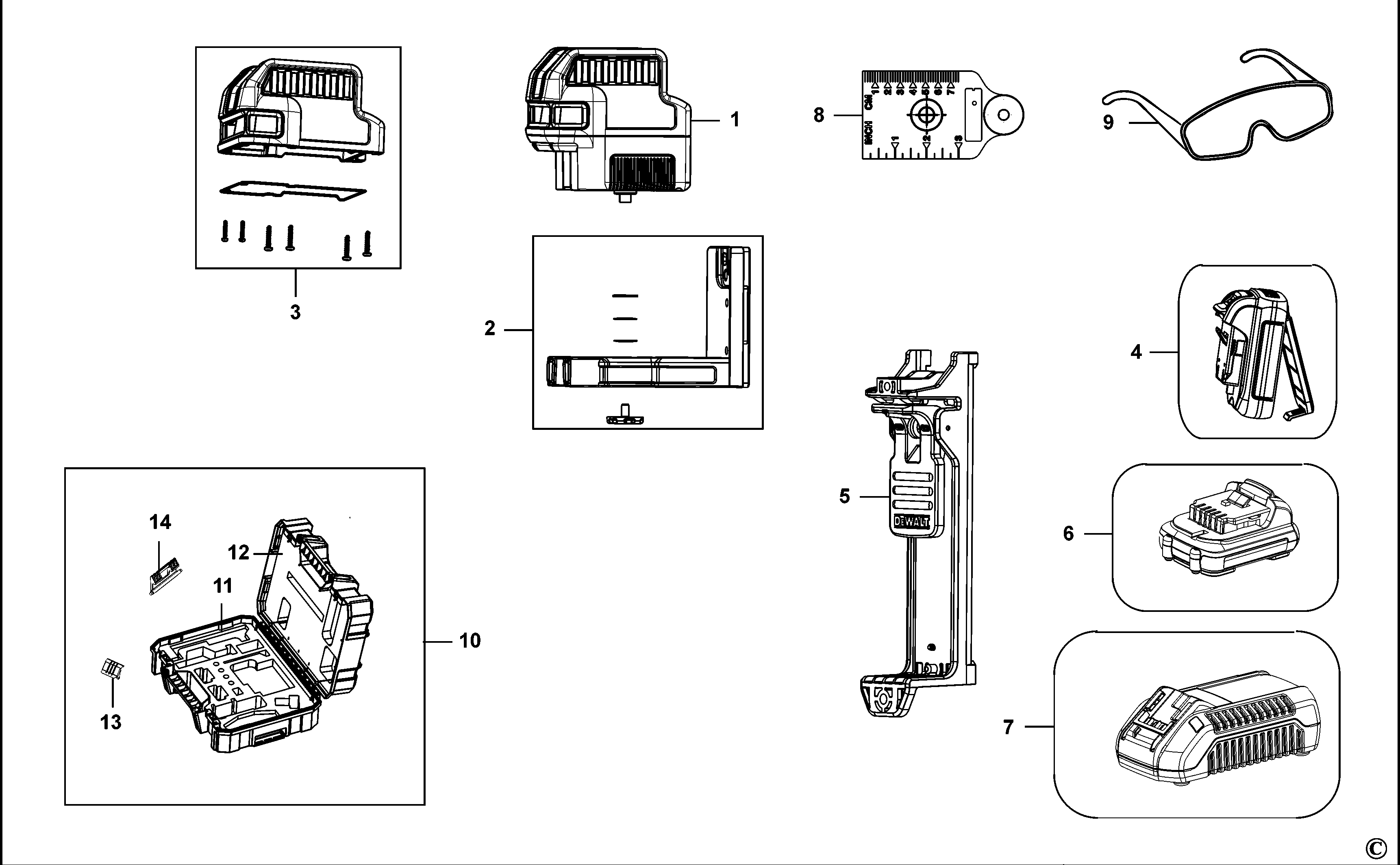

DCE0822R CROSSLINE LASER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N508864 | 1 | LASER | GB |  |
||
| 1 | N696450 | 1 | SELECTOR SA | GB | |
||
| 2 | N508868 | 1 | BRACKET SA | GB | |
||
| 2 | N510877 | 1 | SPINDLE SA | GB | |
||
| 3 | N508867 | 1 | HOUSING UPPER | GB | |
||
| 3 | 1004685-46 | 1 | SELECTOR | GB | |
||
| 4 | N453836 | 1 | DUMMY BATTERY PACK AA | DCE0822LR | GB | |
|
| 4 | 5170041-67 | 1 | CAPACITOR | GB | |||
| 5 | N453838 | 1 | BRACKET SA | GB | |
||
| 5 | 1004686-67 | 1 | SCREW | GB | |
||
| 6 | N394620 | 1 | BATTERY 10.8V - 2.0AH - 21.6WH | DCB127-XJ | DCE0822D1R | GB | |
| 7 | N450537 | 1 | CHARGER 10.8V - 18V | DCE0822D1R | GB | |
|
| 7 | 242393-00 | 1 | FOOT | GB | |
||
| 8 | N528003 | 1 | TARGET | RED | GB | |
|
| 8 | 1004686-77 | 1 | EARTHING MARKING | GB | |
||
| 9 | N437437 | 1 | SAFETY GLASSES | GB | |
||
| 9 | 330060-14 | 1 | CABLE (M/PLUG) | GB | |||
| 10 | N508869 | 1 | KITBOX | GB | |
||
| 10 | 5170013-13 | 2 | SCREW | GB | |||
| 11 | N475497 | 1 | FOAM | GB | |
||
| 11 | 1004686-46 | 1 | NUT | GB | |
||
| 12 | N475498 | 1 | LID FOAM | GB | |||
| 12 | 242854-00 | 1 | SPRING | GB |  |
||
| 13 | P910190 | 2 | LATCH | GB | |
||
| 13 | 1004685-17 | 1 | RING | GB | |
||
| 14 | H1500082520 | 2 | LATCH | GB | |||
| 14 | 1004686-47 | 1 | COVERPLATE | GB | |
||
| 15 | 1004685-40 | 1 | COUPLING | GB | |
||
| 16 | 5170013-14 | 3 | SCREW | GB | |||
| 17 | 5170012-94 | 1 | SCREW | GB | |||
| 18 | 1004579-00 | 1 | CORDSET | GB | |||
| 19 | 610272-00 | 1 | FRAME LH | GB | |||
| 20 | N181498 | 1 | CLAMSHELL SET | 14.4V | GB | |
|
| 21 | 723262 | 1 | FRAME | GB | |||
| 22 | 1004685-08 | 1 | SCREW | GB | |
||
| 24 | 90606408 | 9 | SCREW | GB | |||
| 25 | N461432 | 1 | WIRE HARNESS | GB | |
||
| 26 | 1004775-44 | 1 | WASHER | GB | |
||
| 27 | 942467-05 | 1 | LEAD SA | GB | |
||
| 28 | N403393 | 1 | SELECTOR | SPEED | GB | |
|
| 37 | 90606422 | 1 | SCREW | GB | |||
| 42 | 862618-08 | 1 | LABEL | GB | |
||
| 43 | 1004685-39 | 1 | KEY | GB | |
||
| 44 | 242408-04 | 1 | FRAME | GB | |
||
| 52 | 937761 | 2 | CABLE | GB | |
||
| 53 | 1004775-49 | 2 | O RING | GB | |
||
| 55 | 249220-00 | 1 | SCREW | GB | |
||
| 56 | 1004686-40 | 2 | SCREW | GB | |
||
| 57 | 1004686-53 | 2 | GLAND | GB | |
||
| 59 | N166238 | 1 | SWITCH LOCK-ON | GB | |
||
| 60 | 1004686-56 | 1 | SCREW | GB | |
||
| 61 | 1004578-00 | 2 | SCREW | ST4.1x10MM | GB | ||
| 62 | N392582 | 1 | SEAL | GB | |
||
| 63 | 1004686-42 | 1 | WASHER LOCK | GB | |
||
| 70 | 1004686-45 | 1 | GRUB SCREW | GB | |
||
| 71 | 1004685-28 | 1 | RING | GB | |
||
| 72 | N398048 | 1 | SUPPORT | GB | |
||
| 73 | 44778 | 1 | SWITCH 3 PH | GB | |
||
| 74 | 942846-00 | 1 | HOLDER | GB | |
||
| 75 | 393141-02 | 1 | GUARD SA | 180MM | GB | |
|
| 80 | N438601 | 1 | CLAMSHELL | GB | |
||
| 81 | N418011 | 1 | HANDLE SA | GB | |
||
| 82 | N506587 | 1 | ATTACHMENT | GB | |
||
| 83 | N377757 | 1 | CLAMSHELL PAIR | EMI, WELD | GB | |
