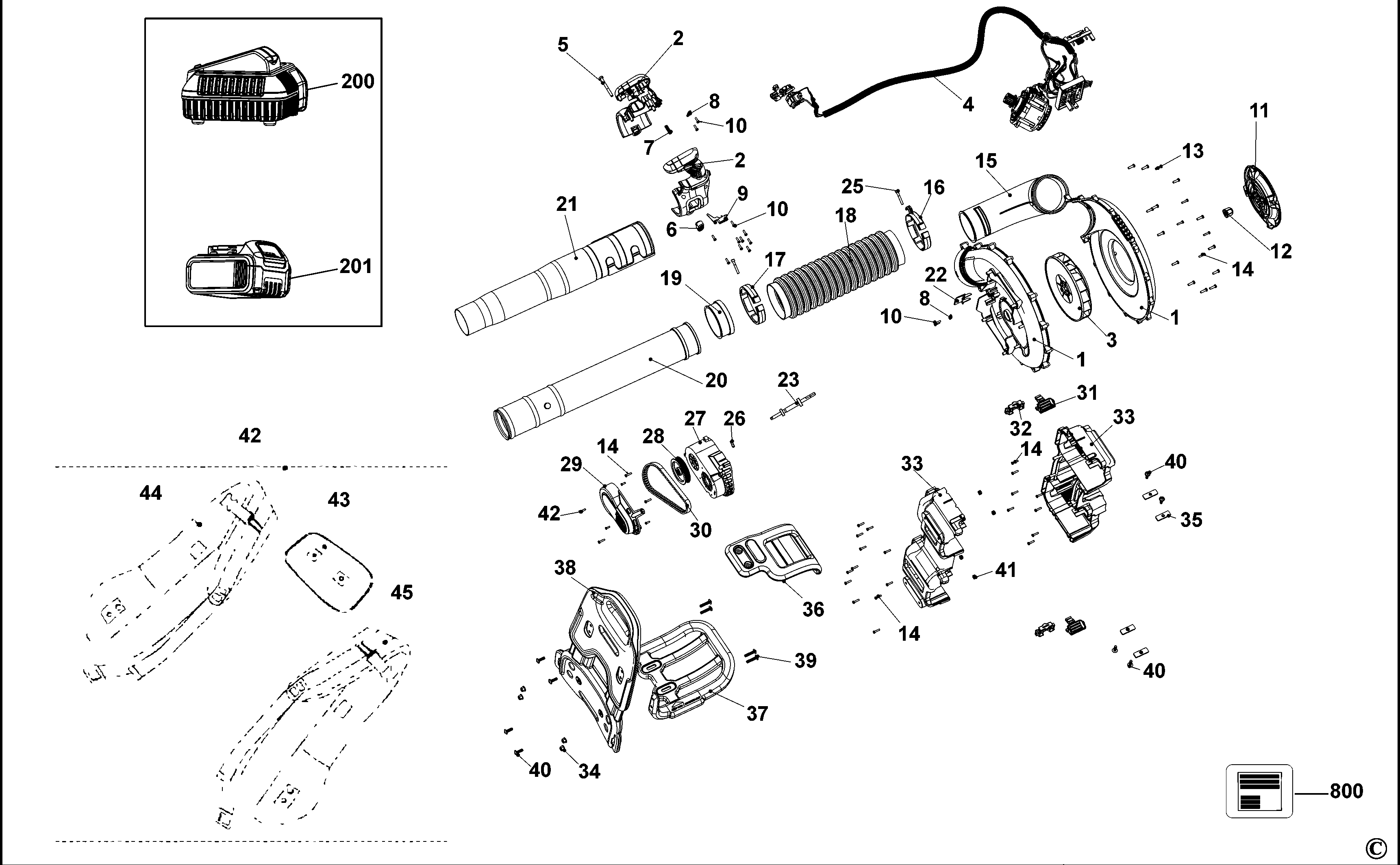

DCM587 BLOWER VAC Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90607196 | 1 | CLAMSHELL | XJ |  |
||
| 2 | 90613350 | 1 | HANDLE SA | XJ |  |
||
| 3 | 90607203 | 1 | FAN SA | XJ | |
||
| 4 | 90632548 | 1 | MOTOR SA | +MODULE | XJ | |
|
| 5 | 90624618 | 1 | BOLT | XJ | |
||
| 6 | 90623499 | 1 | KNOB | XJ | |
||
| 7 | 90623558 | 1 | SPRING | XJ | |
||
| 8 | 329301-00 | 2 | CORD CLAMP | XJ | |
||
| 9 | 90622046 | 1 | BUTTON | XJ | |||
| 10 | 330019-02 | 11 | SCREW | XJ | |
||
| 11 | 90637336 | 1 | COVER | XJ | |
||
| 12 | 90556361 | 1 | LOCK-NUT | XJ | |
||
| 13 | 330019-21 | 14 | SCREW.TEMP | XJ | |
||
| 14 | 330019-03 | 28 | SCREW | XJ | |
||
| 15 | 90617484 | 1 | TUBE | XJ | |
||
| 16 | 90622501 | 1 | CLAMP | XJ | |
||
| 17 | 90623557 | 1 | CLAMP | XJ | |
||
| 18 | 90617485 | 1 | TUBE | XJ | |
||
| 19 | 90617486 | 1 | TUBE | XJ | |
||
| 20 | 90617487 | 1 | TUBE | XJ | |
||
| 21 | 90623554 | 1 | TUBE | XJ | |
||
| 22 | 90624396 | 1 | CLAMP | XJ | |
||
| 23 | 90632549 | 1 | SHAFT SA | OUTPUT | XJ | |
|
| 24 | 330019-41 | 3 | SCREW | XJ | |
||
| 25 | 90627088 | 2 | SCREW | XJ | |
||
| 26 | 90609683 | 1 | WASHER | XJ | |
||
| 27 | 90620778 | 1 | GEARCASE | XJ | |
||
| 28 | 90624624 | 1 | PULLEY SA | XJ | |
||
| 29 | 90620779 | 1 | COVER BELT | XJ | |
||
| 30 | 90624616 | 1 | BELT | XJ | |
||
| 31 | 90606556 | 2 | BUTTON | XJ | |
||
| 32 | 90632550 | 2 | LATCH | SA | XJ | |
|
| 33 | 90607202 | 1 | BATTERY CASE SA | XJ | |
||
| 34 | 90630189 | 10 | NUT | XJ | |
||
| 35 | 90609272 | 4 | NUT | XJ | |
||
| 36 | 90620719 | 1 | GUARD | XJ | |
||
| 37 | 90620718 | 1 | FRAME | XJ | |
||
| 38 | 90620717 | 1 | BACKPLATE | XJ | |
||
| 39 | 90623503 | 4 | SCREW | XJ | |
||
| 40 | 90623502 | 14 | SCREW | XJ | |
||
| 41 | 397893-00 | 4 | NUT | XJ | |||
| 42 | 90633003 | 1 | HARNESS | XJ | |
||
| 43 | 90633349 | 1 | PAD | XJ | |
||
| 44 | 90633347 | 1 | STRAP | XJ | |
||
| 45 | 90633348 | 1 | STRAP | XJ | |
||
| 201 | N517081 | 1 | BATTERY 36V - 6.0AH - 216KW | Li-Ion - DCB496 | XJ | |
|
| 800 | 90641873 | 1 | RATING LABEL | DCN587N | XJ | |
