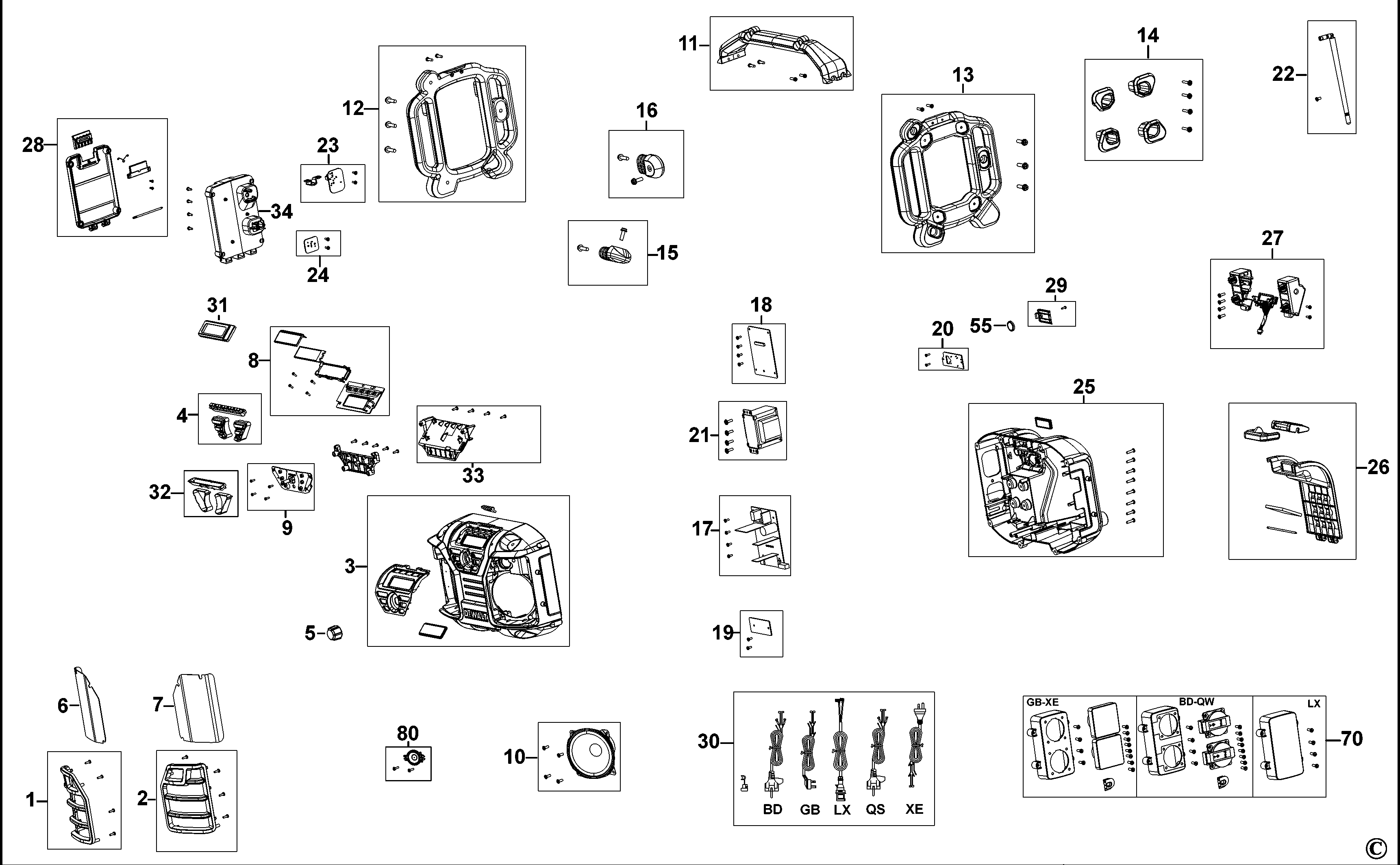

DCR017 SITE RADIO Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140127-25 | 1 | FRAME LH | LX |  |
||
| 2 | 5140127-26 | 1 | FRAME RH | LX | |
||
| 3 | 5140127-27 | 1 | HOUSING FRONT | LX | |
||
| 4 | 1004691-08 | 1 | BUTTON SA | LX | |
||
| 5 | 5140127-29 | 1 | KNOB | LX | |
||
| 6 | 5140127-30 | 1 | GRILL | LEFT | LX | |
|
| 7 | 5140127-31 | 1 | GRILL | RIGHT | LX | |
|
| 8 | 1004691-09 | 1 | PCB SA | DISPLAY | LX |  |
|
| 9 | 1004691-10 | 1 | PCB SA | KEYPAD | LX | |
|
| 10 | 5140127-34 | 2 | SPEAKER | LX | |
||
| 11 | 5140127-35 | 1 | HANDLE | LX | |
||
| 12 | 5140127-36 | 1 | CAGE | LX | |
||
| 13 | 5140127-37 | 1 | CAGE | LX | |
||
| 14 | 5140127-38 | 1 | KIT | LX | |
||
| 15 | 5140127-39 | 4 | MOUNT SA | FRONT | LX | |
|
| 16 | 5140127-40 | 2 | MOUNT SA | REAR | LX | |
|
| 17 | 5140127-41 | 1 | PCB SA | LX | |
||
| 18 | 1004691-12 | 1 | PCB SA | MAIN | LX | |
|
| 19 | 1004691-13 | 1 | PCB SA | CONNECT | LX | |
|
| 20 | 1004691-14 | 1 | PCB SA | BACK UP | LX | |
|
| 21 | 5140127-45 | 1 | TRANSFORMER | LX | |
||
| 22 | 1004691-17 | 1 | ANTENNA | DAB+ | LX | |
|
| 23 | 1004691-18 | 1 | PCB SA | AUX | LX | |
|
| 24 | 1004691-19 | 1 | PCB SA | USB | LX | |
|
| 25 | 1004691-02 | 1 | HOUSING REAR | LX | LX | |
|
| 26 | 5140127-50 | 1 | DOOR | LX | |
||
| 27 | 5140127-51 | 1 | BATTERY CONNECTOR | LX | |
||
| 28 | 5140127-52 | 1 | COVER SA | ACCESSORY BOX | LX | |
|
| 29 | 5140127-53 | 1 | DOOR | BATTERY BACKUP | LX | |
|
| 30 | 1004691-26 | 1 | CORDSET | LX | LX | |
|
| 31 | 1004692-26 | 1 | COVER | DISPLAY | LX | |
|
| 32 | 5140127-95 | 1 | KEY HOLDER | KEY | LX | |
|
| 33 | 5140127-96 | 1 | BRACKET | DISPLAY | LX | |
|
| 34 | 5140127-97 | 1 | HOUSING | ACCESSORY BOX | LX | |
|
| 55 | 5140112-26 | 1 | BATTERY | LX | |
||
| 70 | 1004692-31 | 1 | OUTLET | LX | LX | |
|
| 80 | 5140127-99 | 2 | SPEAKER | TWEETER | LX | |
