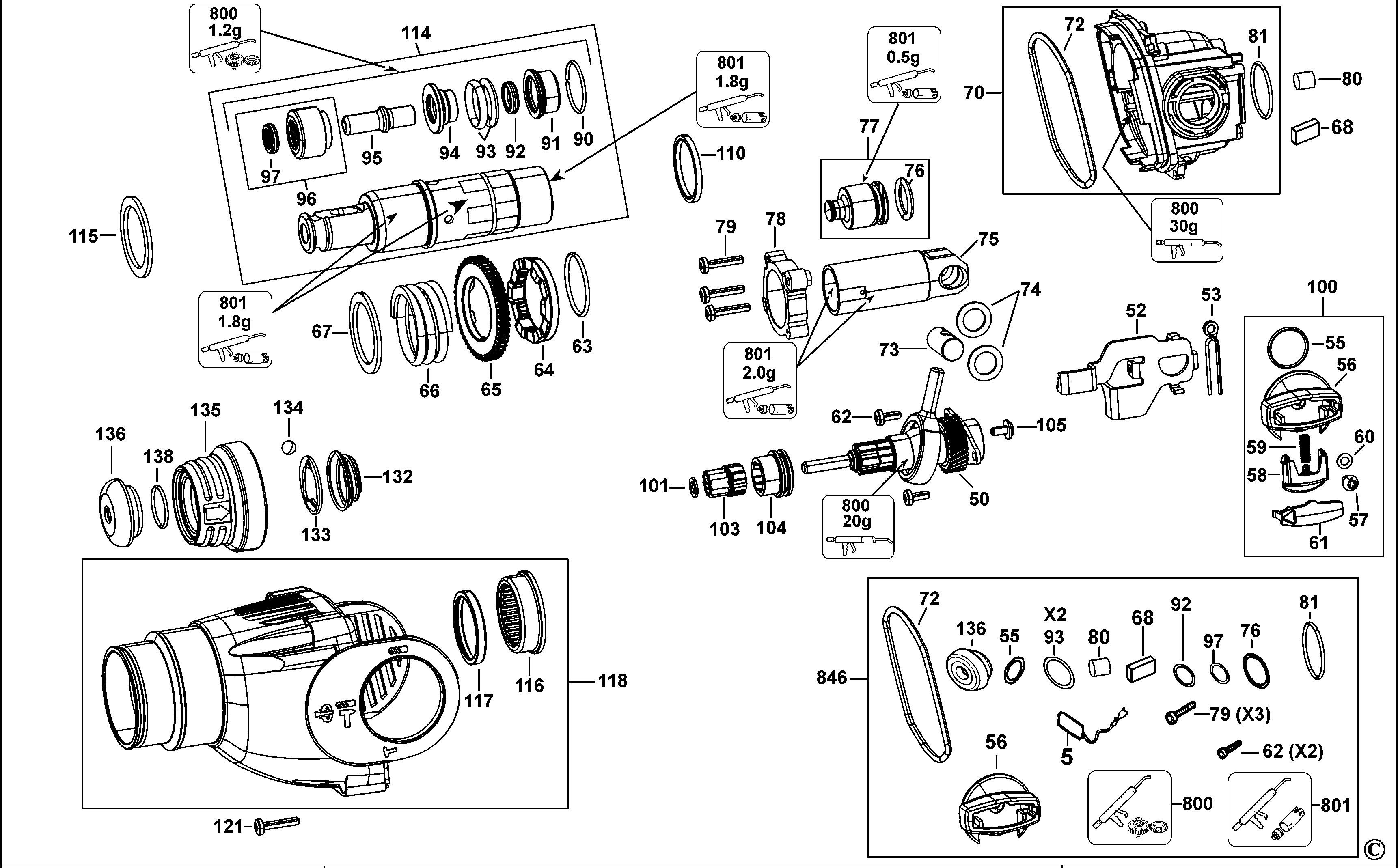

D25213K ROTARY HAMMER Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 7 | NA073534 | 1 | CORD PROTECTOR | XJ |  |
||
| 9 | 330065-26 | 1 | SCREW | XJ | |
||
| 18 | 930026-01 | 1 | BUMPER | XJ | |
||
| 19 | 479818-00 | 1 | LEVER | XJ | |
||
| 20 | 578220-00 | 1 | LEVER | XJ | |
||
| 21 | 870052 | 1 | SLEEVE | XJ | |
||
| 22 | 324006-14 | 2 | SCREW | XJ |  |
||
| 23 | 326519-03 | 4 | SCREW | XJ | |
||
| 24 | 582144-00 | 1 | BAFFLE | XJ | |
||
| 25 | 1005895-00 | 1 | BEARING | XJ | |
||
| 32 | N082146 | 1 | HANDLE SA | XJ | |||
| 34 | 578278-10 | 1 | HANDLE COVER | XJ | |
||
| 36 | 821070 | 1 | CORD CLAMP | XJ | |
||
| 37 | 330065-08 | 4 | SCREW | M4x18 T20 | XJ | |
|
| 40 | 330065-25 | 4 | SCREW | XJ | |
||
| 50 | N402885 | 1 | INTERSHAFT SA | XJ | |
||
| 52 | N029727 | 1 | PLATE | XJ | |
||
| 53 | N042799 | 1 | SPRING | XJ | |
||
| 57 | 330065-05 | 1 | SCREW | XJ | |
||
| 58 | N034136 | 1 | LOCK BUTTON | XJ | |
||
| 59 | N074923 | 1 | SPRING | XJ | |
||
| 60 | 1005811-00 | 1 | SEAL | XJ | |
||
| 61 | N034134 | 1 | COVER | XJ | |
||
| 62 | 324006-14 | 2 | SCREW | XJ | |
||
| 63 | 581836-00 | 1 | LOCKING RING | XJ | |
||
| 64 | N081742 | 1 | RING | XJ | |||
| 65 | N081984 | 1 | GEAR | XJ | |||
| 66 | N029717 | 1 | SPRING | XJ | |
||
| 67 | 577814-00 | 1 | WASHER | XJ | |
||
| 68 | N081515 | 1 | FELT | XJ | |
||
| 70 | N081983 | 1 | HOUSING SA | XJ | |
||
| 72 | 578229-00 | 1 | SEAL | XJ | |
||
| 73 | 577801-00 | 1 | BEARING BLOCK | XJ | |
||
| 74 | N074454 | 2 | WASHER | XJ | |
||
| 75 | N081750 | 1 | PISTON | XJ | |
||
| 76 | 579699-00 | 1 | O RING | XJ | |
||
| 77 | N081751 | 1 | RAM SA | XJ | |
||
| 78 | N029731 | 1 | BEARING BUSH | XJ | |
||
| 79 | 324006-15 | 3 | SCREW | XJ | |
||
| 80 | N038257 | 1 | FELT | XJ | |
||
| 81 | N042496 | 1 | O RING | XJ | |
||
| 90 | 577793-00 | 1 | CLIP | XJ | |
||
| 91 | N082141 | 1 | BUSH | XJ | |||
| 92 | 580990-00 | 1 | O RING | XJ | |
||
| 93 | 577135-00 | 2 | O RING | XJ | |
||
| 94 | N082144 | 1 | DAMPER | XJ | |||
| 95 | N082142 | 1 | BEAT PIECE | XJ | |
||
| 96 | N082145 | 1 | BEARING & SEAL | XJ | |||
| 97 | 577139-00 | 1 | SEAL | XJ | |
||
| 101 | 1005844-00 | 1 | WASHER | XJ | |
||
| 103 | N029726 | 1 | PINION GEAR | XJ | |
||
| 104 | N029725 | 1 | COLLAR | XJ | |
||
| 105 | 329794-00 | 1 | SCREW | XJ | |
||
| 110 | N059509 | 1 | WASHER | XJ | |
||
| 114 | N386323 | 1 | SPINDLE SA | XJ | |
||
| 115 | 577814-00 | 1 | WASHER | XJ | |
||
| 116 | N082143 | 1 | BEARING NEEDLE | XJ | |||
| 117 | 577812-00 | 1 | SEAL | XJ | |
||
| 118 | N081754 | 1 | HOUSING SA | XJ | |
||
| 121 | 330019-81 | 4 | SCREW | XJ | |
||
| 132 | 871690 | 1 | SPRING | XJ | |
||
| 133 | 578387-00 | 1 | WASHER | XJ | |
||
| 134 | 583890-00 | 1 | BALL | XJ | |
||
| 135 | N774198 | 1 | TUBE SA | XJ | |
||
| 135 | N774198 | 1 | TUBE SA | XJ | |
||
| 136 | 323489-00 | 1 | CAP | XJ | |
||
| 138 | 579212-00 | 1 | RING | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | XJ | |
|
| 817 | 496620-00 | 1 | LABEL | XJ | |
||
| 830 | N074584 | 1 | BRAND LABEL | XJ | |
||
| 836 | 1003925-99 | 1 | S.T.CIRCLIP INSERTER | XJ | |
||
| 836 | 1003926-99 | 1 | S.T.INSERT | XJ | |
||
| 836 | 1003924-99 | 1 | S.T.CIRCLIP REMOVER | XJ | |
||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | XJ | |
||
| 861 | N328939 | 1 | KITBOX | XJ | |
