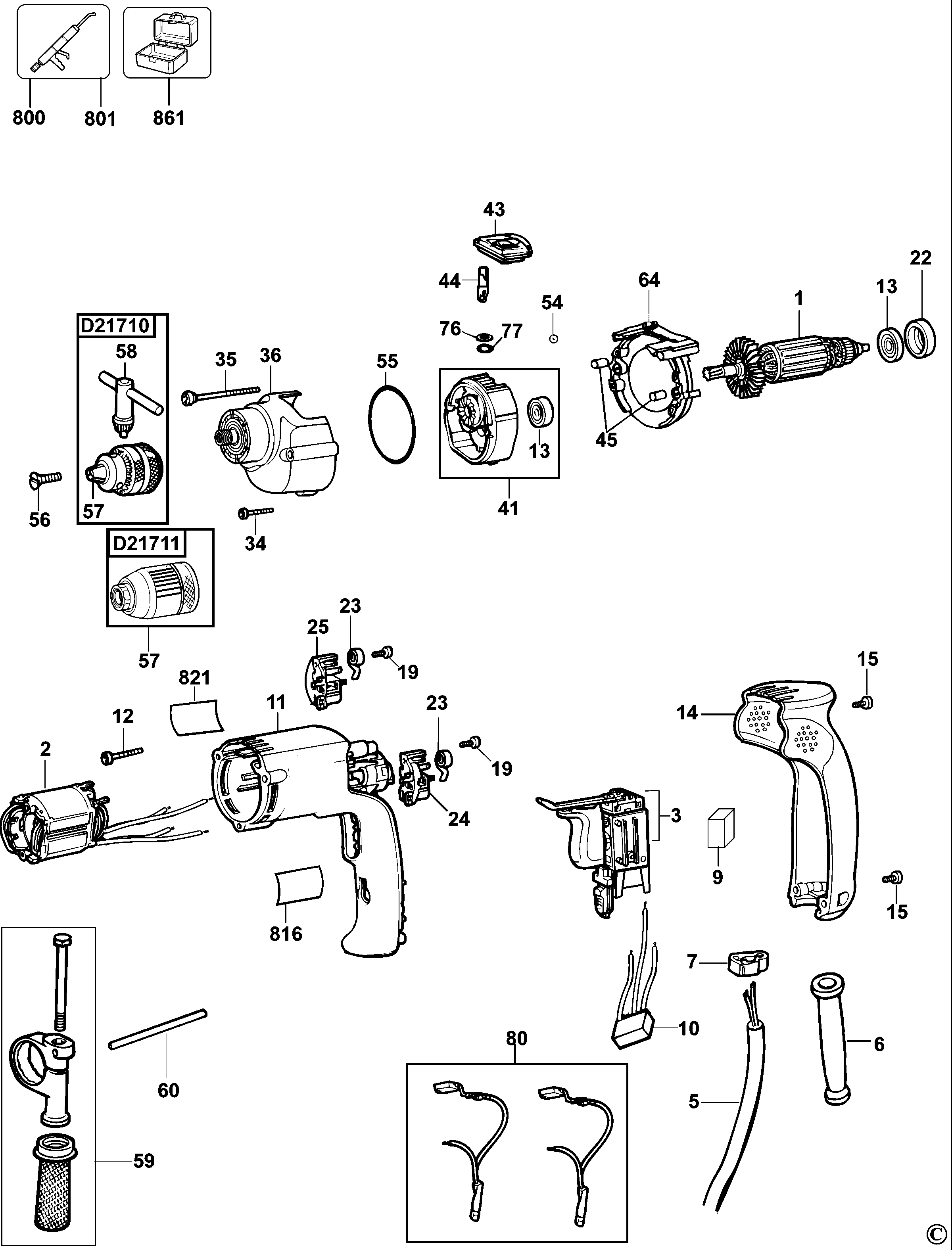

D21710 HAMMER DRILL Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 495832-01 | 1 | ARMATURE SA | 115 V | LX |  |
|
| 2 | 1007674-01 | 1 | FIELD SA | 115V | LX | |
|
| 3 | 586469-01 | 1 | SWITCH 115V | LX | |
||
| 5 | 330061-07 | 1 | CABLE SA | LX | |
||
| 7 | 603255-00 | 1 | CORD CLAMP | LX |  |
||
| 9 | 930026-01 | 1 | BUMPER | LX | |
||
| 10 | 496516-00 | 1 | CAPACITOR | LX | |
||
| 11 | 1007793-00 | 1 | FIELDCASE | LX | |
||
| 12 | 496932-00 | 2 | SCREW | LX | |||
| 13 | 605040-55 | 2 | BEARING 608 | LX | |
||
| 14 | 610140-00 | 1 | HANDLE COVER | LX | |
||
| 15 | 330019-13 | 3 | SCREW | M4X19 T20 | LX | |
|
| 19 | 330065-06 | 2 | SCREW | LX | |
||
| 22 | 389824-00 | 1 | BOOT | LX | |
||
| 23 | 402759-00 | 2 | BRUSH SPRING | LX | |
||
| 24 | 401877-01 | 1 | BRUSH HOLDER SA | LX | |
||
| 25 | 401878-01 | 1 | BRUSH HOLDER SA | LX | |||
| 34 | 330019-45 | 1 | SCREW | LX | |
||
| 35 | 330019-17 | 2 | SCREW | LX | |
||
| 36 | N063406 | 1 | HOUSING SA | LX | |||
| 41 | 584525-02 | 1 | GEARCASE SA | LX | |
||
| 43 | 590107-00 | 1 | SELECTOR SA | LX | |
||
| 44 | 946106-00 | 1 | PIN | LX | |
||
| 45 | 949638-02 | 2 | DAMPER | LX | |
||
| 54 | 000903-00 | 1 | BALL | LX | |
||
| 55 | 401847-00 | 1 | SEAL | LX | |
||
| 56 | 490910-00 | 1 | SCREW | LX | |
||
| 57 | 584925-02 | 1 | CHUCK 13MM | LX | |
||
| 58 | N022653 | 1 | CHUCK KEY | LX | |
||
| 59 | 939794-02 | 1 | HANDLE SIDE SA | LX | |
||
| 60 | 940357-00 | 1 | DEPTH STOP | LX | |
||
| 64 | 585994-00 | 1 | BAFFLE FAN | LX | |
||
| 76 | 050050-00 | 1 | RING | LX | |
||
| 77 | 176659-00 | 1 | WASHER | LX | |
||
| 80 | N081423 | 1 | BRUSH PAIR 115V | LX | |
||
| 800 | 429911-00 | 1 | GREASE 40 GMS | LX | |
||
| 801 | 870889-02 | 1 | GREASE | LX | |
||
| 816 | 395047-00 | 1 | BRAND LABEL | LX | |
||
| 821 | 1008749-00 | 1 | RATING PLATE | LX | |
