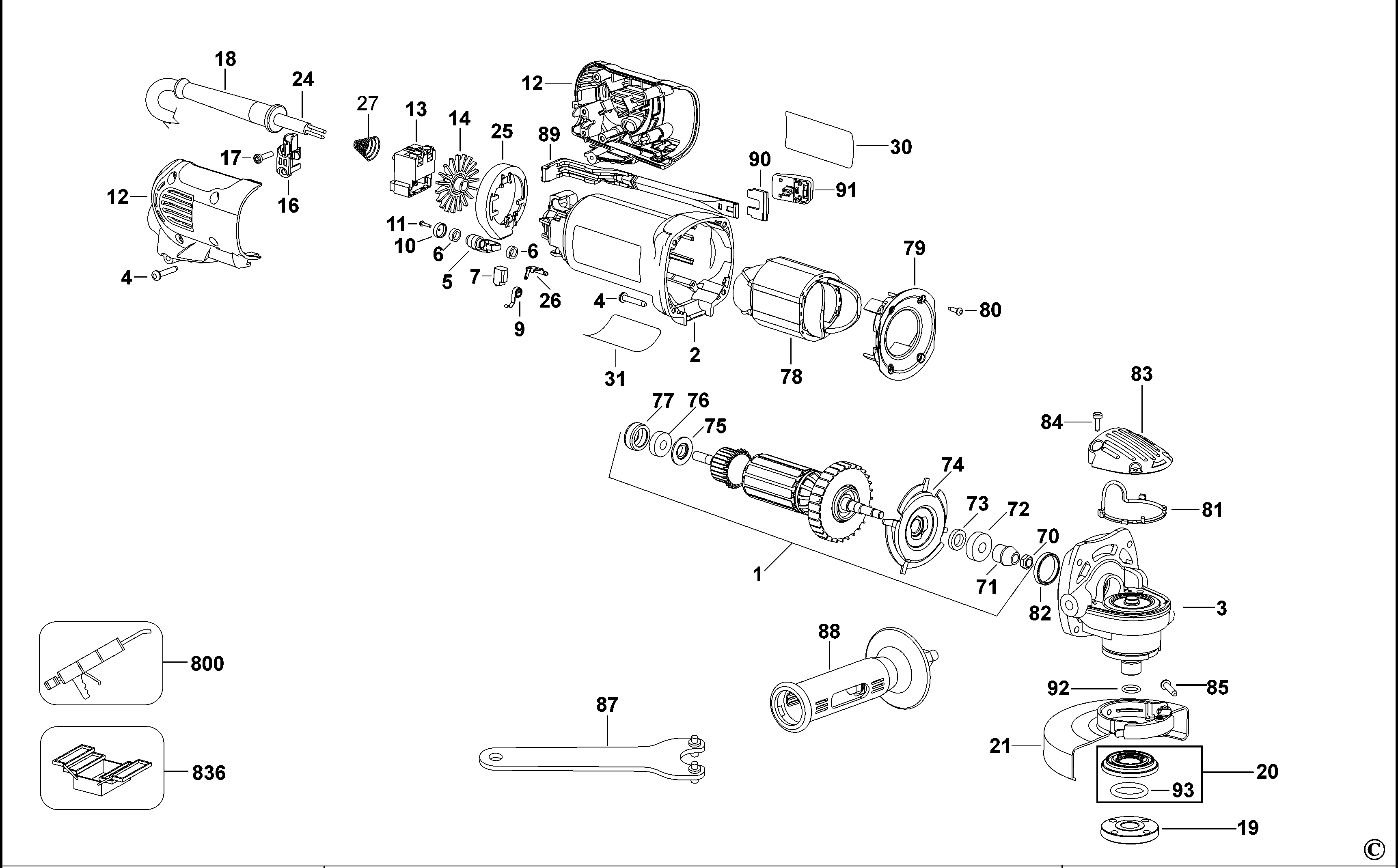

D28106 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 4 | 330065-31 | 9 | PLASTIC SCREW | XJ |  |
||
| 5 | 648743-00 | 2 | ARM | BRUSH | XJ | |
|
| 6 | 623592-00 | 4 | FELT SEAL | XJ | |
||
| 9 | 623589-00 | 2 | BRUSH SPRING | XJ | |
||
| 10 | 623591-00 | 2 | BRUSH CAP | XJ | |
||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | XJ | |
|
| 13 | 641889-01 | 1 | SWITCH SA | XJ | |
||
| 14 | N055787 | 1 | SEPARATOR | Particle | XJ | |
|
| 16 | 636963-00 | 1 | CORD CLAMP | XJ | |
||
| 17 | 330019-03 | 2 | SCREW | XJ | |
||
| 18 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 18 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 19 | 656927-00 | 1 | NUT | XJ | |||
| 20 | 633257-01 | 1 | INNER FLANGE | XJ | |||
| 21 | 636116-03 | 1 | GUARD | XJ | |||
| 25 | 637616-00 | 1 | BAFFLE | XJ | |
||
| 26 | 623593-00 | 2 | TERMINAL | XJ | |
||
| 27 | 628396-00 | 1 | SPRING | XJ |  |
||
| 30 | 635892-00 | 1 | BRAND LABEL | XJ | |
||
| 70 | 604484-00 | 1 | NUT | XJ | |
||
| 72 | 605040-11 | 1 | BEARING,BALL | 608 (8 x 22 x 7) | XJ | |
|
| 73 | 623617-00 | 1 | FELT SEAL | XJ | |
||
| 74 | N422242 | 1 | RETAINER | XJ | |
||
| 75 | 623613-00 | 1 | WASHER | XJ | |
||
| 76 | 605040-02 | 1 | BEARING | XJ | |
||
| 77 | 641823-00 | 1 | SLEEVE | XJ | |
||
| 79 | 623572-00 | 1 | BAFFLE FAN | XJ | |
||
| 80 | 330065-25 | 4 | SCREW | XJ | |
||
| 81 | 623618-00 | 1 | GASKET | XJ | |
||
| 82 | 611492-00 | 1 | SLEEVE | XJ | |
||
| 83 | 623562-00 | 1 | GEARCASE COVER | XJ | |
||
| 84 | 385676-01 | 4 | SCREW | XJ | |
||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | XJ | |
|
| 87 | 401253-00 | 1 | WRENCH ROUND-PINS | XJ | |
||
| 88 | 651858-00 | 1 | SIDE HANDLE | XJ | |
||
| 89 | 623610-00 | 1 | ARM LINK | XJ | |
||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | XJ | |
|
| 91 | 623608-00 | 1 | BUTTON START | XJ | |
||
| 92 | 637162-01 | 1 | O RING | XJ | |||
| 93 | 637162-00 | 1 | O RING | XJ | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XJ | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XJ | |
|
| 836 | 233804-36 | 1 | DRIVER | T6 | XJ |
