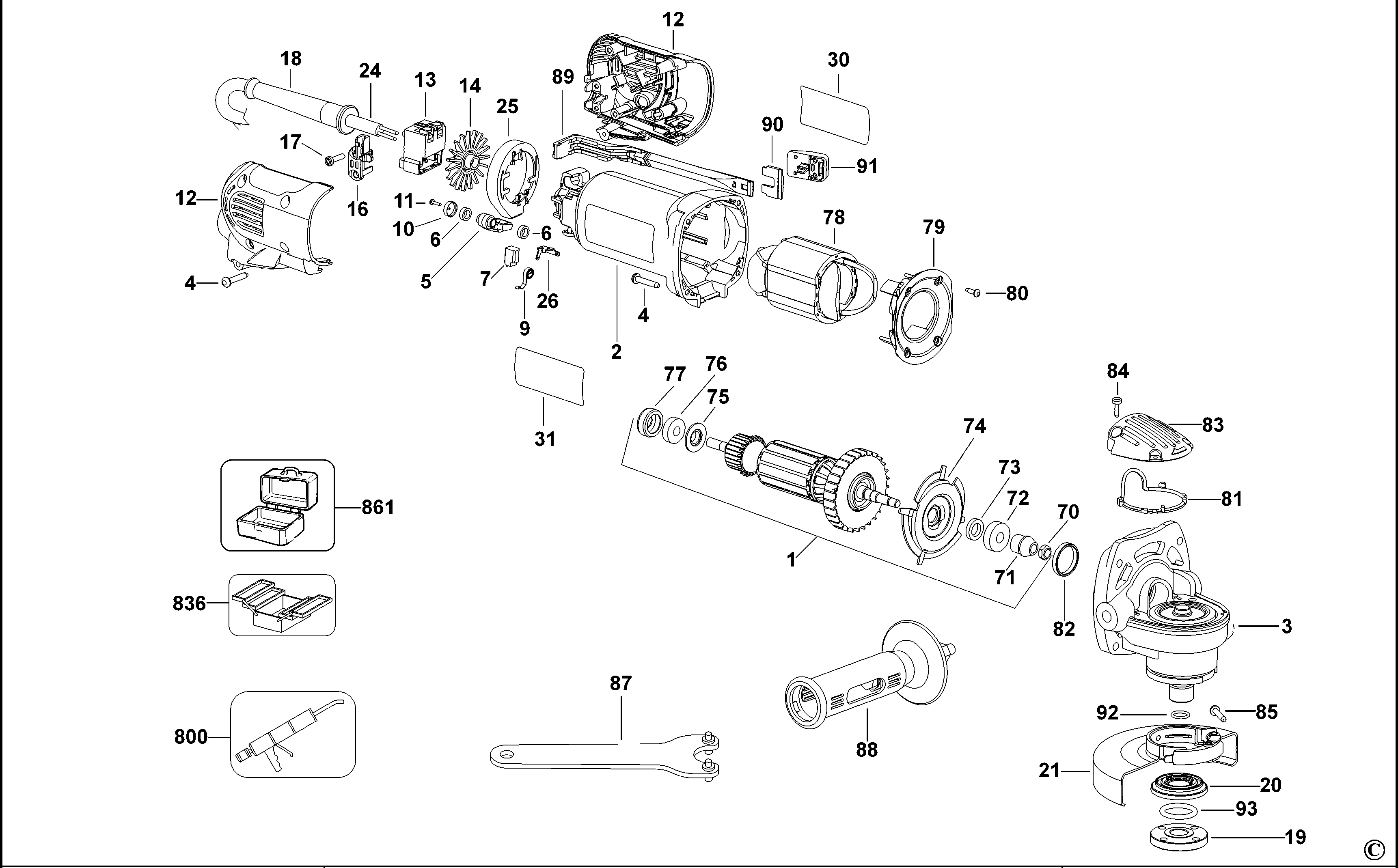

D28135 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N398000 | 1 | ARMATURE SA | 230V | GB |  |
|
| 2 | 626992-02 | 1 | FIELDCASE | HP, SLIDER | GB | |
|
| 2 | 562086-15 | 1 | WHEEL,SX1/4 GP | GB | |||
| 3 | 629447-04 | 1 | GEARCASE SA | M14 SPINDLE | GB | |
|
| 3 | 330003-15 | 1 | BEARING | GB | |
||
| 4 | 330065-31 | 9 | PLASTIC SCREW | GB | |
||
| 4 | AWQP120M-31 | 1 | GASKET | GB |  |
||
| 5 | 648743-00 | 2 | ARM | BRUSH | GB | |
|
| 5 | N382458 | 1 | NUT | GB | |
||
| 6 | 623592-00 | 4 | FELT SEAL | GB | |
||
| 6 | N545780 | 1 | FIELD CASE ASSY | W/STATOR, HALL BOARD | GB | ||
| 7 | 640491-03 | 2 | BRUSH 230V | 230V POP OFF | GB | |
|
| 8 | N401958 | 1 | DEFLECTOR | GB | |
||
| 9 | 636760-00 | 2 | BRUSH SPRING | GB | |
||
| 10 | 623591-00 | 2 | BRUSH CAP | GB | |
||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | GB | |
|
| 11 | N432556 | 1 | O RING | 54x4 | GB | |
|
| 12 | 633013-01 | 1 | HANDLE SA | GB | |
||
| 12 | 605040-64 | 1 | BEARING | GB | |||
| 13 | 945614-00 | 1 | SWITCH | GB | |
||
| 13 | N449235 | 1 | CORDSET | 16-2SJ 6FT | GB | ||
| 14 | N055787 | 1 | SEPARATOR | Particle | GB | |
|
| 16 | 628398-00 | 1 | CORD CLAMP | GB | |
||
| 16 | 654458-00 | 1 | NAME PLATE | D21002 TY.3 | GB | ||
| 17 | 330019-03 | 2 | SCREW | GB | |
||
| 18 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | GB | |
|
| 20 | 633257-00SV | 1 | INNER FLANGE SA | GB | |
||
| 21 | 661329-00 | 1 | GUARD SA | GB | |
||
| 21 | N436884 | 1 | SHOE SA | GB | |
||
| 22 | 562304-02S | 1 | GEAR CASE ASSY. | GB | |||
| 23 | 605040-65 | 1 | BEARING | GB | |
||
| 24 | 562226-09 | 1 | CABLE | GB | |
||
| 25 | 627283-00 | 1 | BAFFLE | GB | |
||
| 26 | 623593-00 | 2 | TERMINAL | GB | |
||
| 26 | 1004685-37 | 1 | GEAR | GB | |
||
| 27 | 5170028-81 | 1 | RING | GB | |||
| 28 | N620976 | 1 | SLEEVE | D14 | GB | |
|
| 30 | 628885-00 | 1 | BRAND LABEL | GB | |
||
| 31 | 634670-00 | 1 | ID LABEL | GB | |||
| 32 | 641483-00 | 2 | LABEL | SLIDE LOCK | GB | |
|
| 33 | N381853 | 1 | FIELD 220/240V | GB | |||
| 34 | N548202 | 1 | WARNING LABEL | GB | |||
| 38 | N566148 | 1 | TRIGGER | GB | |
||
| 39 | N506101 | 1 | MOTOR PLATE | GB | |||
| 40 | N459994 | 1 | SCREW | 3.9 X 28 | GB | |
|
| 41 | ATR35-34 | 1 | LEVER | GB | |
||
| 42 | N550501 | 1 | CORDSET (EURO) | GB | |||
| 43 | 491754-00 | 1 | CABLE | GB | |
||
| 44 | 145312-00 | 1 | PLUG | GB | |
||
| 46 | 5170025-82 | 1 | COVER | GB | |
||
| 47 | N403431 | 1 | NUT | GB | |
||
| 49 | 388828-00SV | 5 | SPINDLE LOCK | GB | |||
| 50 | N717040 | 1 | RATING LABEL | GB | |||
| 52 | N452792 | 3 | HEX WRENCH | GB | |||
| 53 | 6125-00 | 1 | SCREW | GB | |||
| 54 | 941902-00 | 4 | GRUB SCREW | M6 X 16 | GB | |
|
| 55 | 1004683-40 | 1 | CORDSET | GB | |
||
| 56 | 1004700-35 | 1 | BRUSH | GB | |
||
| 57 | 617001-00 | 1 | BRUSH HOLDER SA | GB | |
||
| 60 | 186225-00 | 1 | POWER CORD | GB | |||
| 61 | 1004686-72 | 1 | BOSS | GB | |
||
| 62 | 628218-00 | 1 | LOWER GUARD ASSY | GB | |||
| 65 | N435741 | 1 | HOUSING UPPER | UPPER | GB | |
|
| 66 | N263145 | 1 | RATING PLATE | GB | |||
| 68 | N392580 | 1 | RATING LABEL | DWE4224 TYPE 1 | GB | ||
| 70 | 604484-00 | 1 | NUT | GB | |
||
| 70 | N032940 | 1 | NAMEPLATE | DCF813 Type 1 | GB | ||
| 71 | 627465-00 | 1 | PINION | 9 TOOTH | GB | |
|
| 71 | N502896 | 1 | ID LABEL | 20V MAX | GB | ||
| 72 | 605040-11 | 1 | BEARING,BALL | 608 (8 x 22 x 7) | GB | |
|
| 73 | 623617-00 | 1 | FELT SEAL | GB | |
||
| 74 | N422242 | 1 | RETAINER | GB | |
||
| 75 | 623613-00 | 1 | WASHER | GB | |
||
| 76 | 605040-02 | 1 | BEARING | GB | |
||
| 77 | 641823-00 | 1 | SLEEVE | GB | |
||
| 78 | 627125-04 | 1 | FIELD 230V | 230V | GB | |
|
| 79 | 623572-00 | 1 | BAFFLE FAN | GB | |
||
| 80 | 626360-00 | 4 | SCREW | M3 x 10 | GB | |
|
| 80 | N495708 | 1 | GUARD | GB | |
||
| 81 | 632513-00 | 1 | GASKET | GB | |
||
| 81 | 5140025-08 | 1 | VICE BRACKET,LH | GB | |||
| 82 | 611492-00 | 1 | SLEEVE | GB | |
||
| 82 | 5140025-15 | 1 | FRAME SA | LEFT FRAME | GB | |
|
| 83 | 627313-00 | 1 | GEARCASE COVER | GB | |
||
| 83 | 5140025-57 | 1 | BRACKET,RH TILT | TILTING BRACKET RH | GB | ||
| 84 | 385676-01 | 4 | SCREW | GB | |
||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | GB | |
|
| 86 | 142940-00 | 1 | SCREW | GB | |
||
| 87 | 401680-00 | 1 | WRENCH | GB | |
||
| 87 | 6010396-88 | 1 | BIT | GB | |||
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | GB | |
|
| 89 | 627006-00 | 1 | LINK | GB | |
||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | GB | |
|
| 91 | 623608-00 | 1 | BUTTON START | GB | |
||
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | GB | |
|
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | GB | |
|
| 101 | 604519-00 | 1 | KNOB | GB | |||
| 102 | N404428 | 1 | ARMATURE 115V | 115V | GB | |
|
| 105 | N495867 | 1 | HOUSING BEARING | GB | |
||
| 108 | 5170005-21 | 1 | BRUSH PAIR | GB | |||
| 109 | 5170012-19 | 1 | NOZZLE | GB | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 836 | 233804-36 | 1 | DRIVER | T6 | GB | ||
| 861 | 638758-00 | 1 | KITBOX | GB | |
