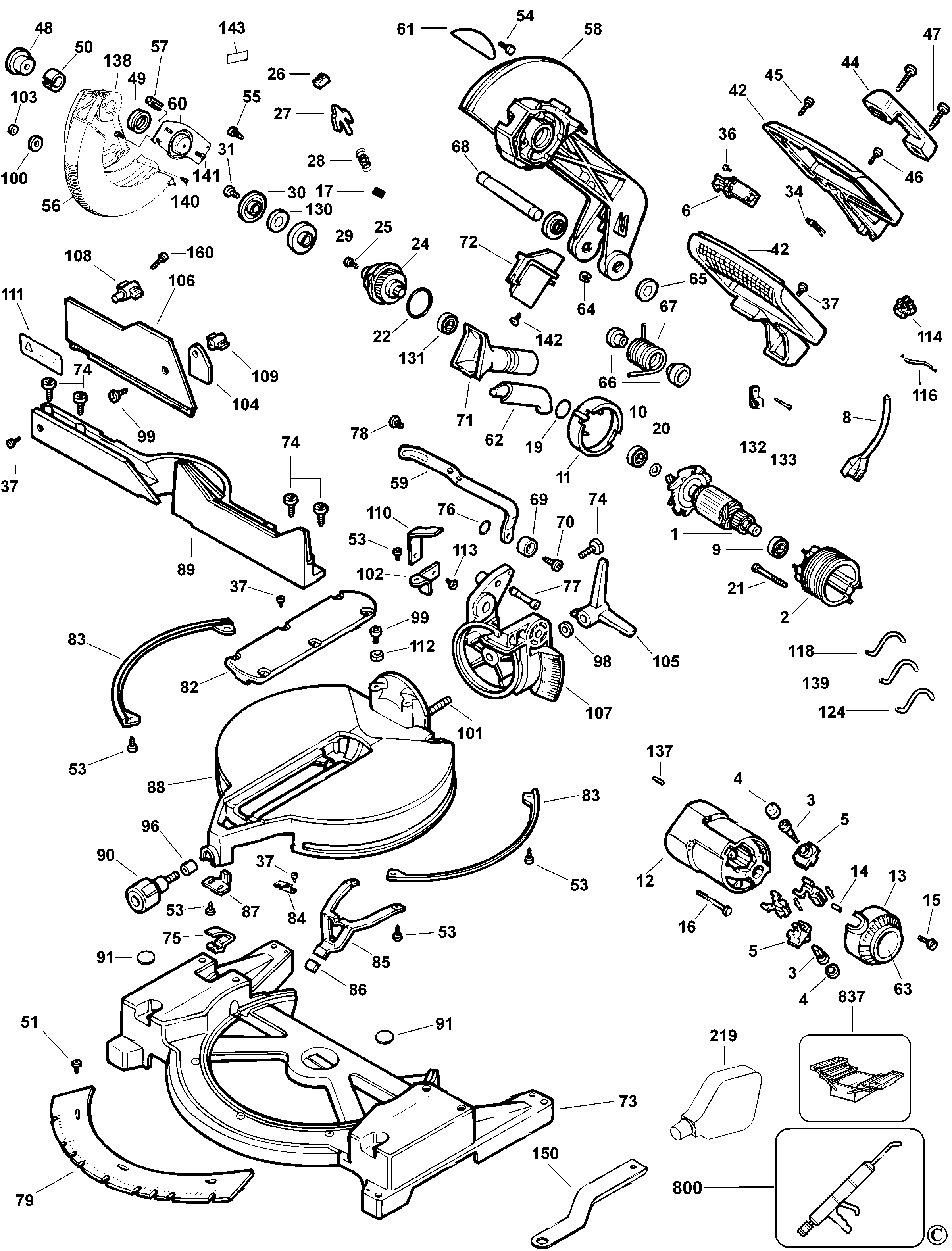

DW705 MITRE SAW Type 6 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N113577 | 1 | FIELD 230V | XJ |  |
||
| 4 | 448084-01 | 2 | BRUSH CAP | XJ | |
||
| 6 | 383965-03 | 1 | SWITCH | Tyco | XJ | |
|
| 9 | 330003-60 | 1 | BEARING | XJ |  |
||
| 10 | 330003-13 | 1 | BEARING | XJ | |
||
| 11 | 146723-01 | 1 | BAFFLE | XJ | |
||
| 12 | 389786-07 | 1 | FIELDCASE | XJ | |
||
| 13 | 387678-00 | 1 | END CAP | XJ | |
||
| 14 | 87205-00 | 2 | PLUG | XJ | |
||
| 15 | 330019-20 | 2 | SCREW | XJ | |
||
| 16 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | XJ | |
|
| 17 | 387732-00 | 1 | FELT | XJ | |
||
| 19 | 701297-00 | 1 | SEAL | XJ | |
||
| 20 | 144803-00 | 1 | CIRCLIP | XJ | |
||
| 21 | 330019-19 | 2 | SCREW | XJ | |
||
| 22 | 616961-00 | 1 | O RING | XJ | |
||
| 24 | 386824-03SV | 1 | GEAR & SPINDLE SA | 51T | XJ | |
|
| 25 | 330045-14 | 2 | SCREW | XJ | |
||
| 26 | 145350-00 | 1 | BUTTON | XJ | |
||
| 27 | 146714-00 | 1 | LOCK | XJ | |
||
| 28 | 58698-00 | 1 | SPRING | XJ | |
||
| 29 | 141987-04 | 1 | WASHER INNER CLAMP | XJ | |
||
| 30 | 151962-01 | 1 | CLAMP OUTER | XJ | |
||
| 31 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | XJ | |
|
| 34 | 32114-01 | 1 | CONNECTOR | XJ | |
||
| 36 | 330019-12 | 1 | SCREW | XJ | |
||
| 37 | 330045-05 | 8 | SCREW | XJ | |
||
| 44 | 396375-00 | 1 | HANDLE | XJ | |
||
| 45 | 330019-32 | 4 | SCREW | XJ | |
||
| 46 | 330045-08 | 4 | SCREW | XJ | |
||
| 47 | 330019-22 | 2 | SCREW | M5.74x32 | XJ | |
|
| 48 | 146750-03 | 1 | RETAINING PLATE | XJ | |
||
| 49 | 661454-00 | 1 | SPRING | XJ | |
||
| 50 | 148295-00 | 1 | SLEEVE | XJ | |
||
| 51 | 153778-02 | 3 | SCREW | XJ | |
||
| 53 | 151891-00 | 16 | SCREW | XJ | |
||
| 54 | 148608-00 | 2 | INSERT | XJ | |
||
| 55 | 394589-01 | 1 | SCREW | XJ | |
||
| 56 | 391285-00 | 1 | GUARD LOWER | XJ | |
||
| 57 | 146768-00 | 1 | BUMPER | XJ | |
||
| 58 | 387695-02 | 1 | ARM | XJ | |
||
| 59 | 146752-02 | 1 | LINK | XJ | |
||
| 60 | 429986-00 | 1 | PLATE | XJ | |
||
| 61 | 149365-01 | 1 | IDENTITY LABEL | XJ | |
||
| 62 | 148520-00 | 1 | DEFLECTOR | XJ | |
||
| 63 | 149521-01 | 1 | NAMEPLATE | XJ | |
||
| 64 | 150075-00 | 2 | SCREW | XJ | |
||
| 65 | 148296-00 | 2 | WASHER | XJ | |
||
| 66 | 146732-00 | 2 | SPACER | XJ | |
||
| 67 | N039404 | 1 | SPRING | XJ | |
||
| 68 | 146751-00 | 1 | SHAFT | XJ | |
||
| 69 | 146753-00 | 1 | BUSHING | XJ | |
||
| 70 | 330045-32 | 1 | SCREW | M8x1.25x20 MTLTHDFMG | XJ | |
|
| 71 | 146717-00 | 1 | DUCT | XJ | |
||
| 72 | 146772-03 | 1 | GUARD REAR | XJ | |
||
| 73 | 152036-00 | 1 | BASE | XJ | |
||
| 74 | 330045-33 | 4 | SCREW | XJ | |
||
| 75 | 146758-00 | 1 | SPRING | XJ | |
||
| 76 | 34158-00 | 1 | SEAL | XJ | |
||
| 77 | 387130-00 | 1 | LOCKING PIN | XJ | |
||
| 78 | 610598-00 | 1 | SCREW | XJ | |
||
| 79 | 606360-02 | 1 | DETENT | XJ | |
||
| 82 | 146726-02 | 1 | PLATE | XJ | |
||
| 83 | 146773-01 | 2 | PLATE | XJ | |
||
| 84 | 398693-00 | 1 | POINTER | . | XJ | |
|
| 85 | 146745-00 | 1 | SPRING | XJ | |
||
| 86 | 148611-00 | 1 | COVER | XJ | |
||
| 87 | 148297-00 | 1 | CLAMP | XJ | |
||
| 88 | 146725-01 | 1 | TABLE | XJ | |
||
| 89 | 605292-99 | 1 | FENCE | XJ | |
||
| 90 | 145439-09 | 1 | KNOB | XJ | |
||
| 91 | 394976-00 | 2 | LABEL | WARNING | XJ | |
|
| 96 | 146733-00 | 1 | CLAMP | XJ | |
||
| 98 | 330016-04 | 1 | WASHER | XJ | |
||
| 99 | 149368-00 | 3 | SCREW | XJ | |
||
| 100 | 146774-00 | 2 | ROLLER | XJ | |
||
| 101 | 146760-01 | 1 | STUD | XJ | |
||
| 102 | 148292-00 | 1 | BRACKET | XJ | |
||
| 103 | 142273-00 | 2 | RING | XJ | |
||
| 104 | 146737-00 | 1 | CLAMP | XJ | |
||
| 105 | 392422-00 | 1 | HANDLE | XJ | |
||
| 106 | 605259-01 | 1 | FENCE | XJ | |
||
| 107 | 146731-01 | 1 | TRUNNION | XJ | |
||
| 108 | 147107-02 | 1 | KNOB LOWER | XJ | |
||
| 109 | 147107-01 | 1 | KNOB UPPER | XJ | |
||
| 110 | 148299-00 | 1 | POINTER | XJ | |
||
| 111 | 148524-01 | 1 | WARNING LABEL | XJ | |
||
| 112 | 99368-04 | 2 | NUT | XJ | |
||
| 113 | 151895-00 | 1 | SCREW | XJ | |
||
| 114 | 393520-00 | 1 | TERMINAL BLOCK | XJ | |
||
| 116 | 398563-00 | 1 | LEAD BLACK | BLACK | XJ | |
|
| 118 | 398581-00 | 1 | TERMINAL & LEAD | XJ | |
||
| 124 | 398565-00 | 1 | LEAD WHITE | WHITE | XJ | |
|
| 130 | 152636-00 | 1 | BLADE HOLDER | XJ | |
||
| 131 | 386780-00 | 1 | BEARING | XJ | |
||
| 132 | 153669-00 | 1 | CORD CLAMP | XJ | |
||
| 133 | 330045-13 | 1 | SCREW | M5x0.8x10 MTL THDFMG | XJ | |
|
| 137 | 145312-00 | 1 | PLUG | XJ | |
||
| 138 | 391286-00 | 1 | GUARD PLATE | XJ | |
||
| 139 | 398568-00 | 1 | LEAD WHITE | XJ | |
||
| 140 | 394211-00 | 1 | SCREW | XJ | |
||
| 141 | 330045-23 | 1 | SCREW | XJ | |
||
| 142 | 330045-24 | 2 | SCREW | XJ | |
||
| 143 | 151976-00 | 1 | WARNING LABEL | XJ | |
||
| 150 | 145378-01 | 1 | WRENCH | XJ | |
||
| 160 | 330045-06 | 1 | SCREW | XJ | |
||
| 219 | 147734-06 | 1 | DUSTBAG | XJ | |
||
| 800 | 93488-00 | 1 | GREASE | XJ | |
||
| 800 | 5140061-28 | 1 | GREASE | XJ | |
||
| 837 | 559626-99 | 1 | S.T.SQUARE | XJ | |
