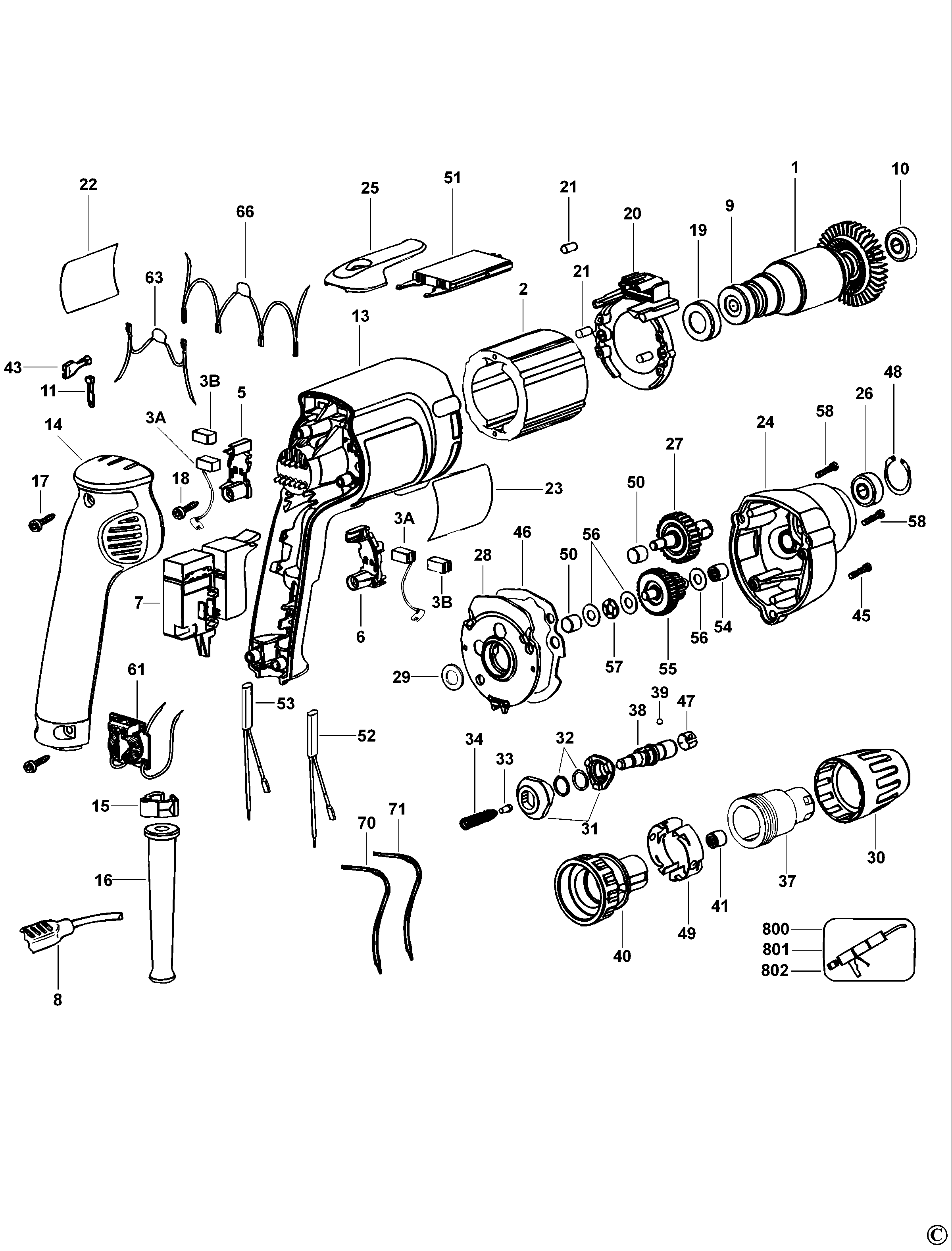

DW266 SCREWDRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 176853-01SV | 1 | ARMATURE & FAN | XJ |  |
||
| 2 | 176849-01SV | 1 | FIELD 230V | XJ | |
||
| 3 | 176846-03 | 2 | BRUSH 230V | XJ | |
||
| 5 | 176801-02 | 1 | BRUSH HOLDER | XJ | |
||
| 6 | 176800-02 | 1 | BRUSH HOLDER | XJ | |
||
| 7 | 176830-15 | 1 | SWITCH | Tyco | XJ | |
|
| 9 | 605040-06 | 1 | BEARING,BALL | XJ |  |
||
| 10 | 605040-06 | 1 | BEARING,BALL | XJ | |
||
| 11 | 449192-00 | 2 | TERMINAL | XJ | |
||
| 13 | 429969-03 | 1 | FIELDCASE | XJ | |
||
| 14 | 176816-01 | 1 | HANDLE COVER | XJ | |
||
| 15 | 176829-00 | 1 | CORD CLAMP | XJ | |
||
| 16 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 16 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | XJ | |
|
| 18 | 176951-00 | 2 | SCREW | XJ | |
||
| 19 | 949721-03 | 1 | SLEEVE | XJ | |
||
| 20 | 176811-00 | 1 | BAFFLE | XJ | |
||
| 21 | 949638-02 | 2 | DAMPER | XJ | |
||
| 22 | 395047-00 | 1 | BRAND LABEL | XJ | |
||
| 23 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 24 | 176709-00SV | 1 | GEARCASE SA | XJ | |
||
| 25 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XJ | |
|
| 27 | 176708-00SV | 1 | SPINDLE & GEAR | XJ | |
||
| 28 | 388761-00 | 1 | GEARCASE COVER | XJ | |
||
| 29 | 23813-00 | 1 | WASHER | XJ | |
||
| 30 | 152492-01 | 1 | COLLAR | XJ | |
||
| 31 | 96558-00 | 2 | CLUTCH | XJ | |
||
| 32 | 089210-00 | 2 | RETAINER | XJ | |
||
| 33 | 021287-00 | 1 | GUIDE | XJ | |
||
| 34 | 86211-00 | 1 | SPRING | XJ | |||
| 37 | 448862-00 | 1 | LOCATOR | 3/8 Nut Runner | XJ | |
|
| 37 | 448862-01 | 1 | LOCATOR | 5/16 Nut Runner | XJ | |
|
| 38 | 176697-00 | 1 | SPINDLE | XJ | |
||
| 39 | 696631-00 | 1 | BALL | XJ | |
||
| 40 | N543023 | 1 | HOUSING | XJ | |
||
| 40 | N543023 | 1 | HOUSING | XJ | |
||
| 41 | 448848-00 | 1 | SLEEVE BEARING | XJ | |
||
| 43 | 136086-02 | 4 | TERMINAL | XJ | |
||
| 45 | 330019-14 | 1 | SCREW | XJ | |
||
| 46 | 176655-00 | 1 | GASKET | XJ | |
||
| 47 | 94518-00 | 1 | RETAINER | XJ | |||
| 48 | 087692-00 | 1 | RETAINER | XJ | |
||
| 49 | 391436-00 | 2 | SPRING | XJ | |
||
| 50 | 093128-00 | 2 | BEARING NEEDLE | XJ | |
||
| 51 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 52 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 53 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 54 | 93129-00 | 1 | BEARING NEEDLE | XJ | |||
| 55 | 176731-00SV | 1 | SPINDLE & GEAR | XJ | |
||
| 56 | 176732-00 | 3 | WASHER | XJ | |
||
| 57 | 143079-00 | 1 | BEARING THRUST | XJ | |
||
| 58 | 330019-16 | 2 | SCREW | XJ | |
||
| 61 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 63 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 66 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 70 | 176893-00 | 1 | LEAD BLACK | XJ | |||
| 71 | 176834-00 | 1 | LEAD BLUE | XJ | |||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 801 | 870889-02 | 1 | GREASE | XJ | |
||
| 802 | 69542-00 | 1 | GREASE | XJ | |
