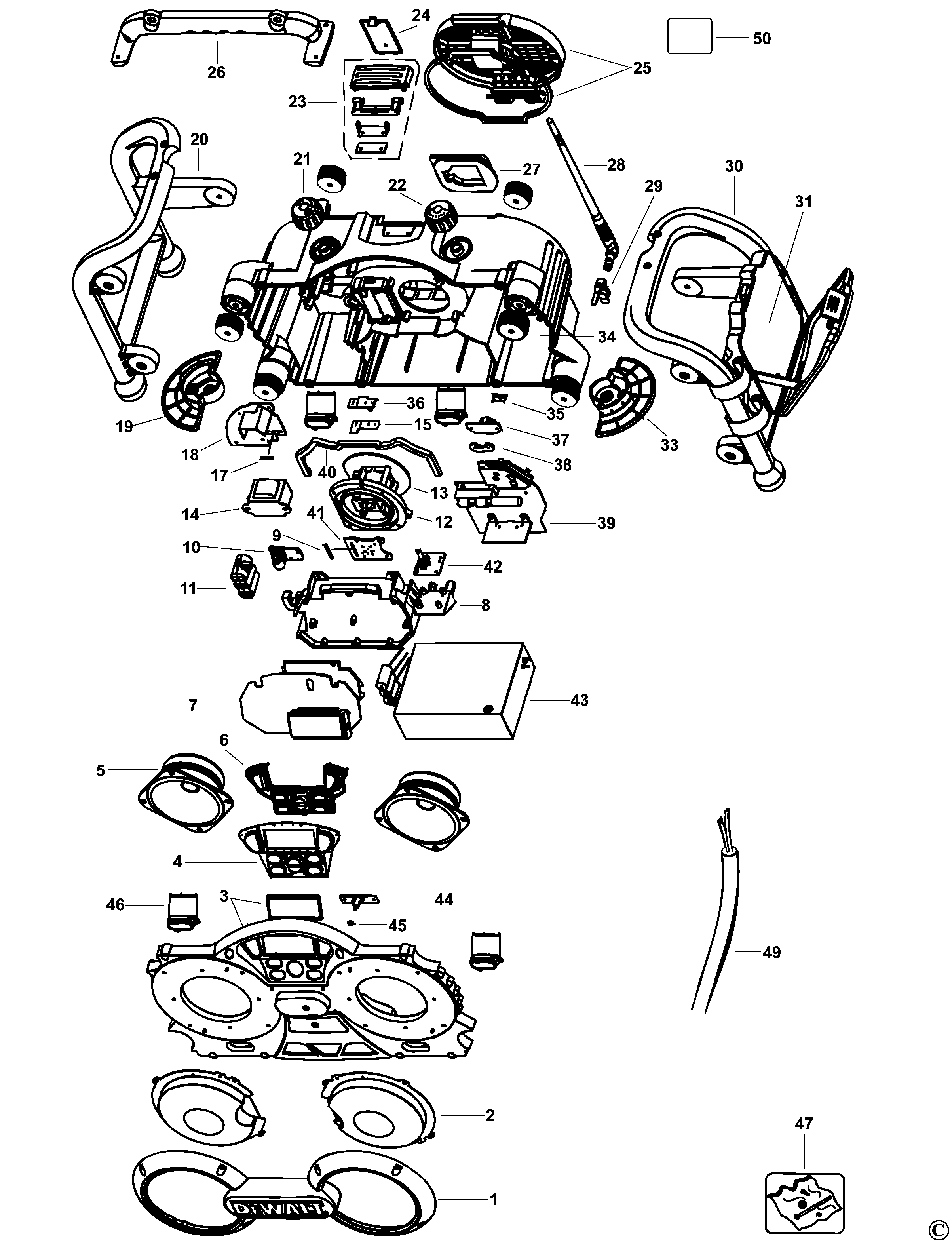

DC011 SITE RADIO Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140019-01 | 1 | FRAME | GRILLE | LX |  |
|
| 2 | 5140019-02 | 2 | SPEAKER | LX | |
||
| 3 | 596800-03 | 1 | PANEL FRONT | LX | |
||
| 4 | 5140019-04 | 1 | BUTTON SA | CONTROL | LX | |
|
| 5 | 5140019-05 | 2 | SPEAKER | 4-INCH | LX | |
|
| 6 | 5140019-06 | 1 | BUTTON | BASE CONTROL | LX | |
|
| 7 | 596800-07 | 1 | PCB SA | PWB Assy | LX | |
|
| 8 | 5140019-08 | 1 | CHASSIS | CONTROL | LX | |
|
| 9 | 5140019-09 | 1 | FUSE | 5X20MM UL 3A 250V | LX | |
|
| 10 | 596800-10 | 1 | CONTROL | VOLUME | LX | |
|
| 11 | 5140019-11 | 1 | BOX | LX | |
||
| 12 | 5140019-12 | 1 | HOLDER SA | PLATE | LX | |
|
| 13 | 5140019-13 | 1 | HOLDER | LX | |
||
| 14 | 5140019-14 | 1 | TRANSFORMER | LX | |
||
| 15 | 596800-15 | 1 | PCB SA | LX | |
||
| 17 | 5140019-17 | 1 | FUSE | 1.6A 250V T218 | LX | |
|
| 18 | 596800-18 | 1 | BOARD | POWER SA | LX | |
|
| 19 | 5140019-19 | 1 | BRACKET | LX | |
||
| 20 | 5140019-20 | 1 | PROTECTOR | PROTECTION LEFT | LX | |
|
| 21 | 5140019-21 | 1 | KNOB | LX | |
||
| 22 | 5140019-22 | 1 | KNOB | LX | |
||
| 23 | 5140019-23 | 1 | LATCH | LX | |
||
| 24 | 5140019-24 | 1 | BATTERY COVER | AA BATTERY DOOR | LX | |
|
| 25 | 5140019-25 | 1 | DOOR | CHARGER BATTERY DOOR | LX | |
|
| 26 | 5140019-26 | 1 | HANDLE UPPER | LX | |
||
| 27 | 5140019-27 | 1 | HOLDER,RUBBER | BATTERY RUBBER | LX | |
|
| 28 | 5140019-28 | 1 | ANTENNA | FM ANT ASSY | LX | |
|
| 29 | 5140019-29 | 1 | COVER | LX | |
||
| 30 | 5140019-30 | 1 | PROTECTOR | PROTECTION RIGHT | LX | |
|
| 31 | 5140019-31 | 1 | CASE | CD BAG ASSY | LX | |
|
| 33 | 5140019-33 | 1 | BRACKET | LX | |
||
| 34 | 429790-20 | 6 | SHOCK ABSORBER | LX | |
||
| 35 | 5140019-35 | 1 | CONTACT | ANT. PLATE | LX | |
|
| 36 | 596800-36 | 1 | PCB SA | BATTERY | LX | |
|
| 37 | 596800-37 | 1 | PCB SA | AUX INPUT | LX | |
|
| 38 | 5140019-38 | 1 | COVER | AUX. IN COVER HLDR. | LX | |
|
| 39 | 596800-39 | 1 | PCB SA | MAIN BOARD | LX | |
|
| 40 | 5140019-40 | 1 | SEAL | CHARGER SEALING | LX | |
|
| 41 | 596800-41 | 1 | CONTACT | ASSEMBLY | LX | |
|
| 42 | 596800-42 | 1 | PCB SA | TUNING ASSEMBLY | LX | |
|
| 43 | 5140019-43 | 1 | CHARGER 115V | SHEILDED ASSY | LX | |
|
| 44 | 596800-44 | 1 | LED | LX | |
||
| 45 | 5140019-45 | 1 | SEAL | LED | LX | |
|
| 46 | 5140019-46 | 4 | DUCT | DUCT PORT ASSY | LX | |
|
| 47 | 5140019-47 | 1 | PARTS PACK | SET OF SCREWS | LX | |
|
| 49 | 596800-49 | 1 | CORD | LX | |
||
| 50 | 624394-00 | 1 | LABEL | LX | |
