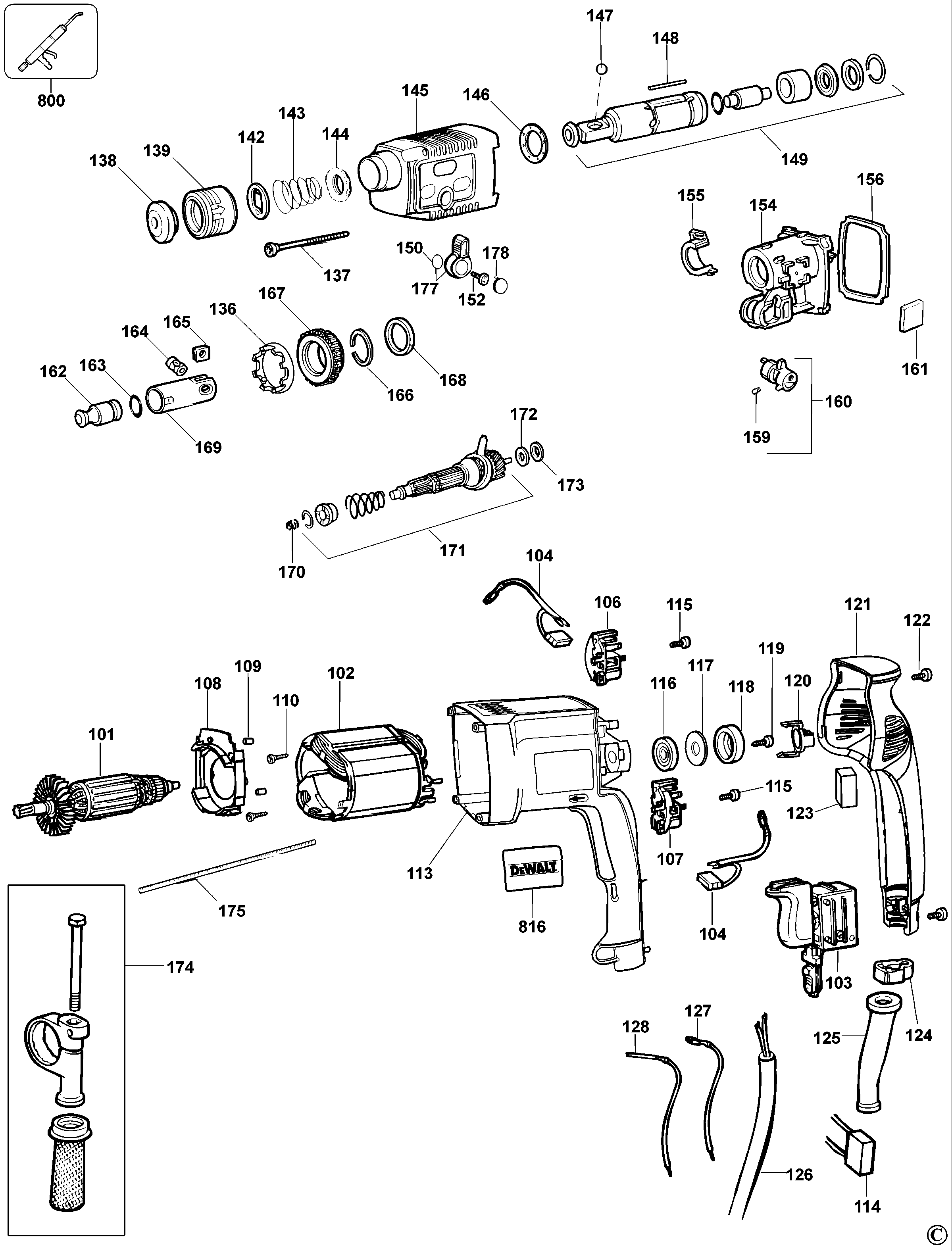

DW561 ROTARY HAMMER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 108 | 327293-00 | 1 | BAFFLE FAN | XJ |  |
||
| 109 | 949638-01 | 2 | BUFFER | XJ |  |
||
| 110 | 747329 | 2 | SCREW | XJ | |
||
| 113 | 327290-05 | 1 | HOUSING SA | Yellow | XJ | |
|
| 115 | 330065-06 | 2 | SCREW | XJ | |
||
| 116 | 330003-19 | 1 | BEARING | XJ | |
||
| 117 | 949876-25 | 1 | WASHER | XJ | |
||
| 118 | 870052 | 1 | SLEEVE | XJ | |
||
| 119 | 329794-00 | 1 | SCREW | XJ | |
||
| 120 | 327296-00 | 1 | CAP | XJ | |
||
| 121 | 327298-01 | 1 | SWITCH COVER | XJ | |
||
| 122 | 330065-07 | 3 | SCREW | XJ | |
||
| 123 | 930026-01 | 1 | BUMPER | XJ | |
||
| 124 | 402649-00 | 1 | CORD CLAMP | XJ | |
||
| 125 | 403395-00 | 1 | CORD PROTECTOR | XJ | |
||
| 127 | 949801-70 | 1 | LEAD BLUE | XJ | |
||
| 128 | 573310-00 | 1 | LEAD SA | XJ | |
||
| 136 | 327110-00 | 1 | SPACER | XJ | |
||
| 137 | 324044-02 | 4 | SCREW | XJ | |
||
| 138 | 323489-00 | 1 | CAP | XJ | |
||
| 139 | 576756-00 | 1 | COLLAR | XJ | |
||
| 142 | 578387-00 | 1 | WASHER | XJ | |
||
| 143 | 871690 | 1 | SPRING | XJ | |
||
| 144 | 324432-00 | 1 | SEAL SA | XJ | |
||
| 145 | 329968-00 | 1 | GEARCASE SA | XJ | |
||
| 146 | 329907-00 | 1 | WASHER | XJ | |
||
| 147 | 583890-00 | 1 | BALL | XJ | |
||
| 148 | 325880-05 | 1 | PIN | XJ | |
||
| 149 | 577080-01 | 1 | SPINDLE SA | XJ | |
||
| 150 | 916323 | 1 | O RING | XJ | |
||
| 152 | 323924-08 | 1 | SCREW | XJ | |
||
| 154 | 327100-00 | 1 | CASTING SA | XJ | |
||
| 155 | 328507-00 | 1 | SHIELD | XJ | |
||
| 156 | 323572-00 | 1 | SEAL | XJ | |
||
| 159 | 326467-00 | 1 | DETENT | XJ | |
||
| 160 | 327094-01 | 1 | CAM | XJ | |
||
| 161 | 327093-00 | 1 | FILTER | XJ | |
||
| 162 | N032136 | 1 | RAM SA | XJ | |
||
| 163 | 577168-00 | 1 | O RING | XJ | |
||
| 164 | 487143-00 | 1 | AXLE | XJ | |
||
| 165 | 327072-00 | 1 | SHIM | XJ | |
||
| 166 | 323762-02 | 1 | CIRCLIP | XJ | |
||
| 167 | 487401-00 | 1 | CLUTCH SA | XJ | |
||
| 168 | 327074-00 | 1 | RING | XJ | |
||
| 169 | 487067-00 | 1 | PISTON | XJ | |
||
| 170 | 323395-33 | 1 | SPRING | XJ | |
||
| 171 | 327101-01 | 1 | INTERSHAFT SA | XJ | |
||
| 172 | 324430-03 | 1 | BEARING AXIAL | XJ | |
||
| 173 | 324431-03 | 1 | WASHER 7 | XJ | |
||
| 174 | 939794-02 | 1 | HANDLE SIDE SA | XJ | |
||
| 175 | 580787-00 | 1 | DEPTH STOP | XJ | |
||
| 177 | 327119-00 | 1 | LEVER | XJ | |
||
| 178 | 328809-00 | 1 | COVER | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 816 | 395047-00 | 1 | BRAND LABEL | XJ | |
