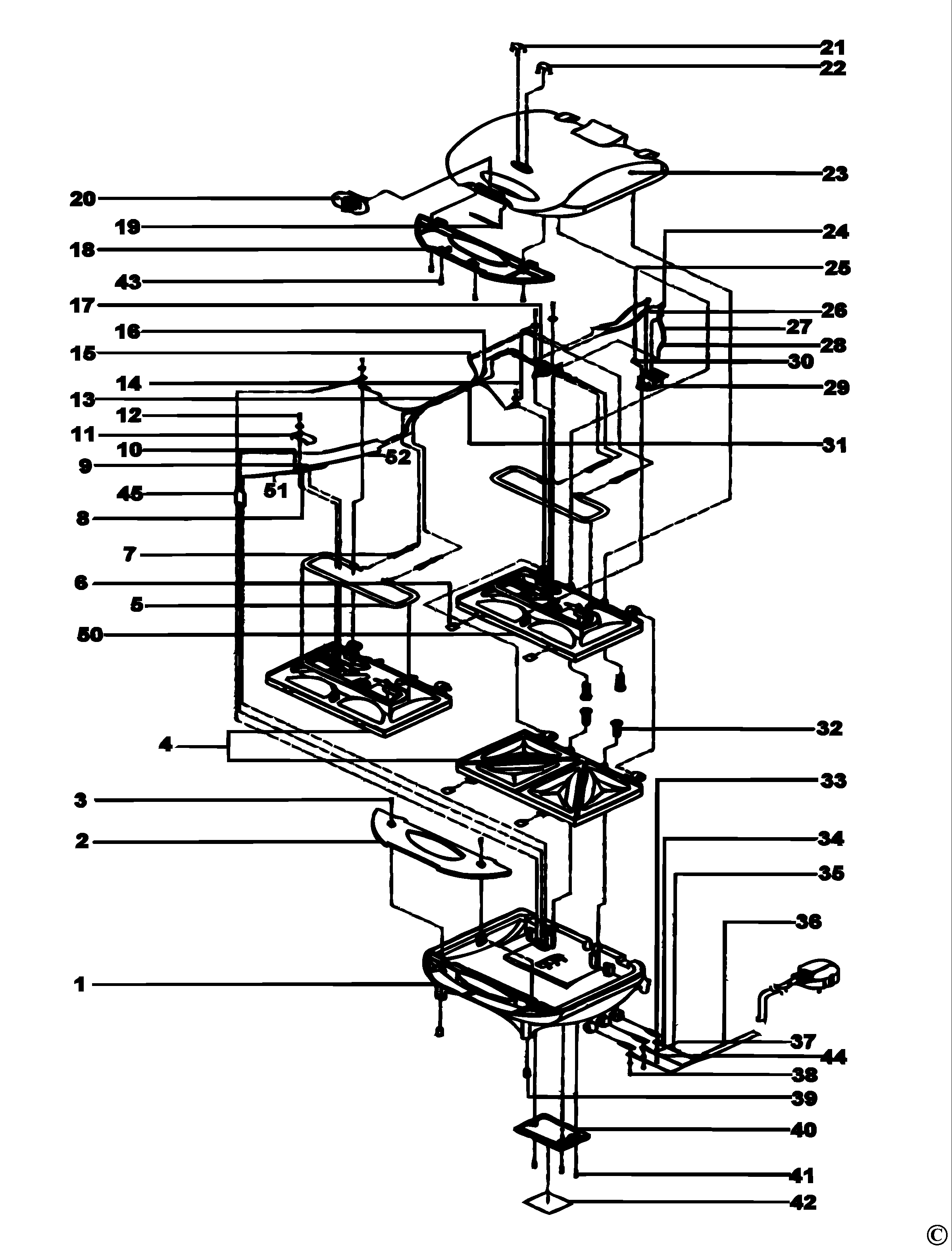

TS45 SANDWICH TOASTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010062-01 | 1 | BASE | TS45-1 | XJ |  |
|
| 2 | 6010062-02 | 1 | COVER | TS45-2 | XJ | ||
| 3 | 6010062-03 | 1 | SCREW | TS45-3 | XJ | ||
| 4 | 6010062-04 | 1 | ELEMENT SA | 230V | TS45-4/5A | XJ | |
| 4 | 6010062-41 | 1 | CORDSET | 115V | TS45-36B | XJ | |
| 4 | 6010062-42 | 1 | ELEMENT SA | 230V | TS45-4A/5A | XJ | |
| 4 | 6010062-43 | 1 | ELEMENT SA | 115V | TS45-4A/5B | XJ | |
| 5 | 6010062-04 | 1 | ELEMENT SA | 230V | TS45-4/5A | XJ | |
| 5 | 6010062-41 | 1 | CORDSET | 115V | TS45-36B | XJ | |
| 5 | 6010062-42 | 1 | ELEMENT SA | 230V | TS45-4A/5A | XJ | |
| 5 | 6010062-43 | 1 | ELEMENT SA | 115V | TS45-4A/5B | XJ | |
| 6 | 6010062-06 | 1 | TUBE SILICONE | TS45-6 | XJ | ||
| 7 | 6010062-07 | 1 | TERMINAL | PLUG TERMINAL | TS45-7 | XJ | |
| 8 | 6010062-08 | 1 | TERMINAL | STRIP TERMINAL | TS45-8 | XJ | |
| 9 | 6010062-44 | 1 | FUSE | 115V | TS45-9B | XJ | |
| 9 | 6010062-09 | 1 | FUSE | 230V | TS45-9A | XJ | |
| 10 | 6010062-10 | 1 | TUBE SILICONE | TS45-10 | XJ | ||
| 11 | 6010062-11 | 1 | PLATE | TS45-11 | XJ | |
|
| 12 | 6010062-12 | 1 | SCREW | TS45-12 | XJ | ||
| 13 | 6010062-13 | 1 | TUBE | TS45-13 | XJ | |
|
| 14 | 6010062-14 | 1 | WASHER | TS45-14 | XJ | ||
| 15 | 6010062-15 | 1 | TERMINAL | SOCKET TERMINAL | TS45-15 | XJ | |
| 16 | 6010062-16 | 1 | TERMINAL | SOCKET TERMINAL | TS45-16 | XJ | |
| 17 | 6010062-17 | 1 | THERMOSTAT | TS45-17 | XJ | |
|
| 18 | 6010062-18 | 1 | COVER | TS45-18 | XJ | ||
| 19 | 6010062-19 | 1 | SHAFT | TS45-19 | XJ | |
|
| 20 | 6010062-20 | 1 | COVER | BUTTON DOOR | TS45-20 | XJ | |
| 21 | 6010062-21 | 1 | COVER | TS45-21 | XJ | ||
| 22 | 6010062-22 | 1 | COVER | TS45-22 | XJ | ||
| 23 | 6010062-23 | 1 | CASE | TS45-23 | XJ | |
|
| 24 | 6010062-24 | 1 | NEON | TS45-24 | XJ | |
|
| 25 | 6010062-25 | 1 | SCREW | TS45-25 | XJ | ||
| 26 | 6010062-26 | 1 | TUBE | FIBER TUBE | TS45-26 | XJ | |
| 27 | 6010062-27 | 1 | RESISTOR | TS45-27 | XJ | ||
| 28 | 6010062-28 | 1 | TUBE | FIBER TUBE | TS45-28 | XJ | |
| 29 | 6010062-29 | 1 | BRACKET | LAMP | TS45-29 | XJ | |
| 30 | 6010062-30 | 1 | WASHER | SPRING WASHER | TS45-30 | XJ | |
| 31 | 6010062-31 | 1 | TUBE | FIBER TUBE | TS45-31 | XJ | |
| 32 | 6010062-32 | 1 | SCREW | TS45-32 | XJ | ||
| 33 | 6010062-33 | 1 | TERMINAL | PLUG TERMINAL | TS45-33 | XJ | |
| 34 | 6010062-34 | 1 | TERMINAL | TS45-34 | XJ | |
|
| 35 | 6010062-35 | 1 | TUBE | FIBER TUBE | TS45-35 | XJ | |
| 36 | 6010062-36 | 1 | CORDSET | 230V | TS45-36A | XJ | |
| 36 | 6010062-41 | 1 | CORDSET | 115V | TS45-36B | XJ | |
| 37 | 6010062-37 | 1 | WASHER | SPRING WASHER | TS45-37 | XJ | |
| 38 | 6010062-38 | 1 | SCREW | TS45-38 | XJ | ||
| 39 | 6010062-39 | 1 | RUBBER PAD | TS45-39 | XJ | ||
| 40 | 6010062-40 | 1 | COVER | TS45-40 | XJ | |
|
| 41 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 42 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 43 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 44 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 45 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 50 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 51 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 52 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ |
