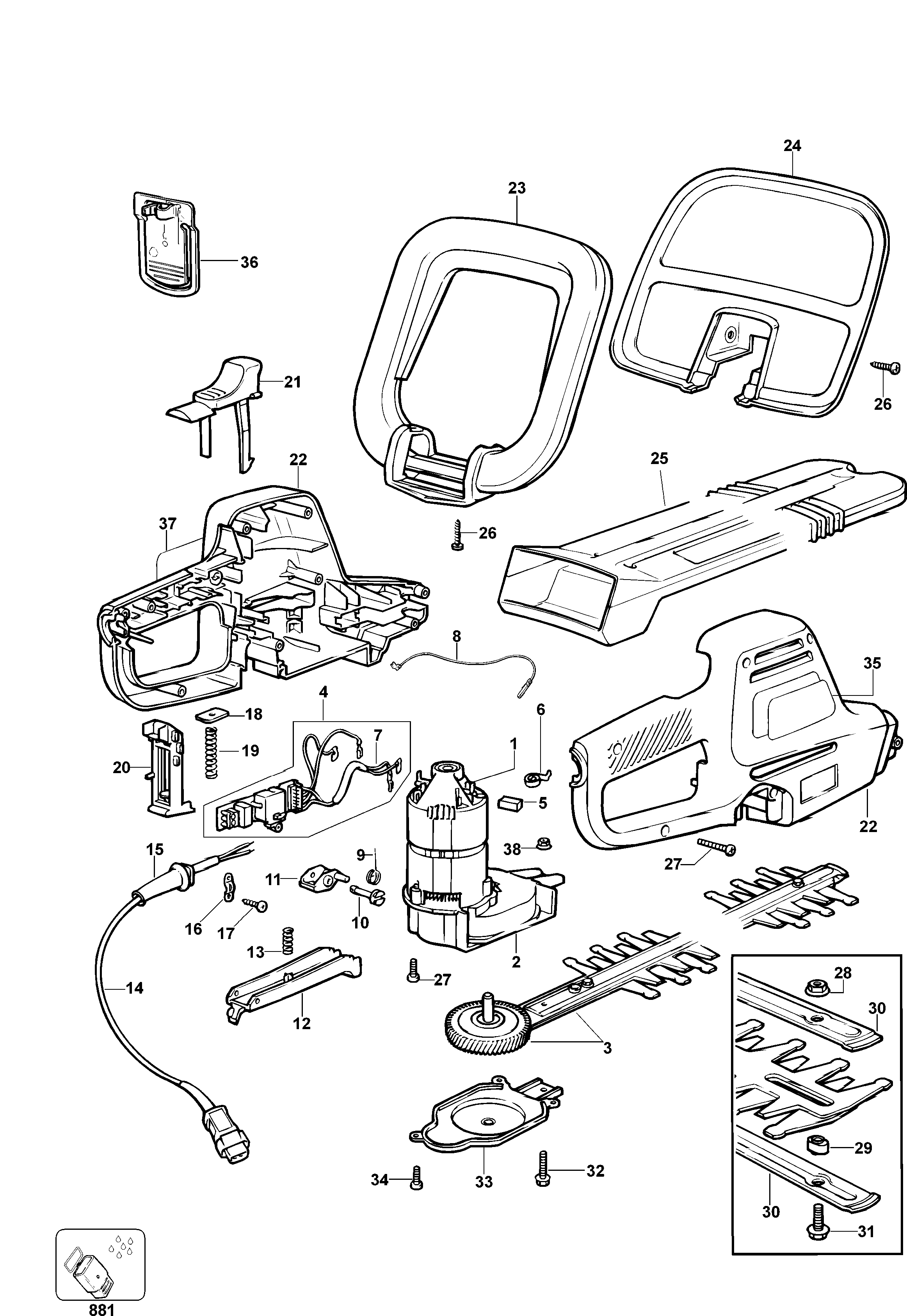

GT540 HEDGETRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 574800-00 | 1 | MOTOR & GEARCASE | GB |  |
||
| 2 | 798886 | 1 | GEARCASE SA | GB | |
||
| 3 | 798894-20 | 1 | BLADE & GEAR SA | GT540 | GB | |
|
| 3 | 798894-20 | 1 | BLADE & GEAR SA | GT540SI | GB | |
|
| 3 | 798894-19 | 1 | BLADE & GEAR SA | GT530 (TYP 1& 2) | GB | |
|
| 3 | 798894-18 | 1 | BLADE & GEAR SA | GT520 | GB | |
|
| 4 | 798936-01 | 1 | SWITCH SA | GB | |
||
| 5 | 832998-04 | 2 | BRUSH 230V | GB | |
||
| 6 | 747634 | 2 | SPRING BRUSH | GB | |
||
| 7 | 796324 | 1 | LEAD SA | GB | |
||
| 8 | 811594 | 1 | LEAD SA | GB | |
||
| 9 | 798935 | 1 | SPRING | GB | |
||
| 10 | 799317 | 1 | PIN | GB | |
||
| 11 | 799318 | 1 | PIVOT | GB | |
||
| 12 | 798897-02 | 1 | TRIGGER | TYPE 2 | GB | |
|
| 12 | 798897-01 | 1 | TRIGGER | GB | |
||
| 13 | 806128 | 1 | SPRING | GB |  |
||
| 14 | 330048-52 | 1 | CORDSET (SPLASH) | GB | |
||
| 15 | 770235 | 1 | PROTECTOR | GB | |
||
| 16 | 821070 | 1 | CORD CLAMP | GB | |
||
| 17 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 18 | 805608 | 1 | RETAINER | GB | |
||
| 19 | 806189 | 1 | SPRING | GB | |
||
| 20 | 798934 | 1 | PUSHROD | GB | |
||
| 21 | 373081 | 1 | LOCK BUTTON | GB | |
||
| 22 | 798666-08 | 1 | CLAMSHELL PAIR | GB | |
||
| 22 | 798666-08 | 1 | CLAMSHELL PAIR | SYLVAN GREEN | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GB | |
||
| 24 | 798901-04 | 1 | GUARD | GB | |
||
| 25 | 579517-01 | 1 | SHEATH | GT540 | GB | |
|
| 25 | 579517-01 | 1 | SHEATH | GT540 | GB | |
|
| 25 | 798900-03 | 1 | SHEATH | GT530 | GB | |
|
| 25 | 579517-00 | 1 | SHEATH | GT530 | GB | |
|
| 25 | 798900-02 | 1 | SHEATH | GT520 | GB | |
|
| 26 | 748636 | 6 | SCREW | GB | |
||
| 27 | 747329 | 10 | SCREW | GB | |
||
| 28 | 798755 | 7 | NUT M5 | GB | |||
| 29 | 798753 | 8 | SPACER | GB | |
||
| 30 | 798745-03 | 2 | SUPPORT | GT530 | GB | |
|
| 30 | 798745-04 | 2 | SUPPORT | GT540 | GB | |
|
| 30 | 798745-02 | 2 | SUPPORT | GT520 | GB | |
|
| 31 | 371954-01 | 7 | BOLT | GB | |
||
| 32 | 798754-03 | 1 | BOLT | GB | |
||
| 33 | 798896 | 1 | GEARCASE COVER | GB | |
||
| 34 | 809015 | 3 | SCREW | GB | |
||
| 35 | 579967-00 | 1 | WARNING LABEL | GB | |
||
| 36 | 373083 | 1 | CLIP | GB | |
||
| 37 | 798907-17 | 1 | BRAND LABEL | TYPE 2 | GB | |
|
| 37 | 798907-10 | 1 | BRAND LABEL | GB | |
||
| 38 | 807817-01 | 1 | NUT M5 | GB | |
||
| 881 | 844840 | 1 | COUPLER (SPLASH) | GB | |
