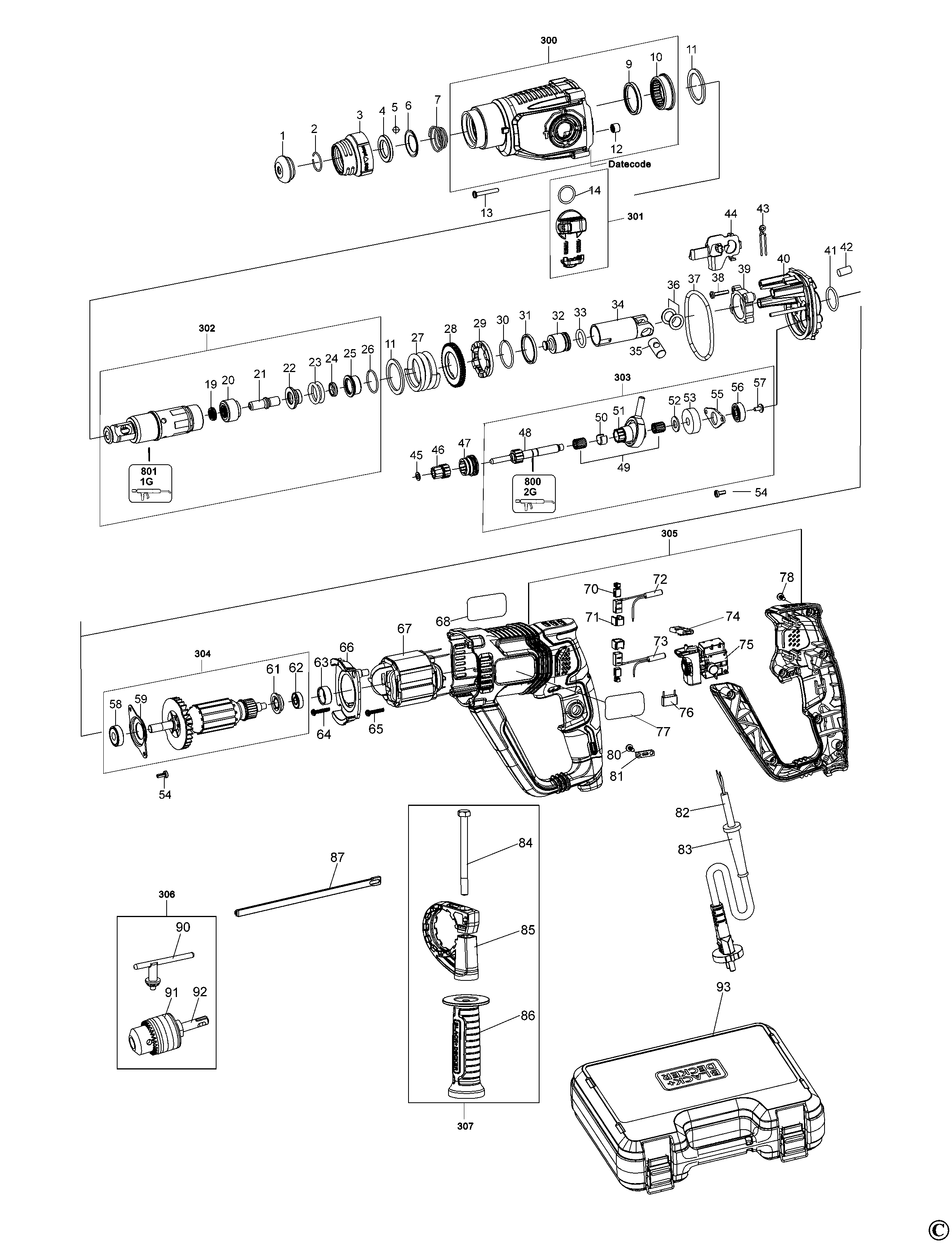

BEHS02 HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N767453 | 1 | RUBBER BOOT | GB |  |
||
| 2 | 4030104010 | 1 | CIRCLIP | GB | |
||
| 3 | N465555 | 1 | TUBE | GB | |
||
| 4 | 4030104020 | 1 | WASHER. CUP | GB | |
||
| 5 | 4030304014 | 1 | BALL STEEL | GB | |
||
| 6 | 4030104006 | 1 | RETAINER | GB | |
||
| 7 | 4030108003 | 1 | SPRING COMPRESSION | GB | |
||
| 9 | N767462 | 1 | SEAL | GB | |
||
| 10 | 577813-00 | 1 | BEARING NEEDLE | GB | |
||
| 11 | N465552 | 2 | WASHER | GB | |
||
| 12 | N465533 | 1 | BEARING | GB | |
||
| 13 | 330065-13 | 4 | SCREW | GB | |
||
| 14 | N767452 | 1 | O RING | GB | |
||
| 19 | N776745 | 1 | RING | GB | |
||
| 20 | N465543 | 1 | BEARING | GB | |
||
| 21 | N465541 | 1 | BEAT PIECE | GB | |
||
| 22 | N465545 | 1 | DAMPER | GB | |
||
| 23 | N767461 | 2 | O RING | GB | |
||
| 24 | N767460 | 1 | RING | CATCH | GB | |
|
| 25 | N465546 | 1 | RAM | GB | |
||
| 26 | N465548 | 1 | RING | GB | |
||
| 27 | N465551 | 1 | SPRING | GB | |
||
| 28 | N465550 | 1 | GEAR | GB | |
||
| 29 | N465549 | 1 | RING | GB | |
||
| 30 | N465553 | 1 | RING | GB | |
||
| 31 | N465554 | 1 | RING | GB | |
||
| 32 | N465560 | 1 | RAM | GB | |
||
| 33 | N465561 | 1 | O RING | GB | |
||
| 34 | N465559 | 1 | PISTON | GB | |
||
| 35 | N465562 | 1 | BEARING SPINDLE | GB | |
||
| 36 | N465563 | 2 | WASHER | GB | |
||
| 37 | N767463 | 1 | O RING | GB | |
||
| 38 | N465538 | 3 | SCREW | GB | |
||
| 39 | N465537 | 1 | BEARING | GB | |
||
| 40 | N465534 | 1 | HOUSING BEARING | GB | |
||
| 41 | N767445 | 1 | O RING | GB | |
||
| 42 | N465536 | 1 | FELT | GB | |
||
| 43 | N465523 | 1 | SPRING | GB | |
||
| 44 | N465521 | 1 | PLATE | GB | |
||
| 45 | N465566 | 1 | WASHER | GB | |
||
| 46 | N465567 | 1 | GEAR | GB | |
||
| 47 | N465568 | 1 | COLLAR | GB | |
||
| 48 | N465565 | 1 | INTER SHAFT | GB | |
||
| 49 | 577818-00 | 1 | BEARING CAGE | GB | |
||
| 50 | N465570 | 2 | SPACER | GB | |
||
| 51 | N465569 | 1 | BEARING | GB | |
||
| 52 | N465574 | 1 | WASHER | GB | |
||
| 53 | N465573 | 1 | GEAR | GB | |
||
| 54 | N468881 | 4 | SCREW | GB | |
||
| 55 | N465576 | 1 | BEARING PLATE | GB | |
||
| 56 | 49106007 | 1 | BEARING | GB | |
||
| 57 | N468882 | 1 | SCREW | GB | |
||
| 58 | 49111014 | 1 | BEARING | GB | |
||
| 59 | N465516 | 1 | BEARING PLATE | GB |  |
||
| 61 | N767139 | 1 | WASHER | GB | |
||
| 62 | 49111011 | 1 | BEARING | GB | |
||
| 63 | N767444 | 1 | SLEEVE BEARING | GB | |
||
| 64 | N496704 | 2 | SCREW | GB | |
||
| 65 | N468887 | 2 | SCREW | GB | |
||
| 66 | N761129 | 1 | GUIDE SUPPORT | GB | |
||
| 67 | N783966 | 1 | FIELD SA | GB | |
||
| 68 | N763508 | 1 | RATING PLATE | GB | |
||
| 70 | N863224 | 1 | BRUSH PAIR 230V SA | GB | |
||
| 71 | N764741 | 2 | BRUSH HOLDER | GB | |
||
| 72 | N811999 | 1 | INDUCTOR | LONG | GB | |
|
| 73 | N811998 | 1 | INDUCTOR | SHORT | GB | |
|
| 74 | N678386 | 1 | ACTUATOR FWD/REV | GB | |
||
| 75 | N675081 | 1 | SWITCH VARIABLE | SPEED | GB | |
|
| 76 | N804493 | 1 | CAPACITOR | GB | |
||
| 77 | N763514 | 1 | BRAND LABEL | GB | |
||
| 78 | 330065-07 | 8 | SCREW | GB | |
||
| 80 | 49206015 | 2 | SCREW | GB | |
||
| 81 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 82 | N862033 | 1 | CORDSET | GB | |
||
| 83 | N767140 | 1 | CORD PROTECTOR | GB | |
||
| 84 | N778856 | 1 | BOLT | GB | |
||
| 85 | N761586 | 1 | CLAMP | GB | |
||
| 86 | N614276 | 1 | HANDLE | GB | |
||
| 87 | 372814-00 | 1 | DEPTH STOP | GB | |
||
| 90 | 621400-00 | 1 | CHUCK KEY 13MM | GB | |
||
| 91 | 621050-00 | 1 | CHUCK 13MM | GB | |
||
| 92 | N469685 | 1 | CHUCK | GB | |
||
| 93 | N764301 | 1 | KITBOX | GB | |
||
| 300 | N862027 | 1 | GEARCASE SA | GB | |
||
| 301 | N862028 | 1 | KNOB SA | GB | |
||
| 302 | N776387 | 1 | SPINDLE SA | GB | |
||
| 303 | N465564 | 1 | INTER SHAFT SA | GB | |
||
| 304 | N862940 | 1 | ARMATURE SA | GB | |
||
| 305 | N862029 | 1 | FIELDCASE SA | GB | |
||
| 306 | N862030 | 1 | CHUCK SA | GB | |
||
| 307 | N862031 | 1 | HANDLE SA | GB | |
||
| 800 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | 7G | GB | |
| 801 | N505291 | 1 | GREASE | 75G | GB |
