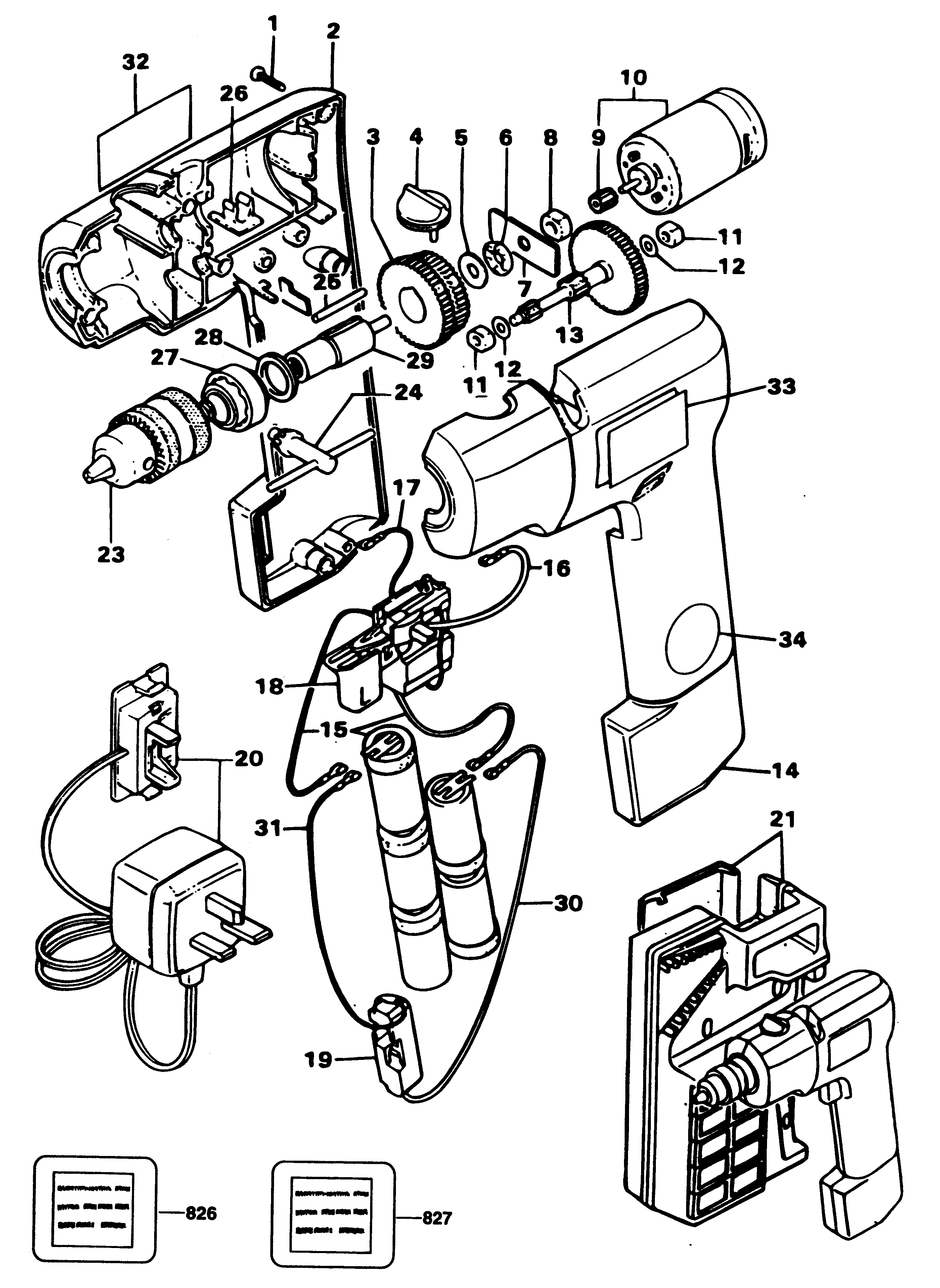

SC525R CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 793067 | 7 | SCREW | XJ |  |
||
| 3 | 739491 | 1 | GEAR | XJ | |
||
| 3 | 568916-00 | 1 | KNOB | XJ | |
||
| 4 | 739318 | 1 | SELECTOR SA | XJ | |
||
| 4 | 6010167-11 | 2 | FILTER | XJ | |
||
| 5 | 956442 | 1 | WASHER | XJ | |
||
| 6 | 994166 | 1 | BEARING | XJ | |
||
| 7 | 739590 | 1 | PLATE | XJ | |
||
| 9 | 739615 | 1 | PINION | XJ | |
||
| 10 | 739604 | 1 | MOTOR SA | XJ | |
||
| 11 | 739295 | 2 | BEARING | XJ | |
||
| 13 | 750484 | 1 | SHAFT SA | XJ | |
||
| 16 | 739602 | 1 | LEAD RED | XJ | |
||
| 16 | 806167-01 | 2 | MOTOR SA | XJ | |
||
| 17 | 739603 | 1 | LEAD BLACK | XJ | |
||
| 18 | 844271 | 1 | SWITCH SA | TYPE H1 | XJ | |
|
| 18 | 844271 | 1 | SWITCH SA | TYPE H1A | XJ | |
|
| 18 | 806167-01 | 2 | MOTOR SA | H5 H6 & DN31B | XJ | |
|
| 20 | 739987 | 1 | CHARGER | XJ | |
||
| 23 | 568983-00 | 1 | O RING | XJ | |
||
| 24 | 330034-00 | 1 | CHUCK KEY 10MM | TYPE H1A | XJ | |
|
| 25 | 739328 | 1 | DOWEL | XJ | |
||
| 26 | 844068 | 1 | CHUCK KEY HOLDER | TYPE H1A | XJ | |
|
| 27 | 750260-49 | 1 | HEATSINK SA | XJ | |
||
| 27 | 368256 | 6 | WASHER THRUST | H5 H6 & DN31B | XJ | |
|
| 27 | 833876 | 6 | ELEMENT | H1 H3 | XJ | ||
| 28 | 955726 | 1 | WASHER | XJ | |
||
| 29 | 739585 | 1 | SPINDLE | XJ | |
||
| 29 | 368251 | 2 | CLAMSHELL | XJ | |
||
| 31 | 780465 | 1 | LEAD BLACK | XJ | |
||
| 33 | 739989 | 1 | BRAND LABEL | XJ | |||
| 34 | 739996 | 1 | LABEL | XJ | |||
| 36 | 870599 | 2 | GUIDE | XJ | |
||
| 41 | 577501-00 | 1 | CUTTER DECK | XJ | |||
| 45 | 90558559 | 1 | O RING | XJ |  |
||
| 826 | 750288 | 1 | LABEL | XJ | |||
| 827 | 739998 | 1 | LABEL | XJ |
