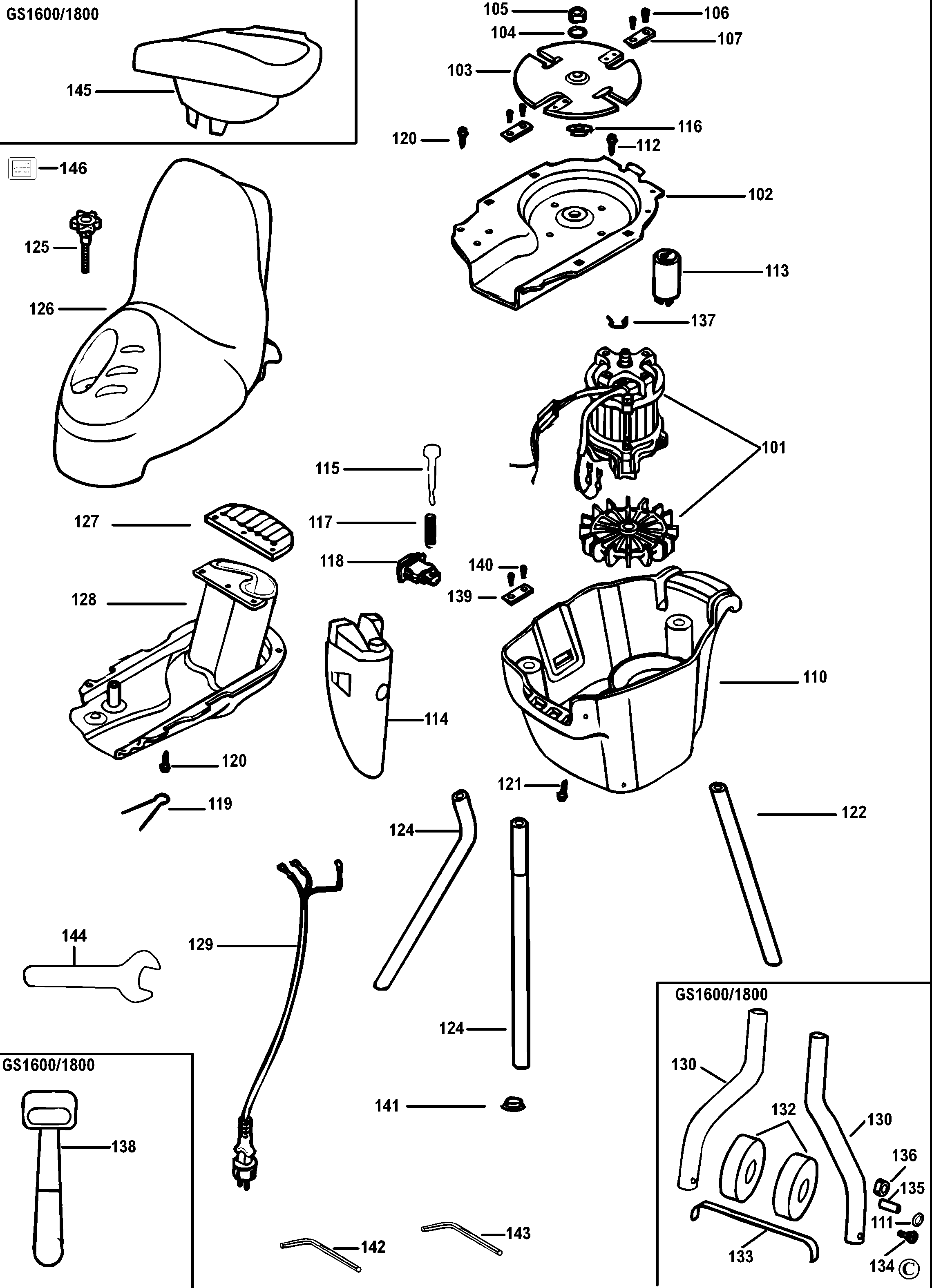

GS1800 SHREDDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330060-92 | 1 | CORDSET (M/PLUG) GB | GB |  |
||
| 2 | AR802-05 | 1 | VALVE | GB |  |
||
| 3 | 597784-00 | 1 | KNOB | GB | |
||
| 4 | 1004748-84 | 1 | HANDLE | GB | |
||
| 5 | 597814-00 | 1 | CAPACITOR | GB | |
||
| 6 | SCMT058363 | 1 | LINER | Upto 2015 | GB | ||
| 7 | 1004752-56 | 1 | DIAL PLATE | GB | |
||
| 8 | 579564-00 | 1 | HOLDER | GB | |
||
| 9 | AD59011 | 1 | ROTOR | GB | |
||
| 11 | 151002-00 | 19 | DUST DEFLECTOR | GB | |
||
| 13 | 90626849 | 1 | SPRING | GB | |
||
| 14 | AW435-01 | 1 | CASE | GB | |
||
| 15 | 278D-011A6 | 1 | ANVIL | GB | |
||
| 16 | 597810-00 | 1 | NUT | GB | |
||
| 17 | 1004750-62 | 1 | PAD SA | GB | |
||
| 18 | 1004748-88 | 1 | BUSHING | GB | |
||
| 19 | 243G-007 | 2 | ROTOR | GB | |
||
| 20 | 6010119-10 | 2 | WASHER | GB | |
||
| 21 | 330060-92 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 22 | 1004748-96 | 1 | NOZZLE | GB | |
||
| 24 | 1003406-00 | 1 | LOCK NUT | GB | |||
| 28 | 373883 | 1 | TERMINAL BLOCK | GB | |
||
| 29 | 31G200025 | 1 | SPINDLE | GB | |
||
| 30 | 1004748-89 | 2 | COVER-TOP | GB | |
||
| 31 | AWM114-04 | 1 | SPACER | GB | |||
| 32 | AW435-07 | 1 | FRAME | GB | |
||
| 33 | AW240-31 | 1 | PLATE | GB | |
||
| 34 | AD59001 | 1 | INLET | GB | |
||
| 35 | 628939-00 | 1 | CAPACITOR | GB | |
||
| 36 | N011328 | 2 | LOCKING DEVICE | GB | |||
| 37 | 231XP-724 | 1 | HAMMER | GB | |
||
| 38 | 646505-00 | 1 | SPACER | GB | |||
| 39 | 243I-002 | 1 | CASE | GB | |
||
| 40 | 4340800 | 1 | TANK | GB | |
||
| 41 | 30D200178 | 1 | ANVIL | GB | |
||
| 44 | 1002015-00 | 1 | LEADWIRE | GB | |
||
| 45 | 1004438-01 | 2 | BEARING | 75 x 19 x 6 | GB | ||
| 46 | AD59034 | 1 | CHUCK | GB | |
||
| 47 | 1004771-75 | 1 | BASE SA | GB | |
||
| 48 | 1004747-81 | 1 | CAP SA | GB | |
||
| 49 | N011328 | 2 | LOCKING DEVICE | GB | |||
| 50 | 1004684-22 | 1 | SPRING | GB | |
||
| 52 | AD59036 | 1 | RETAINER | GB | |
||
| 57 | 90525728 | 1 | BASE | GB | |||
| 99 | 398068-00 | 1 | SPACER | GB | |
||
| 100 | ATR35-21 | 1 | ROTOR | GB | |
||
| 101 | 568686-00 | 1 | MOTOR | GB | |
||
| 101 | 597815-00 | 1 | LED | GB | |
||
| 102 | 568687-00 | 1 | MOTOR COVER | GB | |
||
| 103 | 568672-00 | 1 | BLADE CARRIER | GB | |
||
| 103 | SCMT066577 | 1 | SLIDE | GB | |||
| 104 | 568689-00 | 1 | WASHER | GB | |
||
| 104 | SID-SP-12 | 1 | MAT | GB | |||
| 105 | 568670-00 | 1 | NUT | GB | |
||
| 105 | N089663 | 2 | KITBOX | GB | |
||
| 106 | 568698-00 | 4 | SCREW | GB | |
||
| 106 | SCMT058600 | 1 | LINER | GB | |||
| 107 | 918338 | 2 | KNIFE | GB | |
||
| 107 | 597816-00 | 1 | TUBE | GB | |
||
| 108 | 1002490-00 | 1 | INNER FLANGE | GB | |
||
| 109 | 1002488-00 | 1 | GUARD COVER | GB | |
||
| 110 | 568666-00 | 1 | MOTOR COVER | GB | |
||
| 110 | SID-SP-1 | 1 | WHEEL SA | GB | |||
| 111 | 279718-00 | 2 | SPACER 144460 | GB | |
||
| 111 | SID-SP-15 | 1 | MAT | GB | |||
| 112 | 568696-00 | 4 | SCREW | GB | |
||
| 112 | 1003448-00 | 1 | BRUSH HOLDER | <03.05.2010 | GB | ||
| 113 | 559815-00 | 1 | CAPACITOR | GB | |
||
| 114 | 568688-00 | 1 | SWITCH COVER | GB | |
||
| 114 | 6010023-07 | 2 | CONTROLLER | MAIN CONTROLLER | GB | |
|
| 115 | 568660-00 | 1 | ACTUATOR | GB | |
||
| 116 | 568661-00 | 1 | SPACER | GB | |
||
| 117 | 568683-00 | 1 | SPRING | GB | |
||
| 117 | 596924-00 | 1 | WING NUT | GB | |
||
| 118 | 568680-00 | 1 | SWITCH | GB | |
||
| 118 | SCMT44095 | 1 | REPAIR KIT | >03.05.2010 | GB | ||
| 119 | 568669-00 | 1 | LOCKING PIN | GB | |
||
| 120 | 568694-00 | 6 | SCREW | GB | |
||
| 120 | MB6901-26 | 1 | CAGE | GB | |
||
| 121 | 568703-00 | 4 | SCREW | GB | |
||
| 122 | 568677-00 | 1 | LEG | GB | |
||
| 124 | 568676-00 | 2 | LEG | GB | |
||
| 125 | 568682-00 | 1 | KNOB | GB | |
||
| 126 | 568668-00 | 1 | UPPER MOULDING | GB | |
||
| 127 | 568671-00 | 1 | RUBBER PAD | GB | |
||
| 128 | 568692-00 | 1 | CHUTE | GB | |
||
| 129 | 568662-00 | 1 | CORDSET | GB | |
||
| 130 | 568678-00 | 2 | LEG | GB | |
||
| 130 | 622209-02 | 1 | INNER FLANGE | 16mm | GB | ||
| 131 | SCMT066580 | 1 | LINER | GB | |||
| 132 | 568690-00 | 2 | WHEEL | GB | |
||
| 132 | AW262-01 | 1 | CASE | GB | |
||
| 133 | 568693-00 | 1 | CROSS BRACE | GB | |
||
| 134 | 568697-00 | 2 | BOLT | GB | |
||
| 135 | 568673-00 | 2 | SLEEVE | GB | |
||
| 135 | 401751-01 | 1 | CORD PROTECTOR | GB | |
||
| 136 | 559832-00 | 2 | NUT | GB | |
||
| 136 | AS725-15 | 1 | GUIDE | GB | |
||
| 137 | 568702-00 | 1 | LOCKING PIN | GB | |
||
| 137 | 1003450-00 | 1 | SWITCH | GB | |||
| 138 | 560130-00 | 1 | PUSHROD | GB | |
||
| 139 | 568675-00 | 1 | CORD CLAMP | GB | |
||
| 139 | 1004761-69 | 1 | BASE | GB | |
||
| 140 | 279716-00 | 2 | SCREW 140080 | GB | |
||
| 140 | 1004525-33 | 1 | FIELD | GB | |
||
| 141 | 568691-00 | 2 | PLUG | GB | |
||
| 142 | 568664-00 | 1 | KEY | GB | |
||
| 143 | 560128-00 | 1 | HEX KEY 6 MM | GB | |
||
| 144 | 568665-00 | 1 | SPANNER | GB | |
||
| 145 | 568679-00 | 1 | FUNNEL | GB | |
||
| 146 | 569272-00 | 1 | WARNING LABEL | GB | |
||
| 151 | 1004751-96 | 1 | BASE SA | GB | |
||
| 152 | 596898-00 | 1 | WASHER | GB | |
||
| 153 | 596907-00 | 1 | SCREW | M5 x 14 | GB | |
|
| 154 | 1004438-11 | 1 | RING | Ø 5mm | GB | ||
| 155 | MTY822597 | 1 | ADAPTOR | GB | |
||
| 156 | 30G100017 | 1 | IMPACTOR | GB | |||
| 157 | 597805-00 | 1 | CORD PROTECTOR | GB | |
||
| 158 | 1004761-68 | 1 | SUPPORT | GB | |
||
| 159 | SID-SP-5 | 1 | LOCK SA | GB | |||
| 160 | AW435-13 | 1 | PLATE | GB | |
||
| 165 | AGQP50M-33 | 1 | SPINDLE | GB | |
||
| 180 | 1003769-00 | 1 | RATING PLATE | GB | |||
| 181 | 1003692-00 | 1 | GEARCASE SA | GB | |
||
| 182 | 1004747-43 | 1 | COVER | GB | |
||
| 183 | 6010119-18 | 1 | BEARING SLIDE | GB | |||
| 184 | 90524179 | 1 | BATTERY PACK 7.2V | NiMH | GB | ||
| 185 | 5102325-15 | 6 | HEAD SA | GB | |||
| 186 | AW240-37 | 1 | HAMMER | GB | |
||
| 187 | 243J-021 | 1 | REGULATOR | GB | |
||
| 188 | 1004769-56 | 1 | FAN SA | GB | |
||
| 189 | 597829-00 | 1 | BRACKET | GB | |
||
| 200 | 1004713-83 | 1 | SPACER | GB | |
||
| 201 | 1004752-06 | 1 | BLADE SA | GB | |
||
| 202 | 1002832-00 | 1 | MOTOR COVER | GB | |
||
| 203 | 5170024-72 | 1 | CAP | GB | |
||
| 204 | 6010353-90 | 1 | LID SA | GB | |||
| 205 | 6010023-02 | 1 | CONTROLLER | AUTO TEMPERATURE CON | GB | |
|
| 206 | 1002835-00 | 1 | CHASSIS | GB | |
||
| 207 | 1004710-66 | 2 | HOSE | Detergent | GB | |
|
| 208 | 1004758-17 | 1 | BRACKET | GB | |
||
| 210 | 1002854-00 | 1 | SCREW | GB | |
||
| 220 | AR14RP-11 | 1 | REGULATOR | GB | |
||
| 221 | MB90TL-117-BK | 1 | LOCK | GB | |
||
| 223 | 6010023-01 | 4 | SOLE PLATE | 230V | GB | ||
| 224 | 6010392-21 | 1 | WHISK | GB | |||
| 225 | 323711-27 | 1 | O RING | 2.5 x 1.3 | GB | |
|
| 226 | AS775-27 | 1 | PLATE | GB | |
||
| 227 | 5170024-64 | 1 | BLOCK | GB | |
||
| 228 | AH2010-10 | 1 | SLEEVE | GB | |
||
| 229 | 596915-00 | 1 | CIRCLIP | 42mm | GB | |
|
| 230 | 1004747-19 | 1 | REGULATOR | GB | |
||
| 240 | AWM114-12 | 1 | CAM | GB | |||
| 250 | 1003452-00 | 1 | SPEED REGULATOR | GB | |||
| 251 | 5170016-72 | 1 | SEAL | GB | |
||
| 252 | AWM114-12 | 1 | CAM | GB | |||
| 252 | 1002057-00 | 1 | STOP RUBBER | GB | |
||
| 253 | 597547-00 | 1 | SCREW | M4 x 8mm | GB | |
|
| 254 | 597813-00 | 1 | SCREW | GB | |
||
| 255 | 5170025-03 | 1 | DISC | GB | |
||
| 256 | 1004753-63 | 1 | BASE PLATE | GB | |
||
| 257 | 596919-00 | 1 | BLADE BOLT | GB | |
||
| 260 | AR176RP-39 | 1 | SHAFT | GB | |
||
| 261 | 577139-00 | 1 | SEAL | GB | |
||
| 262 | MBK8533 | 1 | KEY | GB | |
||
| 263 | 1004771-32 | 1 | VALVE | GB | |
||
| 264 | SCMT059731 | 1 | LINER | GB | |||
| 265 | N149246 | 1 | TUBE PLASTIC | M CLASS | GB | |
|
| 266 | 1002850-00 | 1 | WASHER | GB | |
||
| 801 | 6010394-92 | 1 | FLOAT | GB | |||
| 821 | 30Y201239 | 1 | VALVE | GB | |||
| 826 | 31D100027 | 1 | ANVIL | GB | |
||
| 836 | 1006620-00 | 1 | BATTERY 9.6V - 1.3AH - 12.48WH | GB | |
||
| 836 | 1007818-00 | 1 | SPINDLE SA | GB | |
||
| 837 | N081352 | 1 | LEVER SA | GB | |
||
| 838 | 330072-60 | 1 | CORDSET | GB | |
||
| 840 | 492826-00 | 1 | COLLAR | GB | |
||
| 847 | 1004561-06 | 1 | NUT | GB | |||
| 861 | 1002045-00 | 1 | SPRING | GB | |
