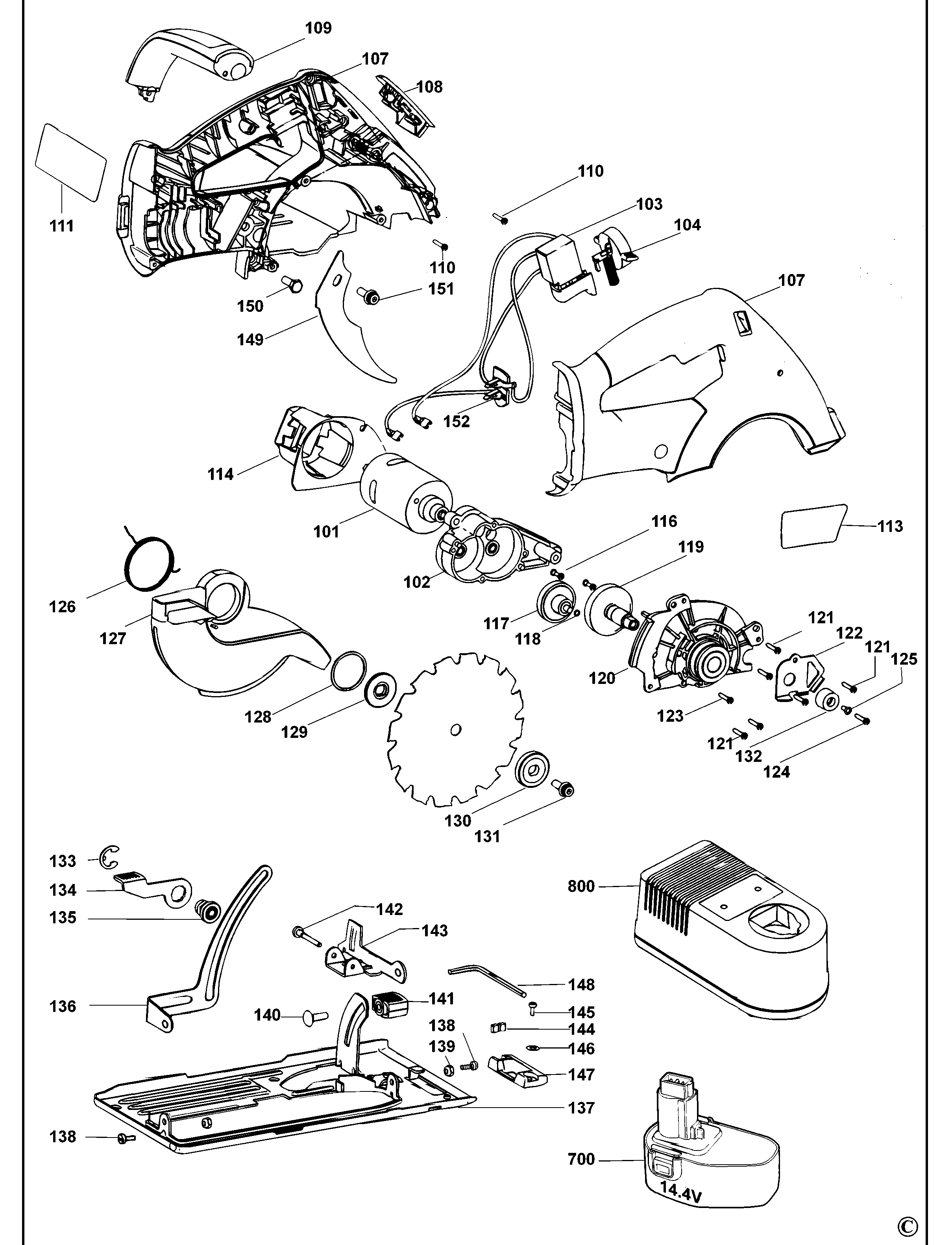

KC1440 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 497546-00 | 1 | MOTOR & PINION | 14.4V | GB |  |
|
| 102 | 5106906-00 | 1 | MOUNT SA | GB | |
||
| 103 | 497515-00 | 1 | SWITCH & LEAD SA | GB | |
||
| 104 | 499022-00 | 1 | ACTUATOR | GB | |
||
| 107 | 499023-00 | 1 | CLAMSHELL SA | GB | |
||
| 108 | 498693-00 | 1 | SHROUD | GB | |
||
| 109 | 497492-00 | 1 | HANDLE SA | GB | |
||
| 110 | 486563-00 | 2 | SCREW | GB |  |
||
| 111 | 498587-00 | 1 | RATING PLATE | GB | |
||
| 113 | 498586-00 | 1 | LABEL | GB | |
||
| 114 | 497549-00 | 1 | BAFFLE | GB | |
||
| 116 | 498154-00 | 2 | SCREW | GB | |
||
| 117 | 497535-00 | 1 | INTERGEAR SA | GB | |
||
| 118 | 498174-00 | 1 | WASHER | GB | |
||
| 119 | 497532-00 | 1 | SPINDLE & GEAR SA | GB | |
||
| 120 | 497527-00 | 1 | GEARCASE COVER | GB | |
||
| 121 | 497495-00 | 10 | SCREW | GB | |
||
| 122 | 498507-00 | 1 | PLATE | GB | |
||
| 123 | 497526-00 | 4 | SCREW | GB | |
||
| 124 | 498156-00 | 1 | SCREW | GB | |
||
| 125 | 497577-00 | 1 | EYELET | GB | |
||
| 126 | 497481-02 | 1 | SPRING | GB | |
||
| 127 | 498504-00 | 1 | GUARD | GB | |
||
| 128 | 497479-00 | 1 | RETAINER | GB | |
||
| 129 | 497478-00 | 1 | WASHER | GB | |
||
| 130 | 497477-00 | 1 | WASHER OUTER CLAMP | GB | |
||
| 131 | 497476-00 | 2 | BLADE BOLT | GB | |
||
| 132 | 497524-00 | 2 | RUBBER | GB | |
||
| 133 | 497575-00 | 1 | CLIP | GB | |
||
| 134 | 497576-00 | 1 | LEVER | GB | |
||
| 135 | 497898-00 | 1 | NUT | GB | |
||
| 136 | 498506-00 | 1 | BRACKET | GB | |
||
| 137 | 498505-00 | 1 | SHOE SA | GB | |
||
| 138 | 497556-00 | 2 | BOLT | GB | |
||
| 139 | 497557-00 | 2 | NUT | GB | |
||
| 140 | 497558-00 | 1 | BOLT | GB | |
||
| 141 | 497915-00 | 1 | KNOB SA | GB | |
||
| 142 | 497486-01 | 1 | PIN | GB | |
||
| 143 | 497559-00 | 1 | BRACKET | GB | |
||
| 144 | 497583-00 | 1 | RUBBER | GB | |
||
| 145 | 497551-02 | 1 | SCREW | GB | |
||
| 146 | 498513-00 | 1 | WASHER | GB | |
||
| 147 | 497552-00 | 1 | INDICATOR | GB | |
||
| 148 | 497570-02 | 1 | KEY | 4mm | GB | |
|
| 149 | 498508-00 | 1 | RIVING KNIFE | GB | |
||
| 150 | 497485-00 | 1 | BOLT | GB | |
||
| 152 | 497905-00 | 1 | TERMINAL | GB | |
||
| 700 | 419427-05 | 1 | BATTERY 14.4V - 1.2AH | NiCd - A9276 | GB | |
|
| 700 | 497033-03 | 1 | BATTERY 14.4V - 1.5AH - 21.6WH | NiCd - A9276 | GB | |
|
| 800 | 486910-16 | 1 | CHARGER | 14.4 Volt - 1 Hour | GB | |
