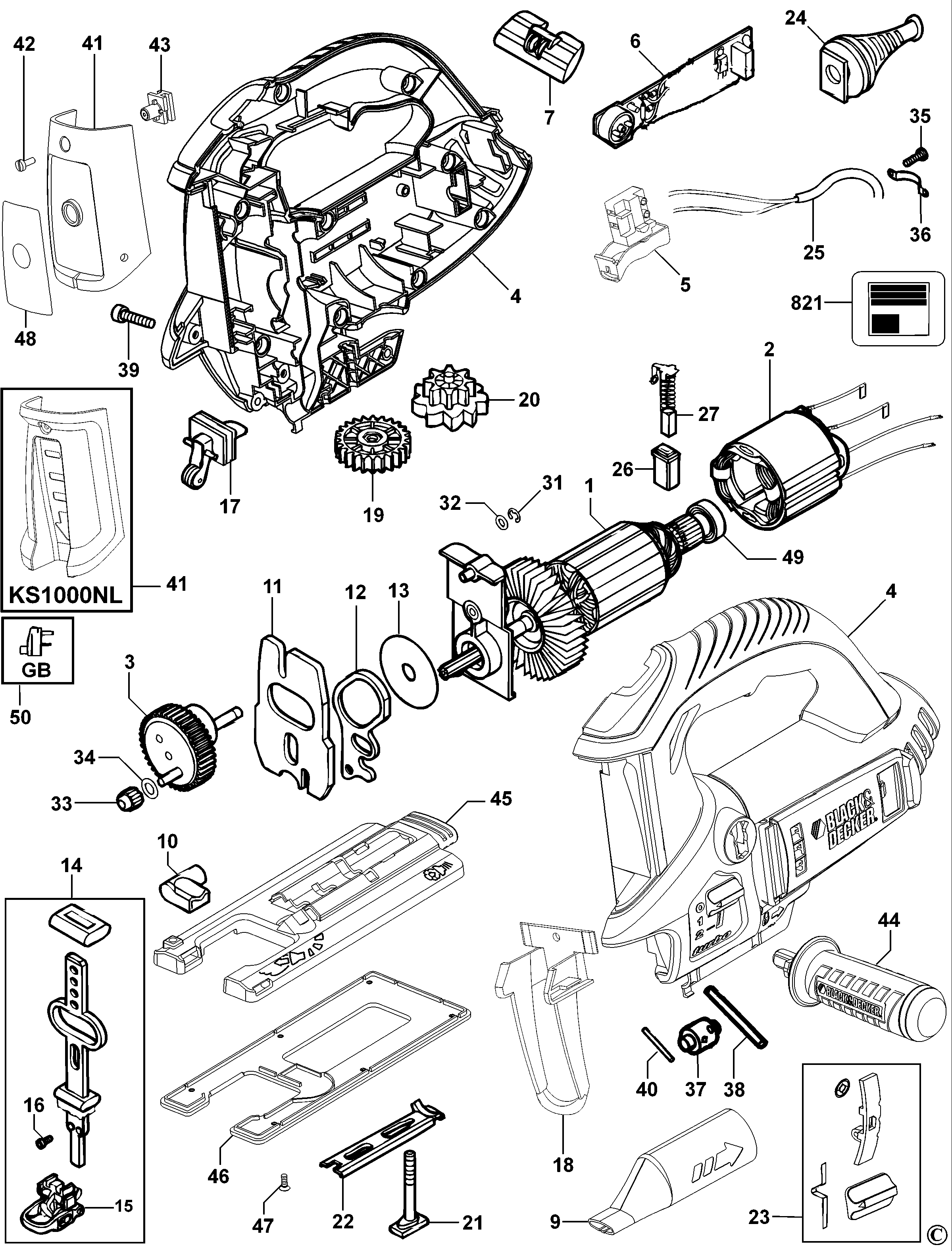

KS1000E JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90501955 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 90501957 | 1 | FIELD 230V | GB | |
||
| 3 | 583821-00 | 1 | GEAR SA | GB | |
||
| 4 | 90502493 | 1 | CLAMSHELL | GB | |
||
| 5 | 90500734 | 1 | SWITCH | GB | |
||
| 6 | 90501936 | 1 | PCB 230V | GB | |
||
| 7 | 582606-00 | 1 | BUTTON LOCK-ON | GB | |
||
| 9 | 90501915 | 1 | VACUUM ADAPTOR | GB |  |
||
| 10 | 582732-00 | 1 | ELBOW TUBE | GB | |
||
| 11 | 583011-00 | 1 | BALANCE WEIGHT | GB | |
||
| 12 | 583002-00 | 1 | FORK | GB | |
||
| 13 | 795648 | 1 | WASHER | GB | |
||
| 14 | 583822-00 | 1 | SHAFT SA | GB | |
||
| 15 | 582593-00 | 1 | BLADE CLAMP | GB | |
||
| 16 | 583173-00 | 2 | SCREW | GB | |
||
| 17 | 585414-00 | 1 | BLADE SUPPORT SA | GB | |
||
| 18 | 90500735 | 1 | GUARD | GB | |
||
| 19 | 582768-00 | 1 | GEAR SA | GB | |
||
| 20 | 582601-00 | 1 | ACTUATOR | GB | |
||
| 21 | 582600-00 | 1 | LOCKING SCREW | GB | |
||
| 22 | 582730-00 | 1 | BRACKET | GB | |
||
| 23 | 90505148 | 1 | SELECTOR SA | GB | |
||
| 24 | 582722-00 | 1 | CORD PROTECTOR | GB | |
||
| 25 | 330080-03 | 1 | CORDSET | GB | |
||
| 26 | 582696-00 | 2 | BRUSHBOX | GB | |
||
| 27 | 582761-02 | 2 | BRUSH & SPRING | 230V | GB | |
|
| 31 | 571181-00 | 1 | CLIP | GB | |
||
| 32 | 582717-00 | 1 | WASHER | GB | |
||
| 33 | 795688-00 | 1 | ROLLER | GB | |
||
| 34 | 823954 | 1 | WASHER | GB | |
||
| 35 | 370748 | 2 | SCREW | GB | |
||
| 36 | 821070 | 1 | CORD CLAMP | GB | |
||
| 37 | 582925-00 | 1 | SELECTOR | GB | |
||
| 38 | 795675 | 1 | ROD | GB | |
||
| 39 | 809961 | 9 | SCREW | GB | |
||
| 40 | 795650 | 1 | PIN | GB | |
||
| 41 | 90501946 | 1 | LASER | GB | |
||
| 42 | 489427-00 | 1 | SCREW | M3 x 8mm | GB | |
|
| 43 | 489246-00 | 1 | INSERT | GB | |
||
| 44 | 90501959 | 1 | SIDE HANDLE | GB | |
||
| 45 | 90501913 | 1 | SHOE | GB | |
||
| 46 | 90501914 | 1 | SOLE PLATE | GB | |
||
| 47 | 90502260 | 6 | SCREW | M3 x 6mm Csk | GB | |
|
| 48 | 90501330 | 1 | LABEL | GB | |
||
| 49 | 574853-08 | 1 | BEARING | GB | |
||
| 50 | 588384-00 | 1 | ADAPTOR SA | GB | |
||
| 821 | 90556674 | 1 | RATING PLATE | GB | |
